Xerox VersaLink B7030 Service Manual

April 2017
8-16
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
Launch Issue
Product Technical Overview
APS Sensors
DADF APS sensors 1, 2 and 3 detect the document width in the cross process direction, PL
5.50 Item 8. These sensors monitor the document width (cross process direction) as the docu
-
ments passes along the document path. They allow multiple sized documents to be processed
in a single job. Refer to Figure 5
NOTE: The APS sensors should not be confused with the tray APS sensors. Refer to Tray
APS Sensors and Size Sensors.

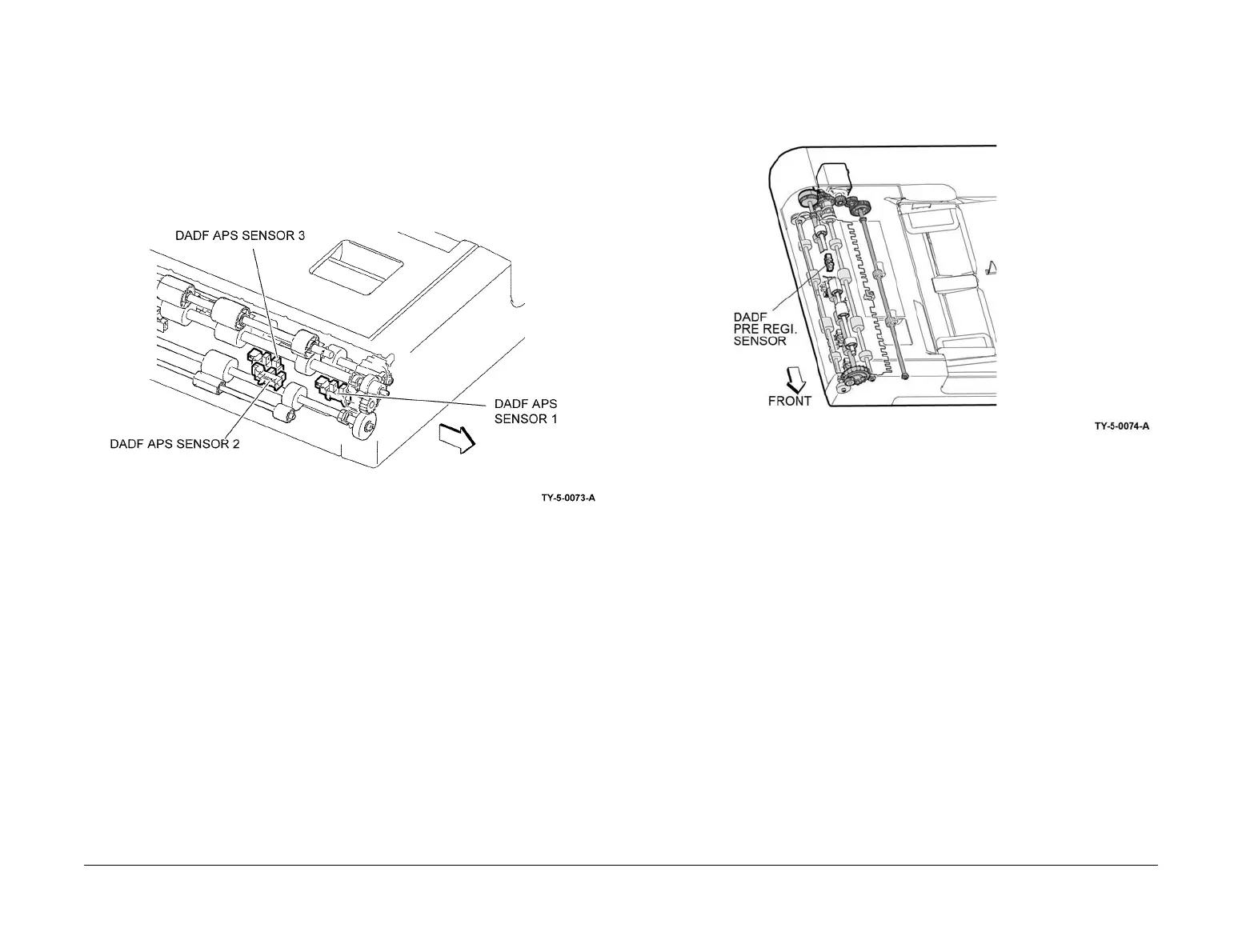

Figure 5 DADF APS sensors
Pre Registration Sensor
The DADF pre-registration sensor, PL 5.70 Item 3, is installed immediately before the take-
away roll. It detects that the preceding sheet has left the takeaway roll. Refer to Figure 6.
Figure 6 Pre-registration sensor
