Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
Product Technical Overview
Launch Issue
Registration Sensor and Invert Sensor
The DADF registration sensor is installed before the registration roll. It detects that the preced-
ing sheet has left the registration roll, triggering the pre-registration of the next.
The registration sensor and the pre-registration sensor provide jam detection as the document
feeds through the document path.
The DADF invert sensor is installed immediately after the out roll. It detects the ejection of a
sheet and provides timing data for two sided jobs. Refer to Figure 7.

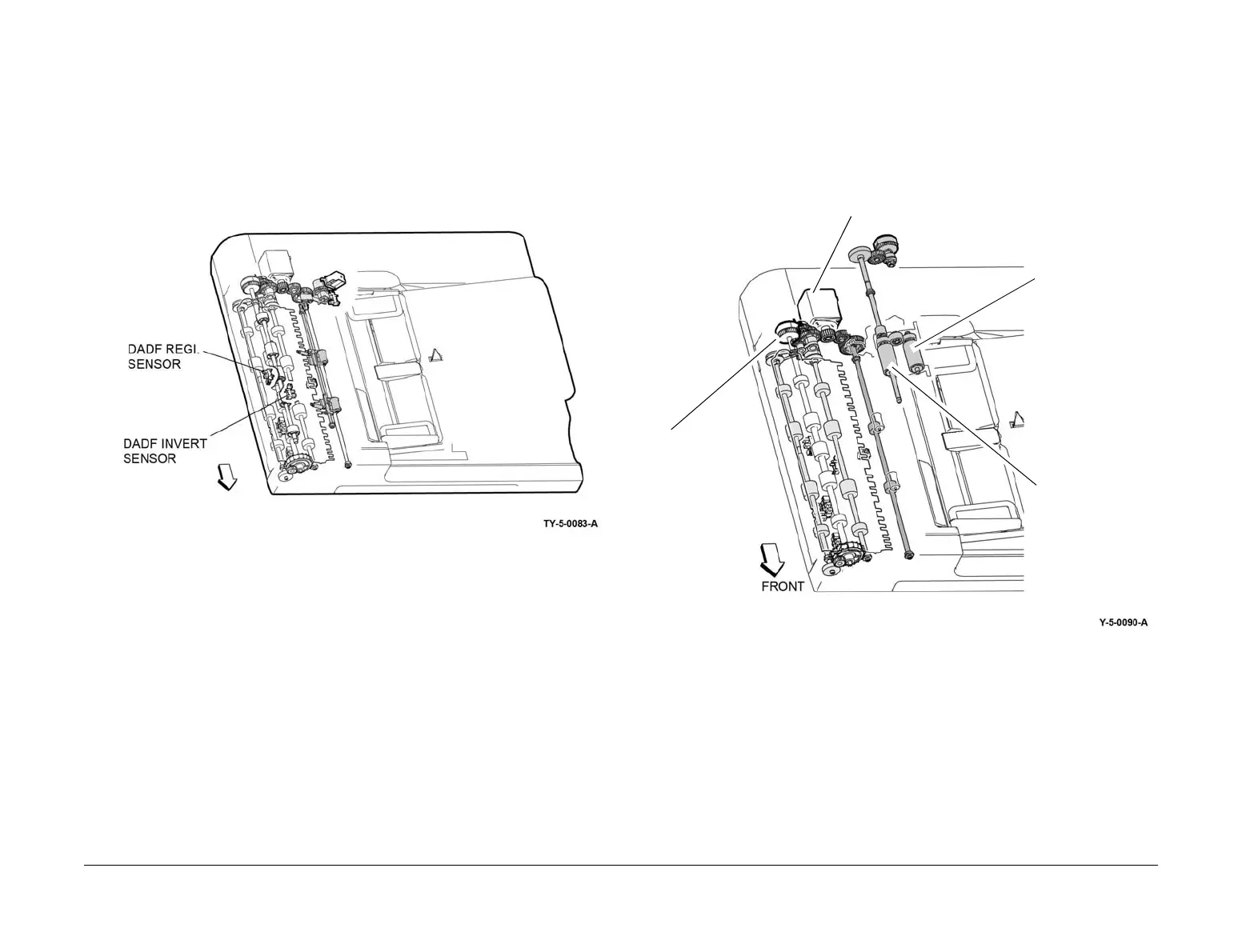

Figure 7 Registration sensor and invert sensor
Feed Motor, Nudger Roll, Feed Roll and Takeaway Roll
The DADF feed motor is a stepping motor that rotates the nudger roll and feed roll in the
reverse (CCW) direction. It also rotates the takeaway roll in the normal (CW) direction. The
takeaway roll stops when this motor rotates in the reverse direction.
The feed roll and the takeaway roll are driven through clutches that are controlled by the DADF
PWB, PL 5.10 Item 11. Refer to Figure 8.
Figure 8 Document feed mechanism
Takeaway clutch
and takeaway roll
Feed roll
Nudger roll
DADF feed motor

Xerox VersaLink B7030 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	1200 x 1200 dpi
Copy Speed	Up to 30 cpm
Copy Resolution	600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Fax Speed	33.6 kbps
Duplex Printing	Automatic
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-in for Android, Mopria
Control Panel	7-inch color touchscreen
Memory	2 GB
Print Speed	30 ppm
Supported Media Sizes	A4, A5, A6, B5, B6, Letter, Legal, Executive
Connectivity	USB, Ethernet, Wi-Fi
Processor	1 GHz
Scan Speed	Up to 55 ipm
