DADF PWB
The DADF PWB, Figure 9, controls the following:
• DADF feed motor, PL 5.30 Item 3.
• DADF feed clutch, PL 5.35 Item 2.
• Takeaway clutch, PL 5.35 Item 2.
• Exit nip release solenoid, PL 5.35 Item 8.

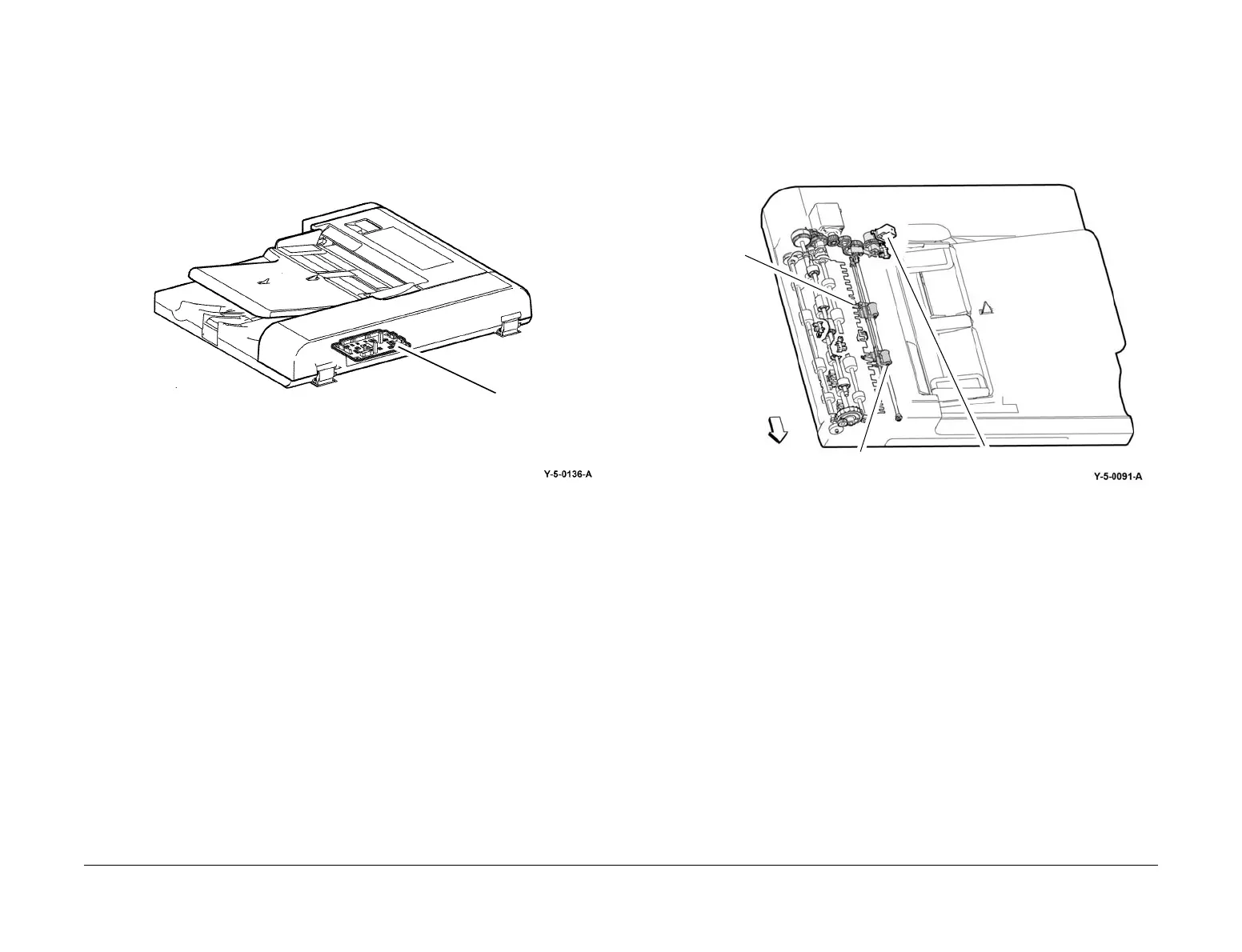

Figure 9 DADF PWB
Exit Nip Release Solenoid
The exit nip release solenoid releases the nip on the exit roll, PL 5.50 Item 3, and exit pinch
roll, PL 5.65 Item 13. The exit nip solenoid is normally off and the exit roll and pinch roll are
nipped. Springs, PL 5.65 Item 18, hold the pinch rolls against the exit roll when the 2 rolls are
nipped. When the solenoid is activated the exit roll and exit pinch roll are released. The exit roll
is drivel directly by the feed motor. Refer to Figure 10.
Figure 10 Exit roll and nip release solenoid
DADF PWB
Exit roll
Exit pinch roll
Exit nip release solenoid

Xerox VersaLink B7030 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	1200 x 1200 dpi
Copy Speed	Up to 30 cpm
Copy Resolution	600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Fax Speed	33.6 kbps
Duplex Printing	Automatic
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-in for Android, Mopria
Control Panel	7-inch color touchscreen
Memory	2 GB
Print Speed	30 ppm
Supported Media Sizes	A4, A5, A6, B5, B6, Letter, Legal, Executive
Connectivity	USB, Ethernet, Wi-Fi
Processor	1 GHz
Scan Speed	Up to 55 ipm
