Xerox VersaLink B7030 Service Manual

April 2017
8-20
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
Launch Issue
Product Technical Overview
The full rate carriage moves the LED exposure lamp to scan the complete document on the
document glass.
The IIT scan motor, PL 60.30 Item 5 drives the full and half rate carriages via cables and pul-
leys. The carriage motor is a stepper motor that precisely controls the movement of the scan
carriages beneath the document glass.
The IIT registration sensor, PL 60.30 Item 7 is used to establish the home position of the car-
riages so that the control logic knows their locations. Refer to Figure 2.

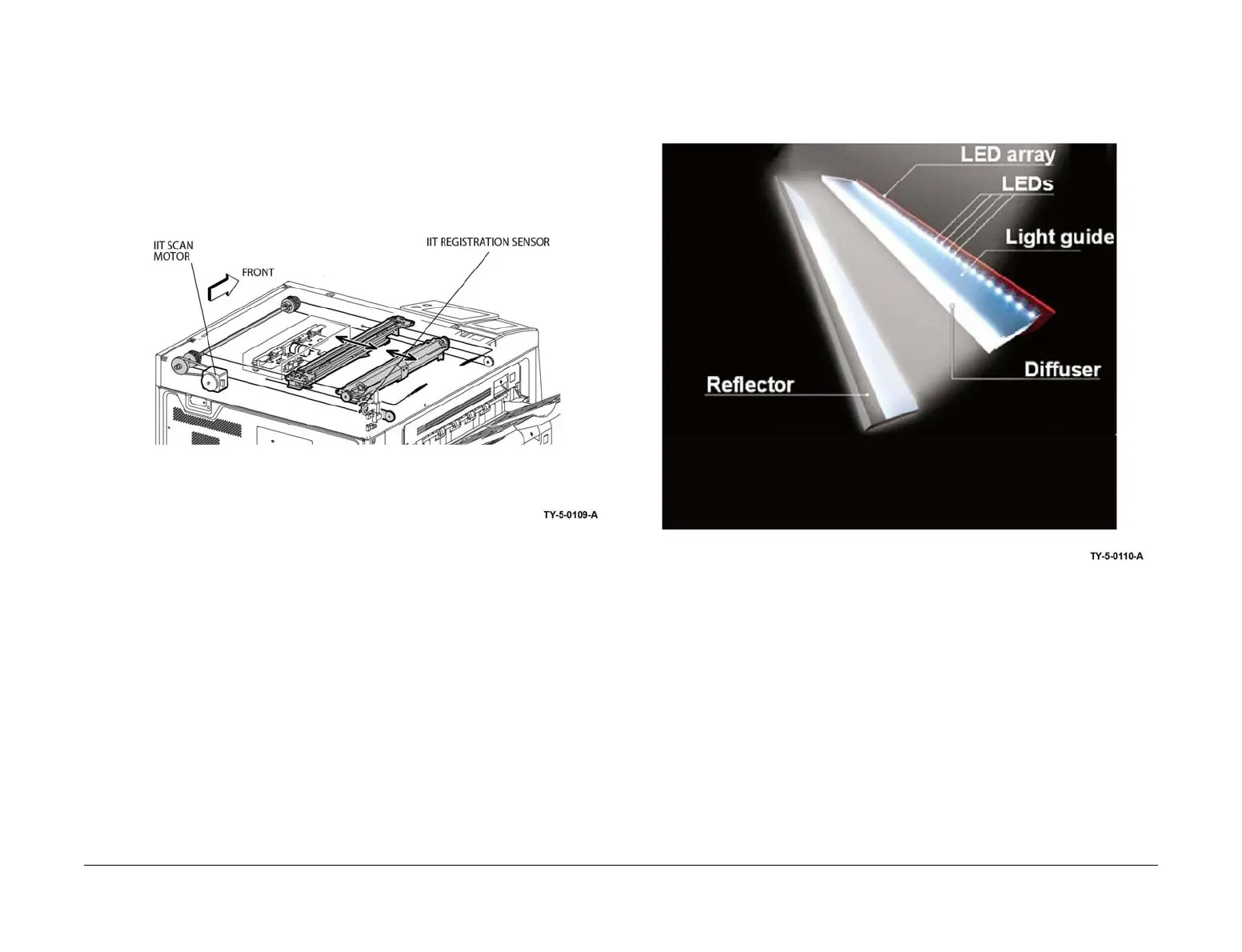

Figure 2 IIT scan motor and registration sensor
Light Guide Overview
The LED exposure lamp consists of a white LED array, a light guide, a diffuser, and a reflector.
Refer to Figure 3.
Figure 3 LED array

Xerox VersaLink B7030 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	1200 x 1200 dpi
Copy Speed	Up to 30 cpm
Copy Resolution	600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Fax Speed	33.6 kbps
Duplex Printing	Automatic
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-in for Android, Mopria
Control Panel	7-inch color touchscreen
Memory	2 GB
Print Speed	30 ppm
Supported Media Sizes	A4, A5, A6, B5, B6, Letter, Legal, Executive
Connectivity	USB, Ethernet, Wi-Fi
Processor	1 GHz
Scan Speed	Up to 55 ipm
