Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
Product Technical Overview
Launch Issue
The light guide and diffuser convert the light from the LED array into a uniform pattern that
closely parallels the output from a fluorescent lamp. Refer to Figure 4.
The benefits of this design include uniform and stable light output at lower energy cost,
reduced heat output, and faster start up.

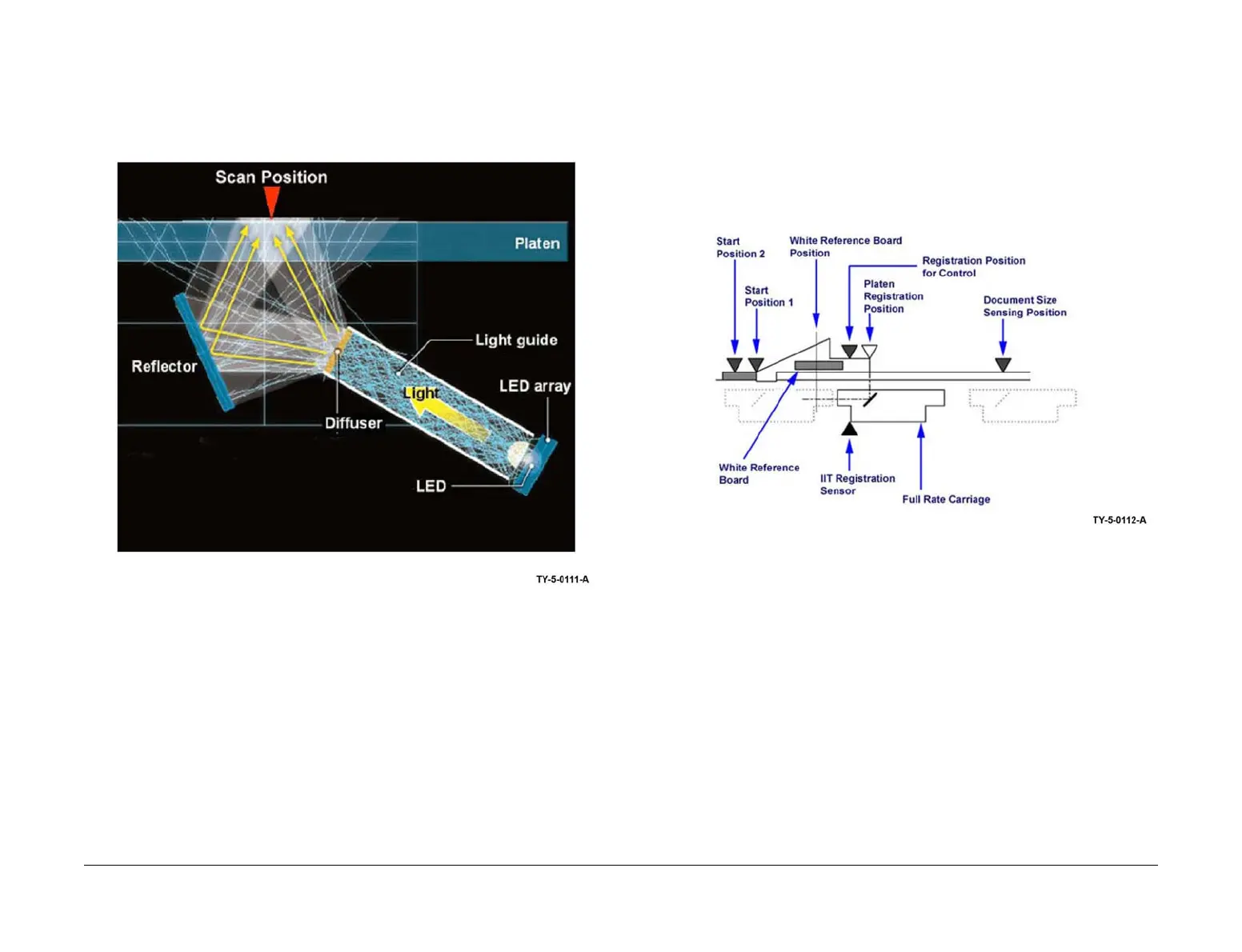

Figure 4 Light diffusion
Scanning Overview
When a document is scanned from the document glass, the scan cables that drive the full rate
and half rate carriages maintain a fixed length optical path between the document and CCD.
This is important for accurate size reproduction and focus.
The scan speed varies according to the reduction or enlargement ratio that has been selected.
A slow scan produces an enlarged image and a fast scan produces a small image. Electronic
processing is used to change the image size in the front- to-back (fast scan) direction when
reduction or enlargement is selected. Refer to Figure 5.
Figure 5 Scanning overview

Xerox VersaLink B7030 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	1200 x 1200 dpi
Copy Speed	Up to 30 cpm
Copy Resolution	600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Fax Speed	33.6 kbps
Duplex Printing	Automatic
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-in for Android, Mopria
Control Panel	7-inch color touchscreen
Memory	2 GB
Print Speed	30 ppm
Supported Media Sizes	A4, A5, A6, B5, B6, Letter, Legal, Executive
Connectivity	USB, Ethernet, Wi-Fi
Processor	1 GHz
Scan Speed	Up to 55 ipm
