DADF Scanning
In the DADF mode, the carriage is positioned under the constant velocity transport (CVT)
glass. The carriage remains stationary while the document is moved across the CVT glass by
the DADF.
The stationary half rate and full rate mirrors are used in the usual way to reflect the image
through the lens to the CCD.
In all copy modes, the document is only scanned once regardless of the number of copies
required. Refer to Figure 6.

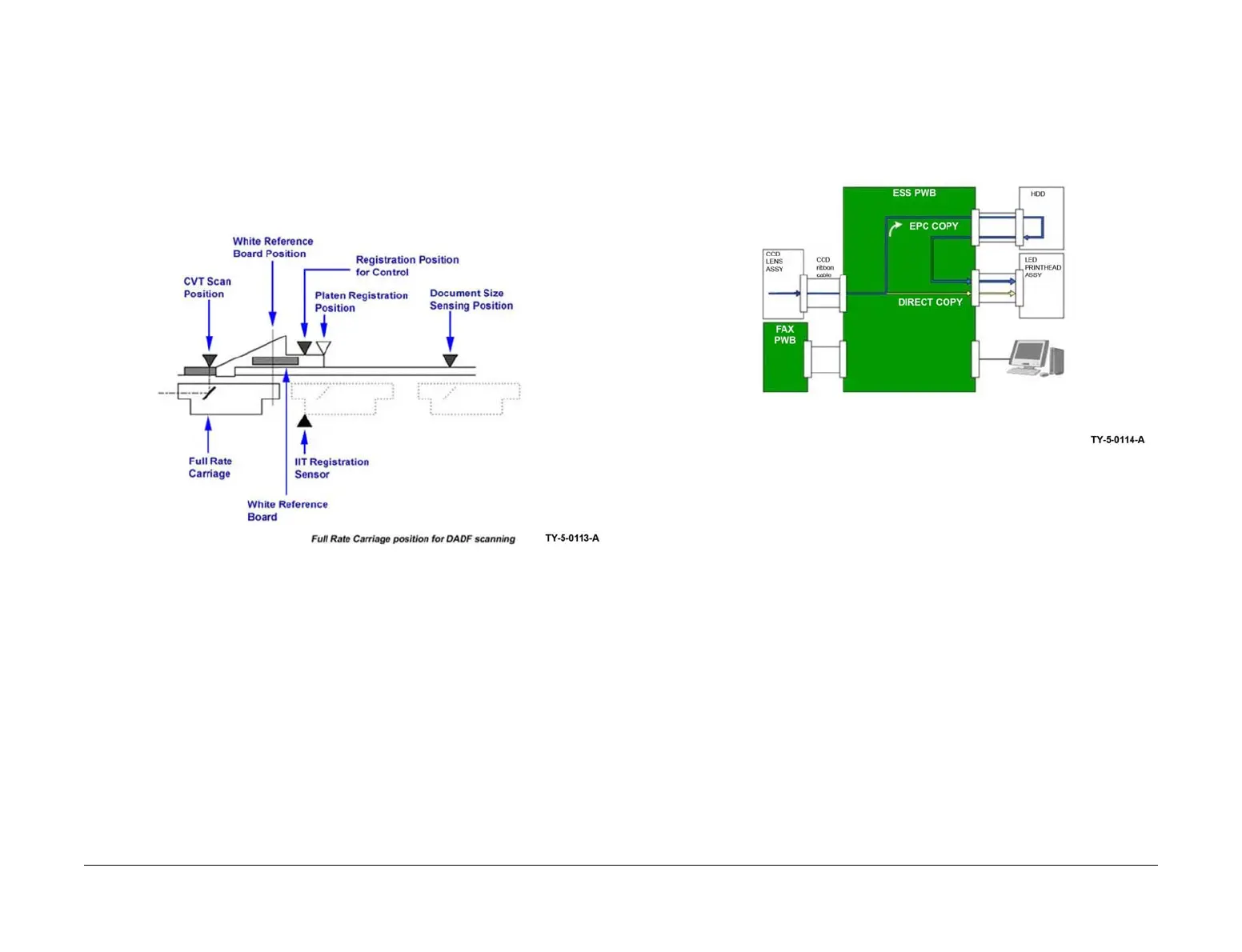

Figure 6 DADF scanning
Image Flow
The image data from the CCD image sensor are sent to the ESS PWB via the CCD ribbon
cable. Shading compensation and white and black correction are then applied to the image
data. Refer to Figure 7.
Figure 7 Image flow

Xerox VersaLink B7030 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	1200 x 1200 dpi
Copy Speed	Up to 30 cpm
Copy Resolution	600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Fax Speed	33.6 kbps
Duplex Printing	Automatic
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-in for Android, Mopria
Control Panel	7-inch color touchscreen
Memory	2 GB
Print Speed	30 ppm
Supported Media Sizes	A4, A5, A6, B5, B6, Letter, Legal, Executive
Connectivity	USB, Ethernet, Wi-Fi
Processor	1 GHz
Scan Speed	Up to 55 ipm
