Xerox VersaLink B7030 Service Manual

April 2017
8-48
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
Launch Issue
Product Technical Overview
Drum Cartridge (Power)
The high voltages required by the drum cartridge for charge and development are provided by
the high voltage power supply (HVPS), PL 1.10 Item 2, through two high voltage contacts on
the guide assembly that supports the cartridge. Refer to Figure 7, Figure 8 and Figure 9.

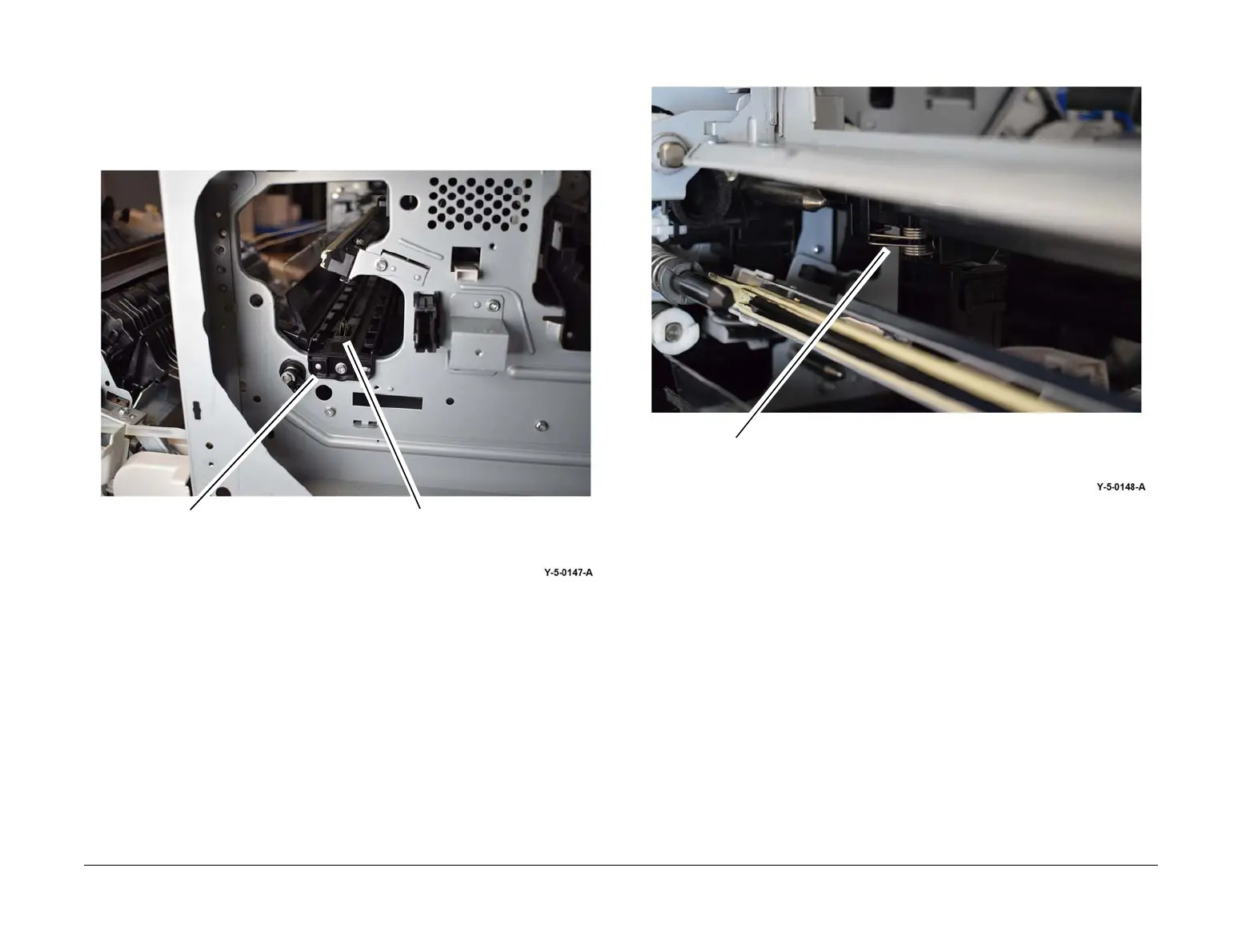

Figure 7 Drum cartridge guide electrical contacts
Figure 8 Drum cartridge guide electrical contacts
Developer bias high
voltage contact
Drum cartridge guide assem-
bly
BCR (charge) high
voltage contact

Xerox VersaLink B7030 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	1200 x 1200 dpi
Copy Speed	Up to 30 cpm
Copy Resolution	600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Fax Speed	33.6 kbps
Duplex Printing	Automatic
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-in for Android, Mopria
Control Panel	7-inch color touchscreen
Memory	2 GB
Print Speed	30 ppm
Supported Media Sizes	A4, A5, A6, B5, B6, Letter, Legal, Executive
Connectivity	USB, Ethernet, Wi-Fi
Processor	1 GHz
Scan Speed	Up to 55 ipm
