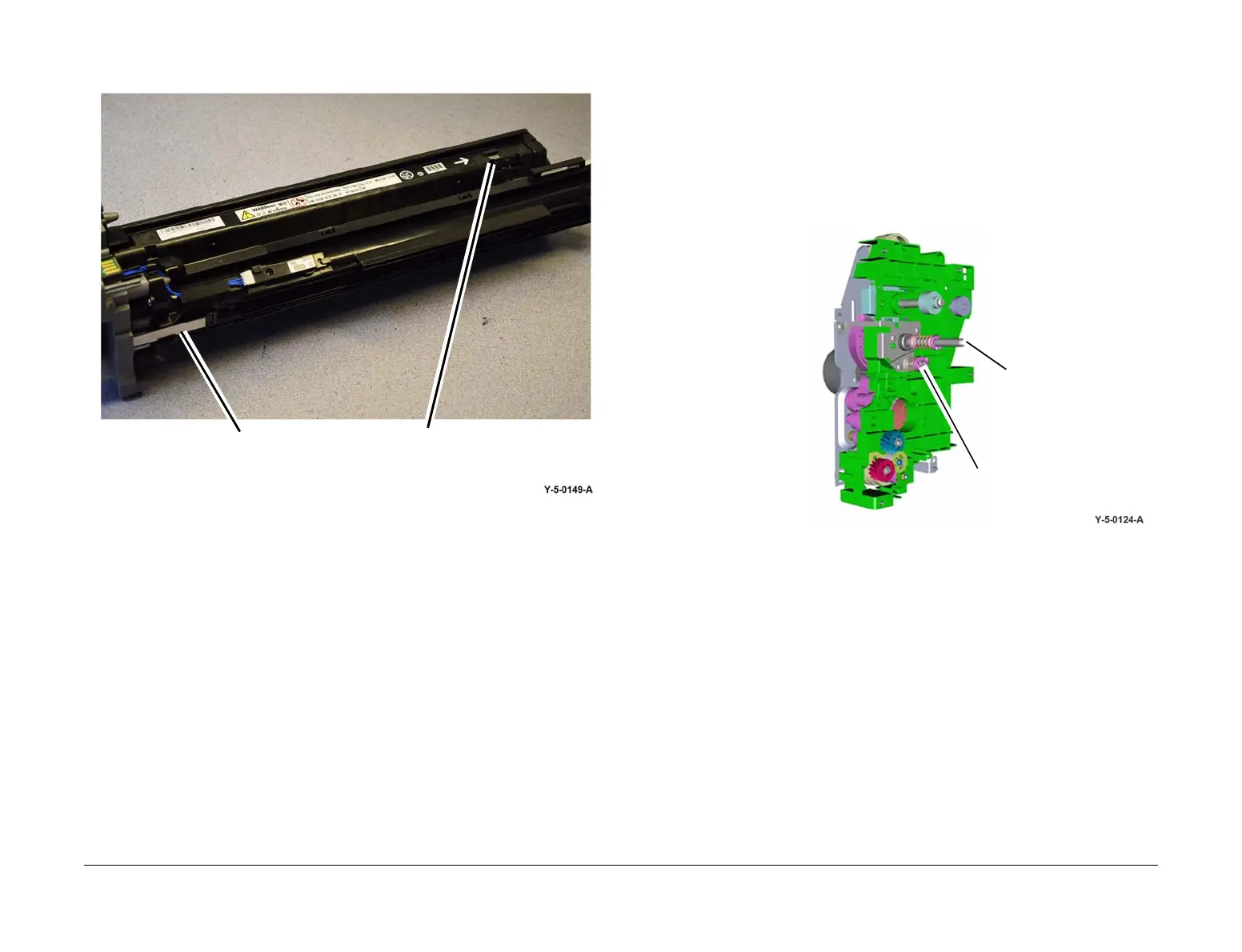

Figure 9 Drum cartridge electrical contacts
Drum Cartridge (Drive)
The mechanical drive for the photoreceptor drum and the developer roll is provided by the
drive assembly PL 40.05 Item 1. Drive to the assembly for the photoreceptor drum and devel
-
oper roll is provided by the drum motor, PL 40.10 Item 1, which is mounted next to the main
motor on the drive assembly.
The rotation of the photoreceptor drum drives the waste toner auger which returns used toner
to the drum cartridge housing. The rotation of the developer roll provides drive to the supply
auger. Refer to Figure 10.
Figure 10 Drum cartridge drive components
BCR (charge) high voltage
contact
Developer bias high voltage
contact
Drum drive coupling
Developer roll drive
coupling

Xerox VersaLink B7030 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	1200 x 1200 dpi
Copy Speed	Up to 30 cpm
Copy Resolution	600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Fax Speed	33.6 kbps
Duplex Printing	Automatic
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-in for Android, Mopria
Control Panel	7-inch color touchscreen
Memory	2 GB
Print Speed	30 ppm
Supported Media Sizes	A4, A5, A6, B5, B6, Letter, Legal, Executive
Connectivity	USB, Ethernet, Wi-Fi
Processor	1 GHz
Scan Speed	Up to 55 ipm
