Xerox VersaLink B7030 Service Manual

April 2017
8-51
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
Product Technical Overview
Launch Issue
Drum Cartridge (Develop)
Toner is supplied from the drum cartridge housing to the photoreceptor drum by the supply
augers and the developer roll. The rotation of the augers mixes the toner and carrier, producing
a negative charge on the toner.
The developer roll has a magnetic core which causes a brush to form at its surface. The height
of the brush is controlled by the trimmer blade. The brush contacts the photoreceptor drum and
the toner is attracted to the latent image formed by exposure to the LPH, that is, to the areas
that have a reduced negative charge.
A developer bias voltage that is applied to the developer roll controls the development process
and gives cleaner background areas. The developer bias voltage is modified based on the
user's selections on the UI. Darker images require a greater amount of negative charge to be
applied than lighter images. Refer to Figure 13 and Figure 14.

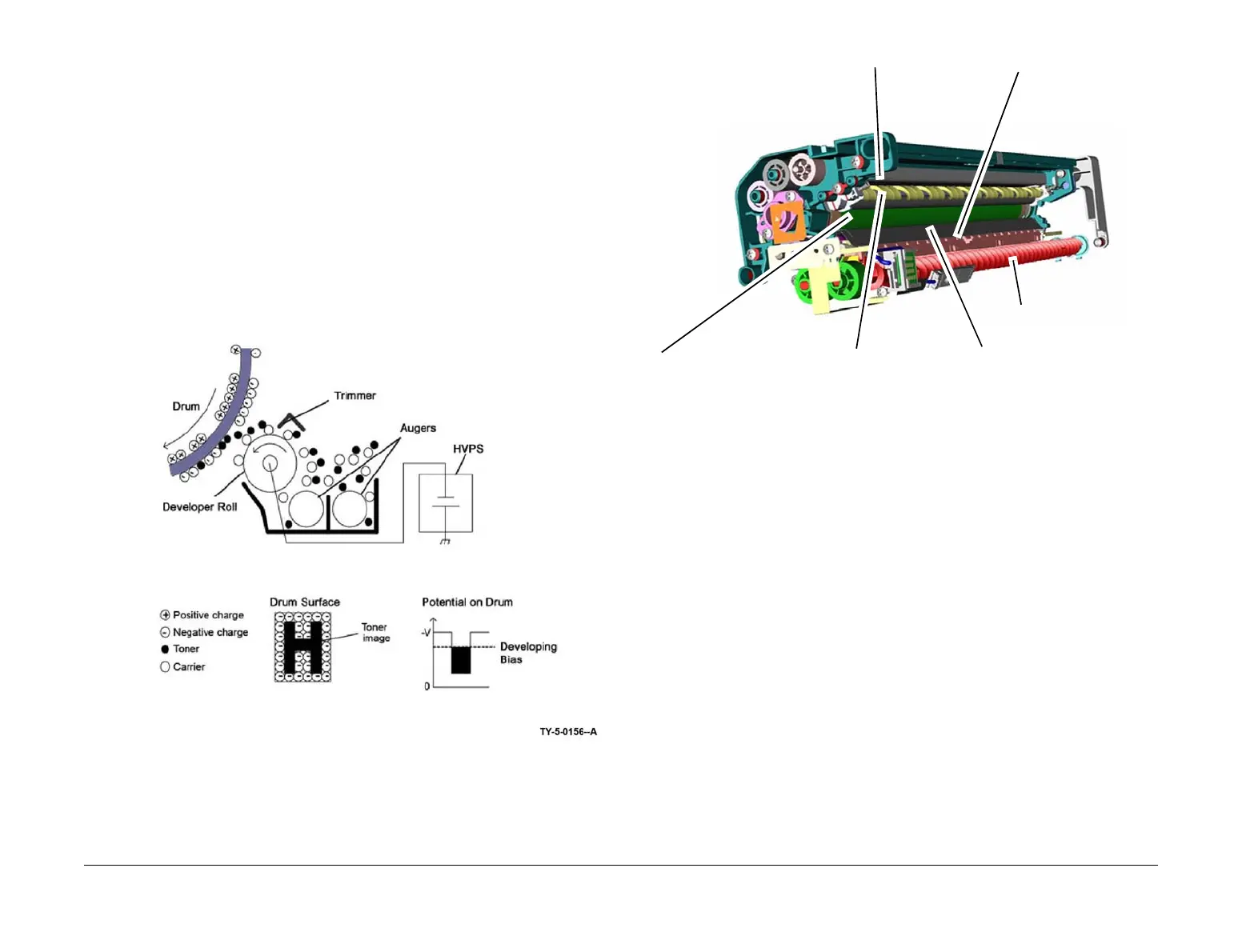

Figure 13 Drum cartridge development principle
Figure 14 Drum cartridge developer components
Photoreceptor Drum
BCR Cleaning
Auger
Bias charge roll
Supply
auger (hidden)
Mixing auger
Developer roll (hidden)

Xerox VersaLink B7030 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	1200 x 1200 dpi
Copy Speed	Up to 30 cpm
Copy Resolution	600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Fax Speed	33.6 kbps
Duplex Printing	Automatic
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-in for Android, Mopria
Control Panel	7-inch color touchscreen
Memory	2 GB
Print Speed	30 ppm
Supported Media Sizes	A4, A5, A6, B5, B6, Letter, Legal, Executive
Connectivity	USB, Ethernet, Wi-Fi
Processor	1 GHz
Scan Speed	Up to 55 ipm
