Xerox VersaLink B7030 Service Manual

April 2017
8-52
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
Launch Issue
Product Technical Overview
Transfer and Detack
The toner image is transferred from the photoreceptor drum to the surface of the paper by the
bias transfer roll (BTR). The BTR is constructed of a metal shaft surrounded by a soft, conduc
-
tive urethane roll which has a positive charge. As the photoreceptor and BTR rotate together,
the positive charge of the BTR attracts the negative charge of the toner.
The paper is released from the photoreceptor drum by the detack saw and stripper fingers. A
voltage is applied to the detack saw to eliminate the charge on the paper. In cases where the
paper is still attracted to the photoreceptor drum, the stripper fingers will physically strip the
paper from it. Refer to Figure 15 and Figure 16.
NOTE: The detack saw is part of the transfer chute assembly, PL 90.15 Item 1.

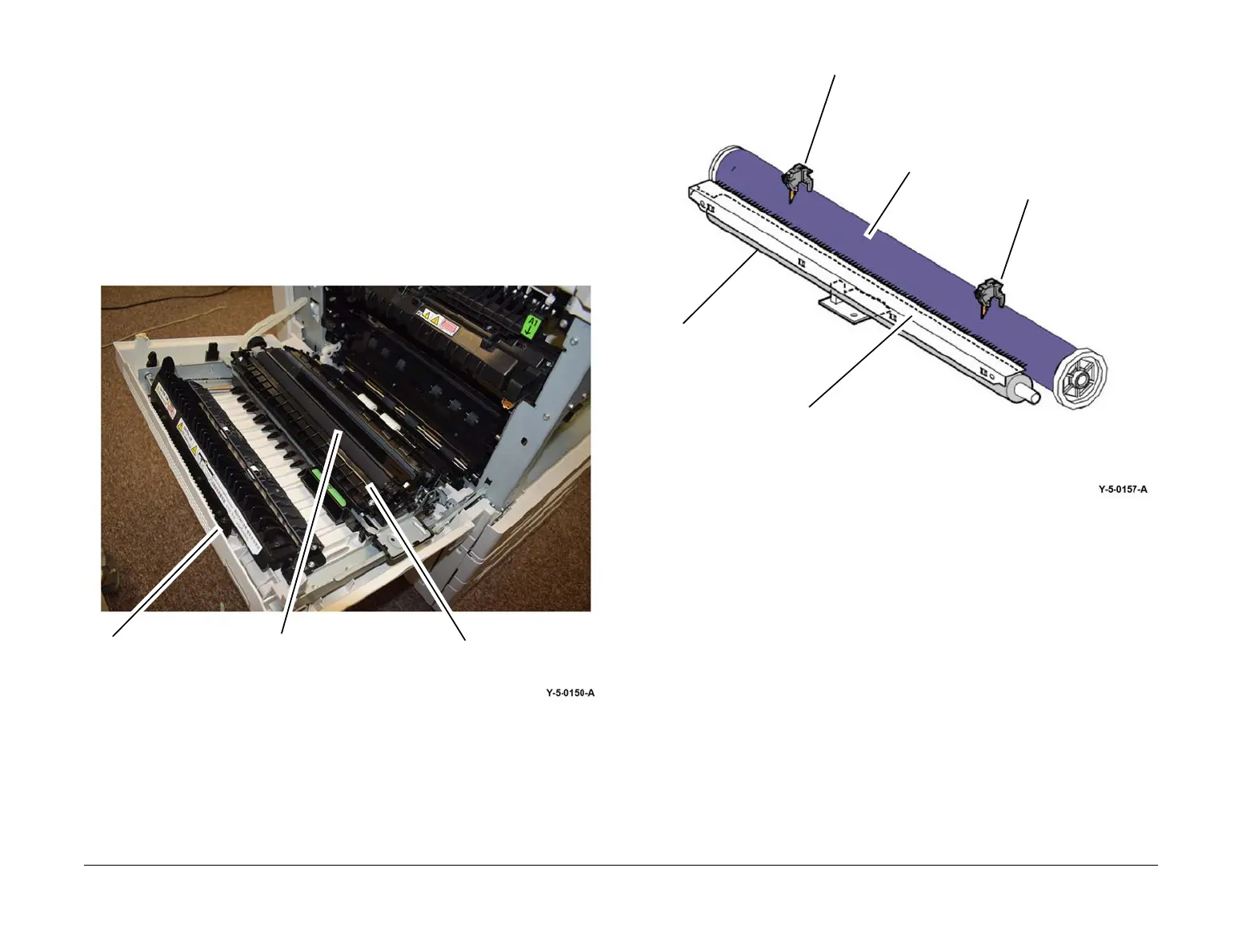

Figure 15 Bias transfer roll
Figure 16 BTR detack
Bias transfer roll
L/H cover
Detack saw
Stripper finger
Photoreceptor
Stripper finger
Detack saw
Bias transfer roll

Xerox VersaLink B7030 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	1200 x 1200 dpi
Copy Speed	Up to 30 cpm
Copy Resolution	600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Fax Speed	33.6 kbps
Duplex Printing	Automatic
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-in for Android, Mopria
Control Panel	7-inch color touchscreen
Memory	2 GB
Print Speed	30 ppm
Supported Media Sizes	A4, A5, A6, B5, B6, Letter, Legal, Executive
Connectivity	USB, Ethernet, Wi-Fi
Processor	1 GHz
Scan Speed	Up to 55 ipm
