Drum Cartridge (Clean)
As the photoreceptor drum and BCR rotate their surfaces are cleaned by the cleaning augers.
The auger strips used toner from the photoreceptor drum and BCR following transfer and
transports the used toner to a port at the rear of the drum cartridge for reuse.
A shutter adjacent to the used toner port retracts when the cartridge is installed. It is here that
fresh toner enters the cartridge. Refer to Figure 17 and Figure 18.

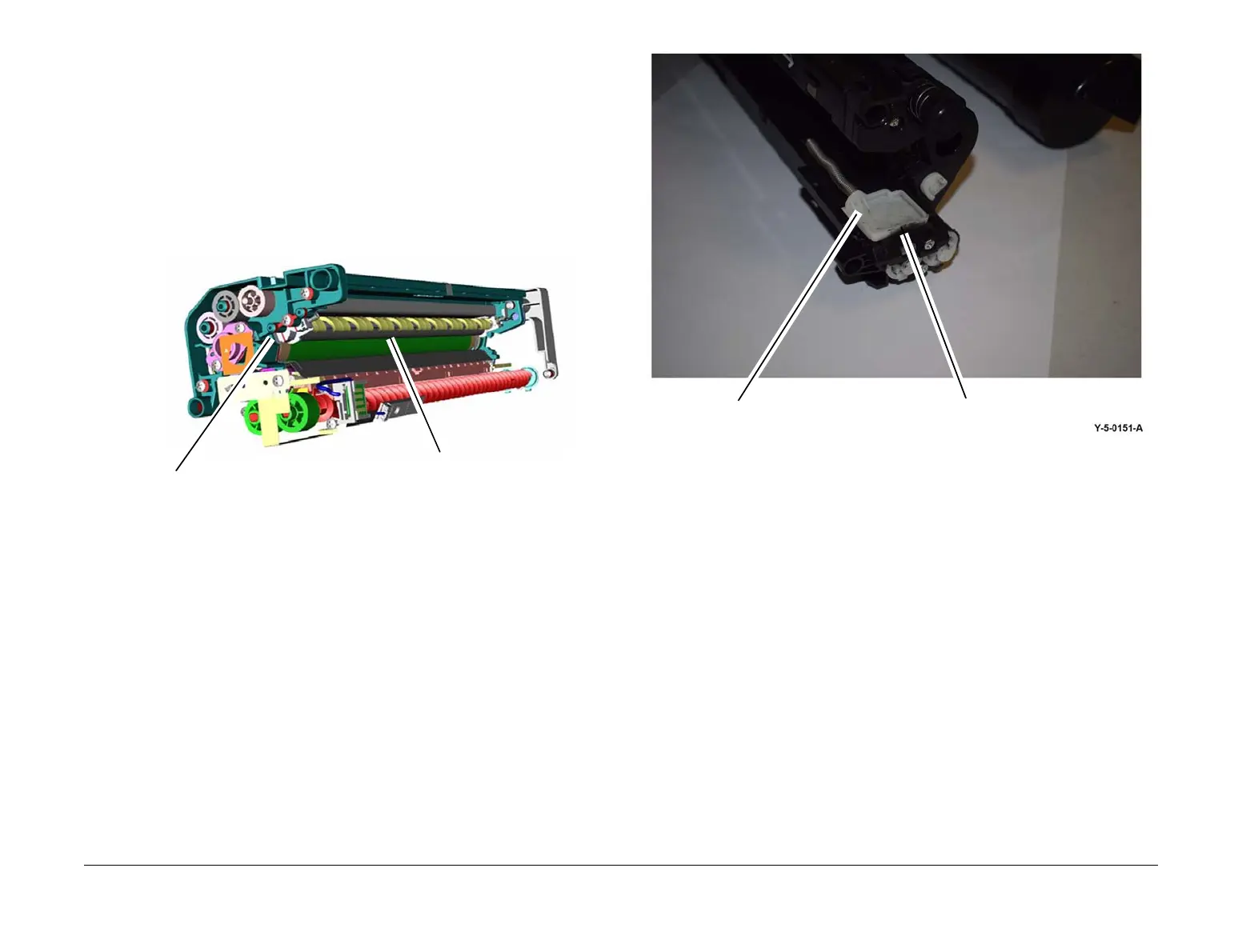

Figure 17 Photoreceptor drum and BCR cleaning
Figure 18 Used toner port and shutter
Process Control
Overview
Process control maintains image quality by compensating for temperature and humidity
changes and the aging of machine components. In part, this involves controlling the charge
potential of the BCR and the light output from the LPH. Image quality deterioration also occurs
as the photoconductive layer on the photoreceptor drum wears with increased use.
Process control uses inputs from the:
• CRUMs
• Humidity and temperature sensors
• Automatic toner control (ATC) sensor
The humidity and temperature sensors mounted on the ESS PWB, PL 3.05 Item 1 monitor the
environmental conditions inside the machine.
The ATC sensor (mounted to the drum cartridge, PL 90.20 Item 1) monitors the toner concen-
tration inside the drum cartridge.
Process control uses the information from the above sources to:
• Alter the BCR voltage as required
• Alter the LPH light intensity
• Control the toner dispense rate
BCR cleaning auger
Photoreceptor drum
cleaning auger (hidden)
Shutter
Used toner port
