Sensors
The movement of paper through the horizontal transport is monitored by the entrance sensor.
The entrance sensor is an optical sensor which is triggered when the light it emits is reflected
by the sheet of paper.
As paper is fed from exit 1 into the horizontal transport, the entrance sensor detects this.
If, after a preset amount of time, the entrance sensor does not de-actuate, this indicates a
paper jam and an error message is displayed on the UI. Refer to Figure 6.
NOTE: The internal components and operation of the horizontal transport shown at the right
are identical to the unit that installs on the Xerox® VersaLink® B7025/B7030/B7035 machines;
only the cover color is different.

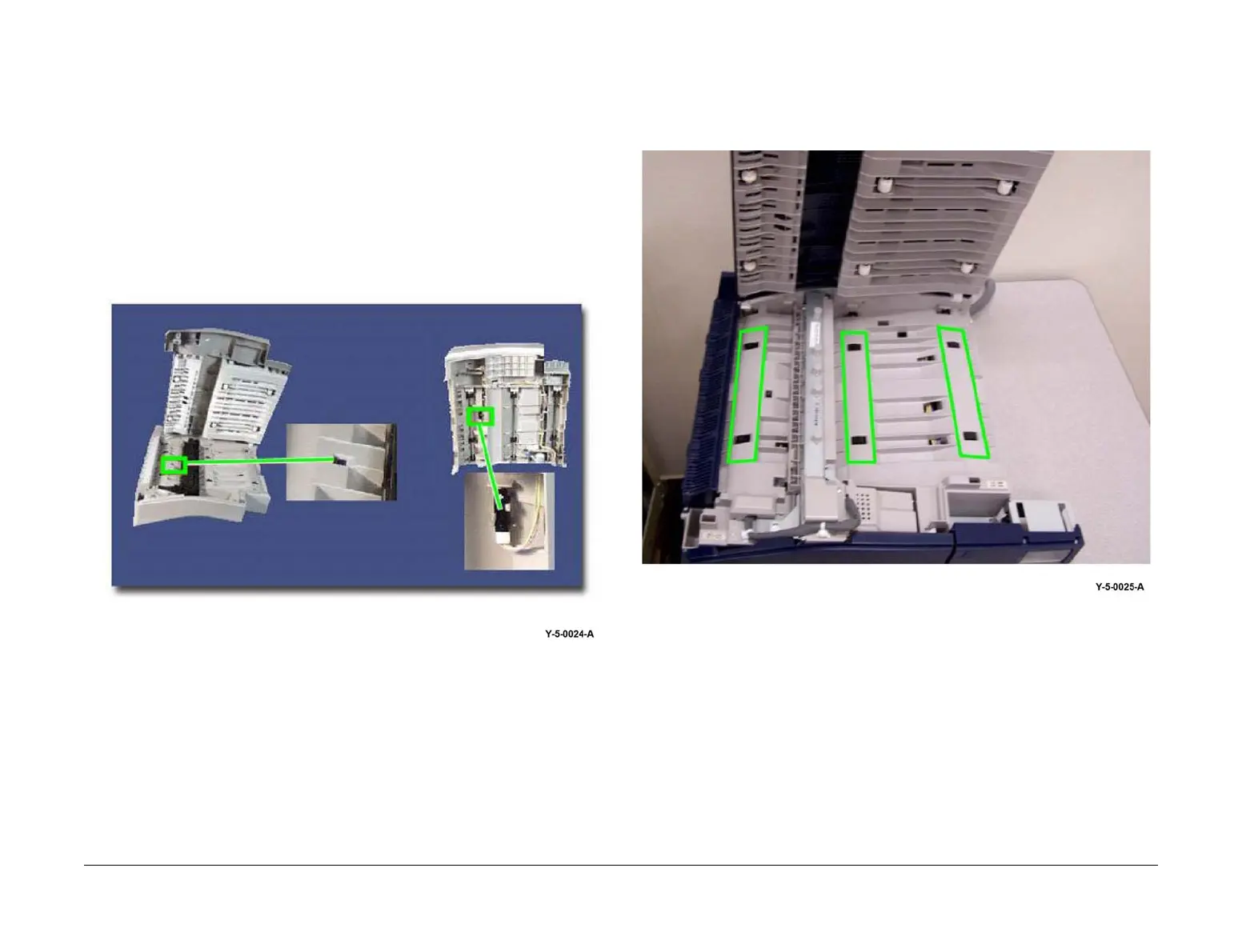

Figure 6 Entrance sensor
Rolls and Drives
The paper is moved through the horizontal transport assembly by three sets of transport rolls.
Drive is provided to the transport rolls by the transport motor through a system of gears and
belts. Refer to Figure 7.
Figure 7 Transport rolls
