Xerox VersaLink B7030 Service Manual

April 2017
8-80
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
Launch Issue
Product Technical Overview
Paper Feed
Drive
The sheets of paper are moved through the main section of the compiler by the entrance roll,
exit roll, paddle shaft assembly and sub-paddle assembly.
Drive is provided to these components by the transport motor and a system of gears and pul-
leys. Refer to Figure 15 and Figure 16.

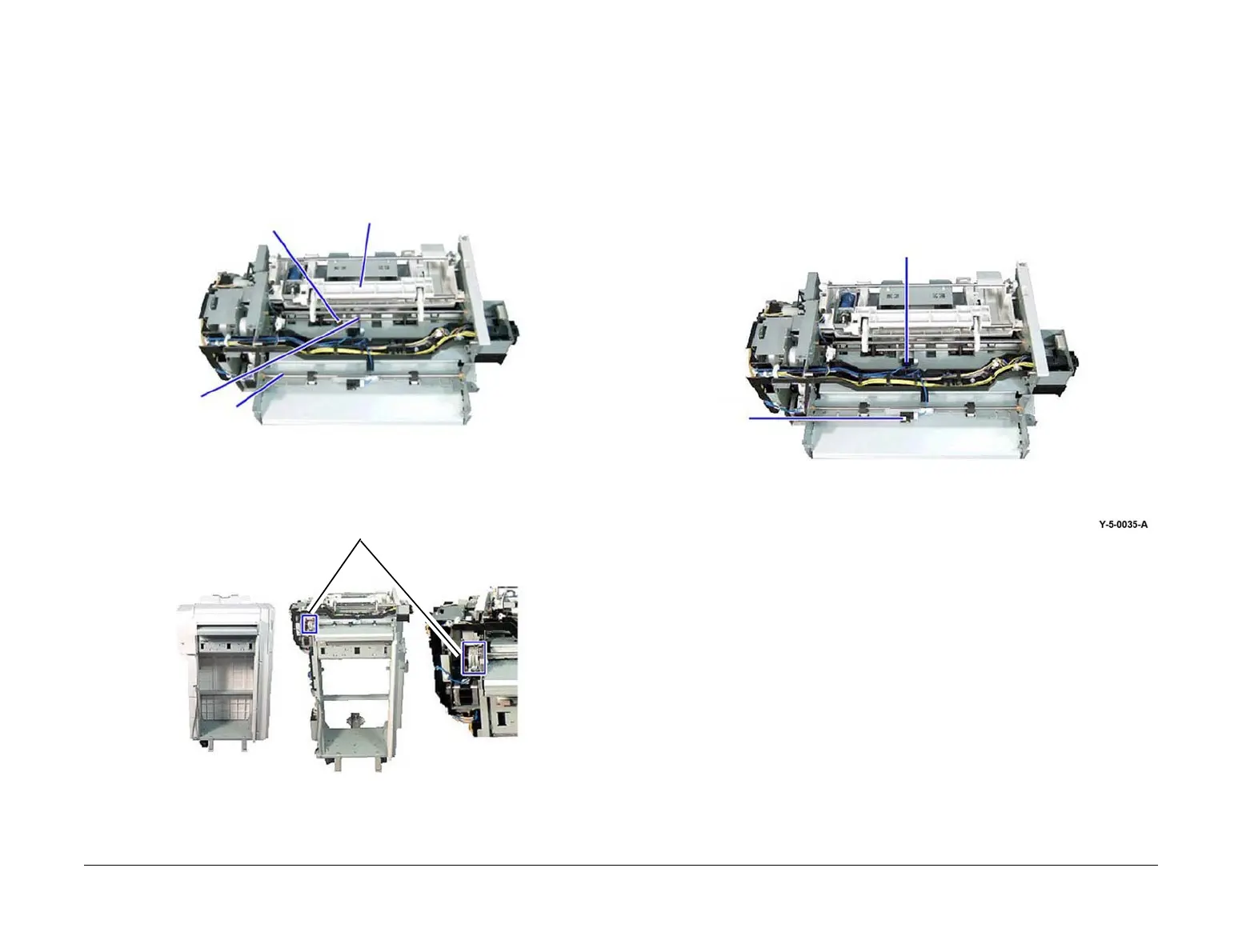

Figure 15 Compiler components
Figure 16 Transport motor
Compiler Entrance and Exit Sensors
The progress of paper through the main compiler is monitored by two sensors, (1) the entrance
sensor and (2) the compiler exit sensor.
The entrance sensor is actuated by the lead edge of the paper entering the finisher from the
horizontal transport. This signals the paper feed process to begin.
The compiler exit sensor is used to ensure that paper successfully moves through the paper path. If
the compiler exit sensor is not actuated within a pre-set time of the entrance sensor being actuated,
a paper jam condition is signalled and an error message appears. Refer to Figure 17.
Figure 17 Entrance sensor and compiler exit sensor
Paddle shaft assembly
Exit
roller
Sub paddle assembly
Entrance
roller
Transport motor
Finisher
entrance
sensor
Compiler exit sensor

Xerox VersaLink B7030 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	1200 x 1200 dpi
Copy Speed	Up to 30 cpm
Copy Resolution	600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Fax Speed	33.6 kbps
Duplex Printing	Automatic
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-in for Android, Mopria
Control Panel	7-inch color touchscreen
Memory	2 GB
Print Speed	30 ppm
Supported Media Sizes	A4, A5, A6, B5, B6, Letter, Legal, Executive
Connectivity	USB, Ethernet, Wi-Fi
Processor	1 GHz
Scan Speed	Up to 55 ipm
