Xerox VersaLink B7030 Service Manual

April 2017
8-81
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
Product Technical Overview
Launch Issue
Sub Paddle Assembly
The sub-paddle assembly actively drives fed paper into the compiler tray when it exits the exit
roll.
The sub-paddle assembly consists of a set of sub-paddles, an eject chute, and a solenoid.
drive is provided by the transport motor. Refer to Figure 18.

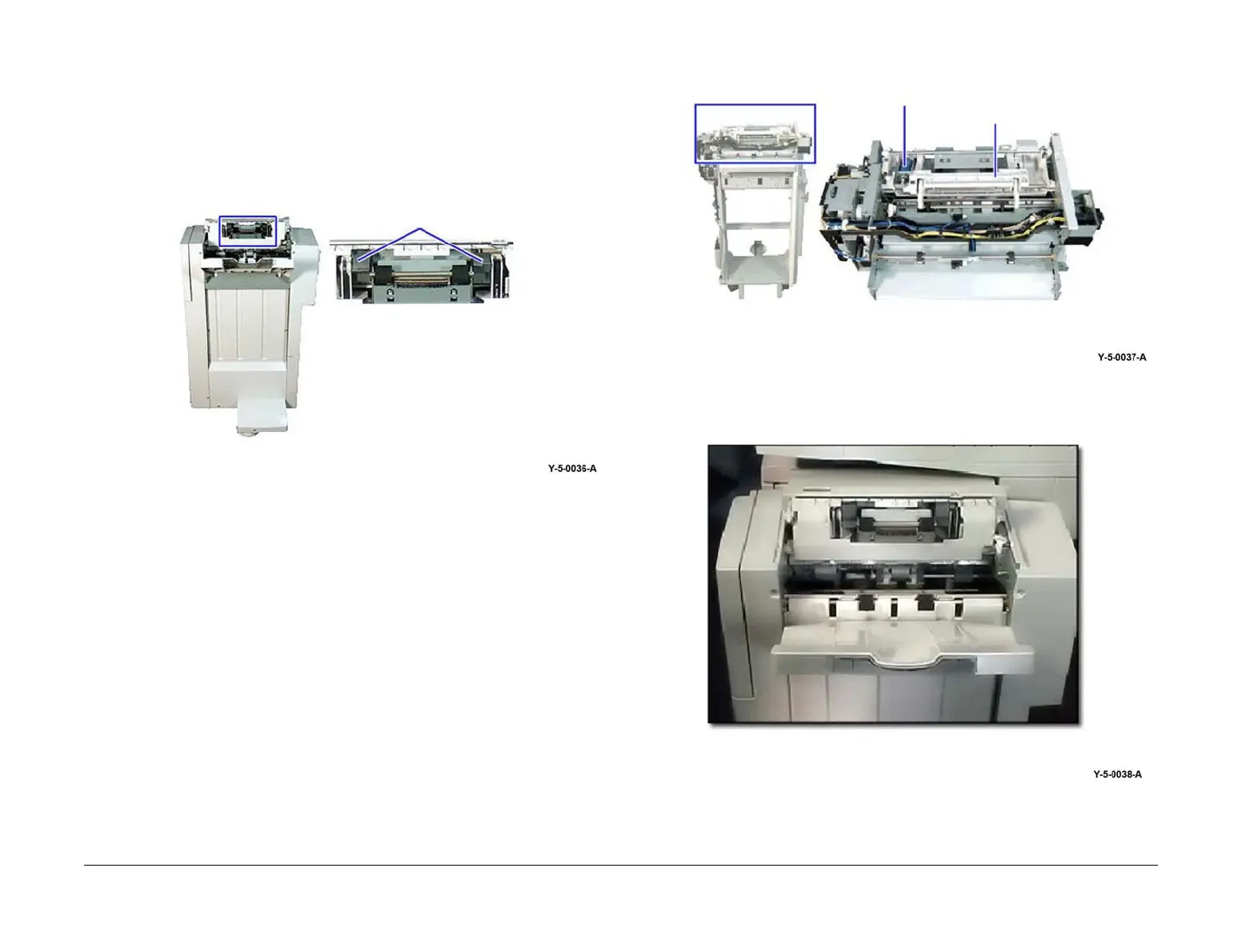

Figure 18 Sub paddle assembly
Exit Chute
When instructed, the solenoid is energized, which lowers the eject chute and the sub paddles
onto the paper.
The rotation of the sub paddles actively drives the paper against the compiler backstops where
the paper is tamped, stapled (if required), and ejected.
The sub paddles rotate constantly and only come into contact with the paper when the solenoid
is actuated. Refer to Figure 19, Figure 20 and Figure 21.
Figure 19 Exit chute
Figure 20 Sub paddle assembly
Sub-paddles
Solenoid
Exit chute

Xerox VersaLink B7030 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	1200 x 1200 dpi
Copy Speed	Up to 30 cpm
Copy Resolution	600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Fax Speed	33.6 kbps
Duplex Printing	Automatic
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-in for Android, Mopria
Control Panel	7-inch color touchscreen
Memory	2 GB
Print Speed	30 ppm
Supported Media Sizes	A4, A5, A6, B5, B6, Letter, Legal, Executive
Connectivity	USB, Ethernet, Wi-Fi
Processor	1 GHz
Scan Speed	Up to 55 ipm
