Product Technical Overview

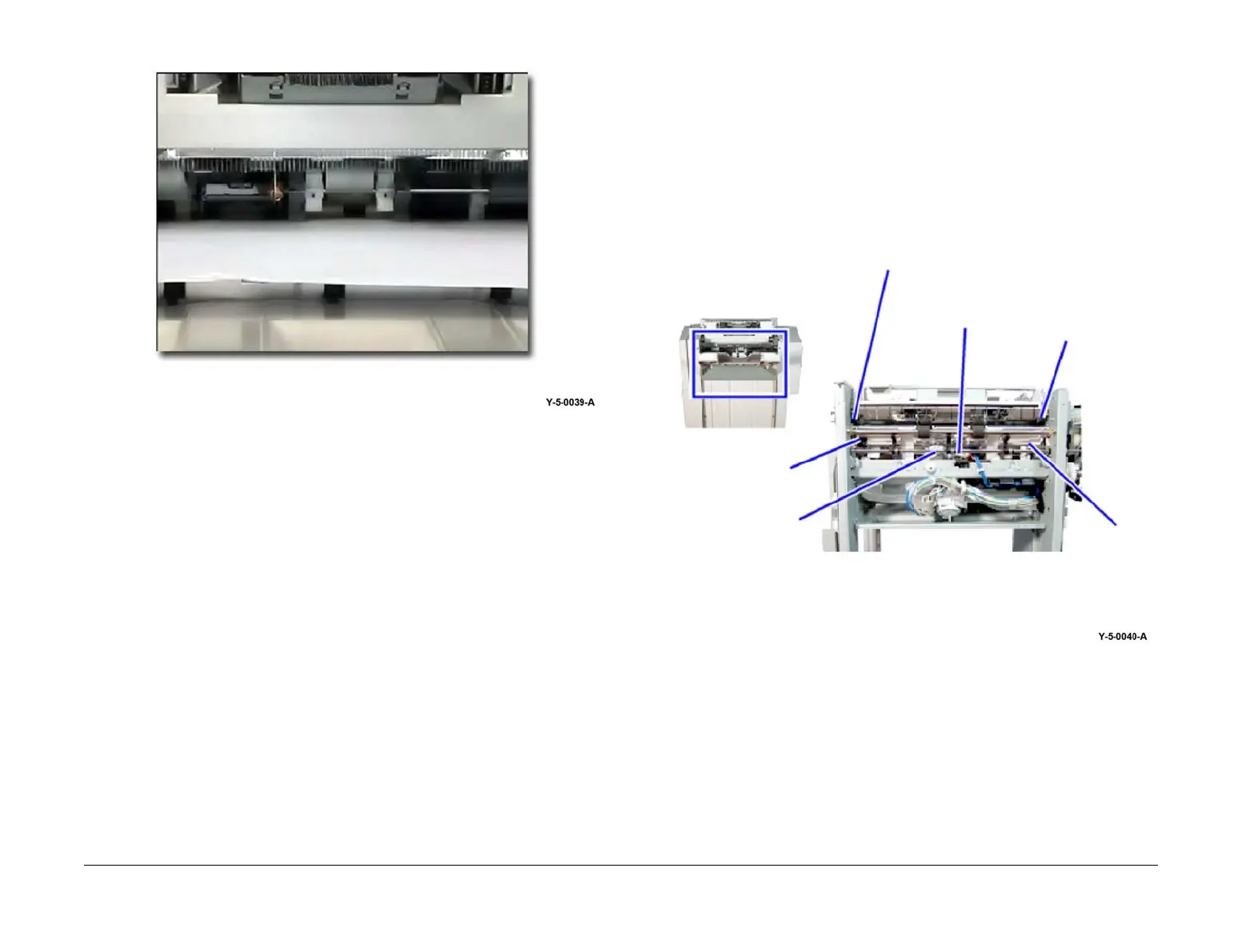

Figure 21 Closer view
Tamper Assemblies
The tamper assemblies are used to compile sets of paper into registered stacks either for sta-
pling or exit to the stacker tray. The tamper assemblies tamp the sets of paper to the front, cen-
ter, or rear of the compiler, as required.
The Finisher LX has two separate tamper assemblies which operate as a single unit. These
are the front and rear tamper assemblies. Each tamper assembly consists of a tamping paddle,
tamper paddle motor, and a tamper home sensor. Refer to Figure 22.
Figure 22 Tamper assemblies
Front tamping paddle
Front tamper motor
Rear tamp-
ing paddle
Rear tamper
home sensor
Rear tamper
motor
Front tamper
home sensor
