April 2017
8-86
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
Launch Issue
Product Technical Overview
Booklet Maker
The optional booklet maker produces pre-creased booklets with either 1 or 2 staples. The
booklet maker is supplied with a crease assembly which is installed into the Finisher LX. Refer
to Figure 30.

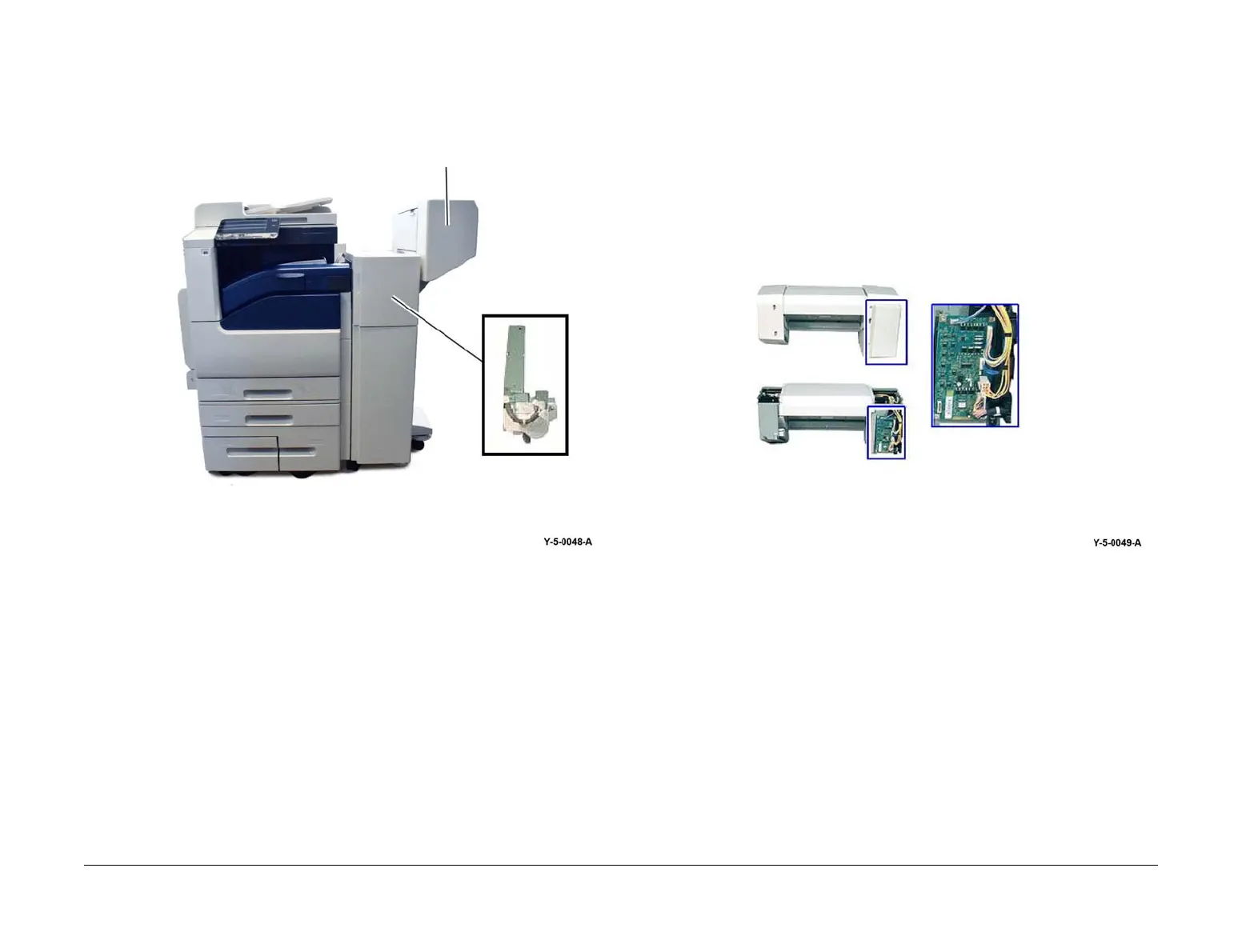

Figure 30 Booklet maker
Power and Control
The Finisher LX supplies the booklet PWB with a +24V power supply through the interconnec-
tion harness.
The booklet PWB controls all the booklet maker components and distributes the + 24V supply
to the motors and + 5V to the sensors and interlocks.
The crease assembly is powered and controlled by the finisher PWB. Refer to Figure 31.
Figure 31 Booklet maker power and control
Booklet maker
Booklet PWB
To Next Page
