April 2017
8-87
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
Product Technical Overview
Launch Issue
Booklet Maker Interlocks
The booklet maker has three Interlocks: the booklet stapler cover switch, the front booklet sta-
pler safety switch, and rear booklet stapler safety switch.
Interlock - Booklet Stapler Cover Switch
The booklet stapler cover switch is actuated when the side cover is opened. When actuated, all
+ 24V supplies are removed from the booklet maker. Refer to Figure 32.

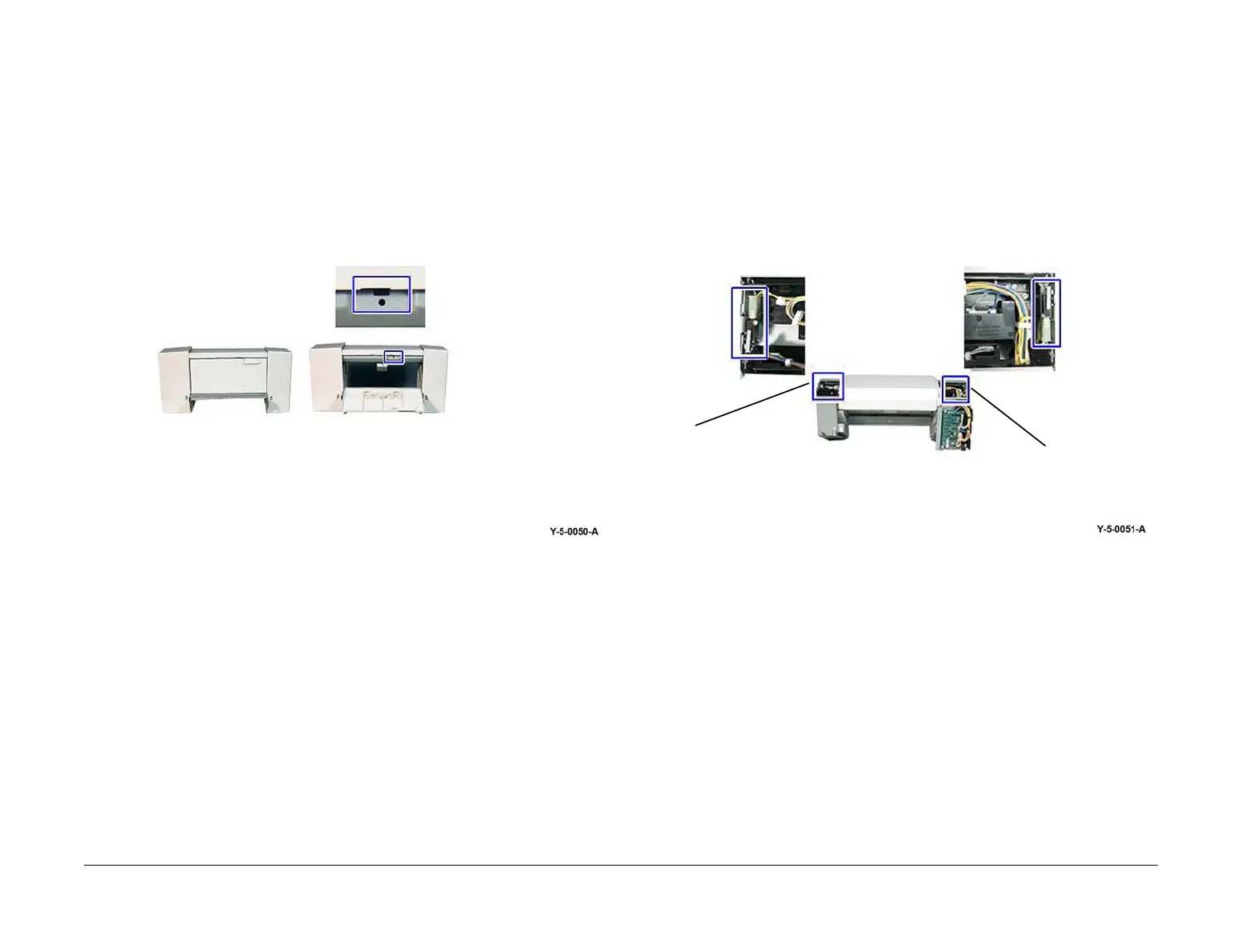

Figure 32 Booklet stapler cover switch
Interlock - Front and Rear Booklet Stapler Safety Switches
The front and rear booklet stapler safety switches are actuated when either the front or rear
covers are raised.
These Interlocks prevent the booklet maker from operating when either the front or rear covers
are obstructed, i.e., raised, or when the booklet maker is incorrectly mounted. Refer to Figure
33.
Figure 33 Front and rear safety switches
Booklet stapler
cover switch
Front booklet staple
safety switch
Rear booklet staple
r
safety switch
