Xerox VersaLink B7030 Service Manual

April 2017
8-88
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
Launch Issue
Product Technical Overview

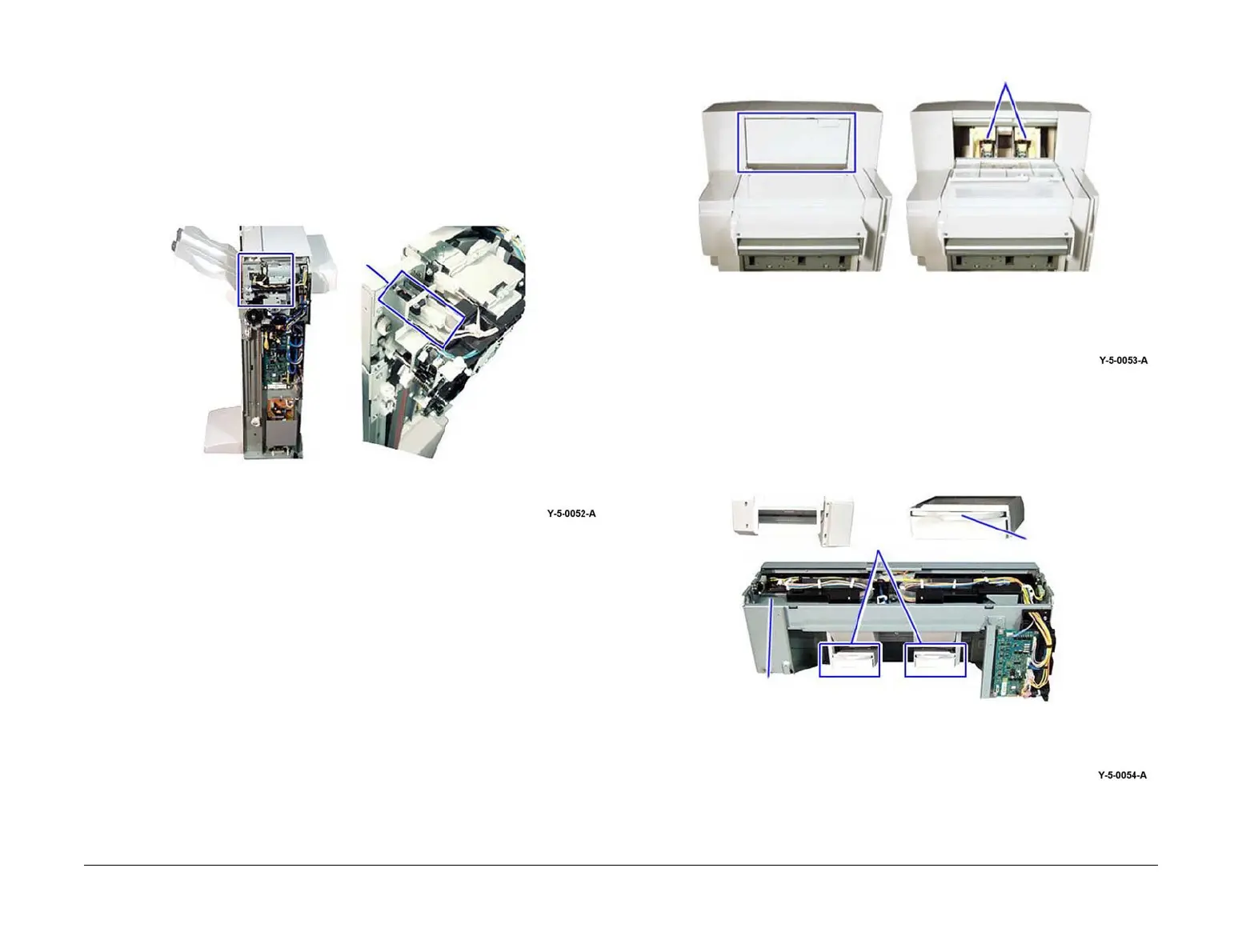

Interlock - Finisher Side Interlock
An option switch is used to detect when the booklet maker is installed on the finisher. This
Interlock is located on the Finisher LX, not the booklet maker.
When Interlocks are open, power is removed and an error message displays on the UI. Refer
to Figure 34.
Figure 34 Finisher side interlock
Stapler Assembly
The booklet maker contains two staple assemblies which support and staple compiled booklets
prior to ejecting into the stacker tray.
Each staple assembly contains a staple module and an exit sub chute. The staple units are
mounted on a carriage rail. Refer to Figure 35.
Figure 35 Stapler assemblies
Figure 36 Components
Option
switch
Stapler assemblies
Stapler
assemblies
Exit sub-chute
Carriage rail

Xerox VersaLink B7030 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	1200 x 1200 dpi
Copy Speed	Up to 30 cpm
Copy Resolution	600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Fax Speed	33.6 kbps
Duplex Printing	Automatic
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-in for Android, Mopria
Control Panel	7-inch color touchscreen
Memory	2 GB
Print Speed	30 ppm
Supported Media Sizes	A4, A5, A6, B5, B6, Letter, Legal, Executive
Connectivity	USB, Ethernet, Wi-Fi
Processor	1 GHz
Scan Speed	Up to 55 ipm
