Xerox VersaLink B7030 Service Manual

April 2017
4-44
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 5.17
Launch Issue
Repairs and Adjustments

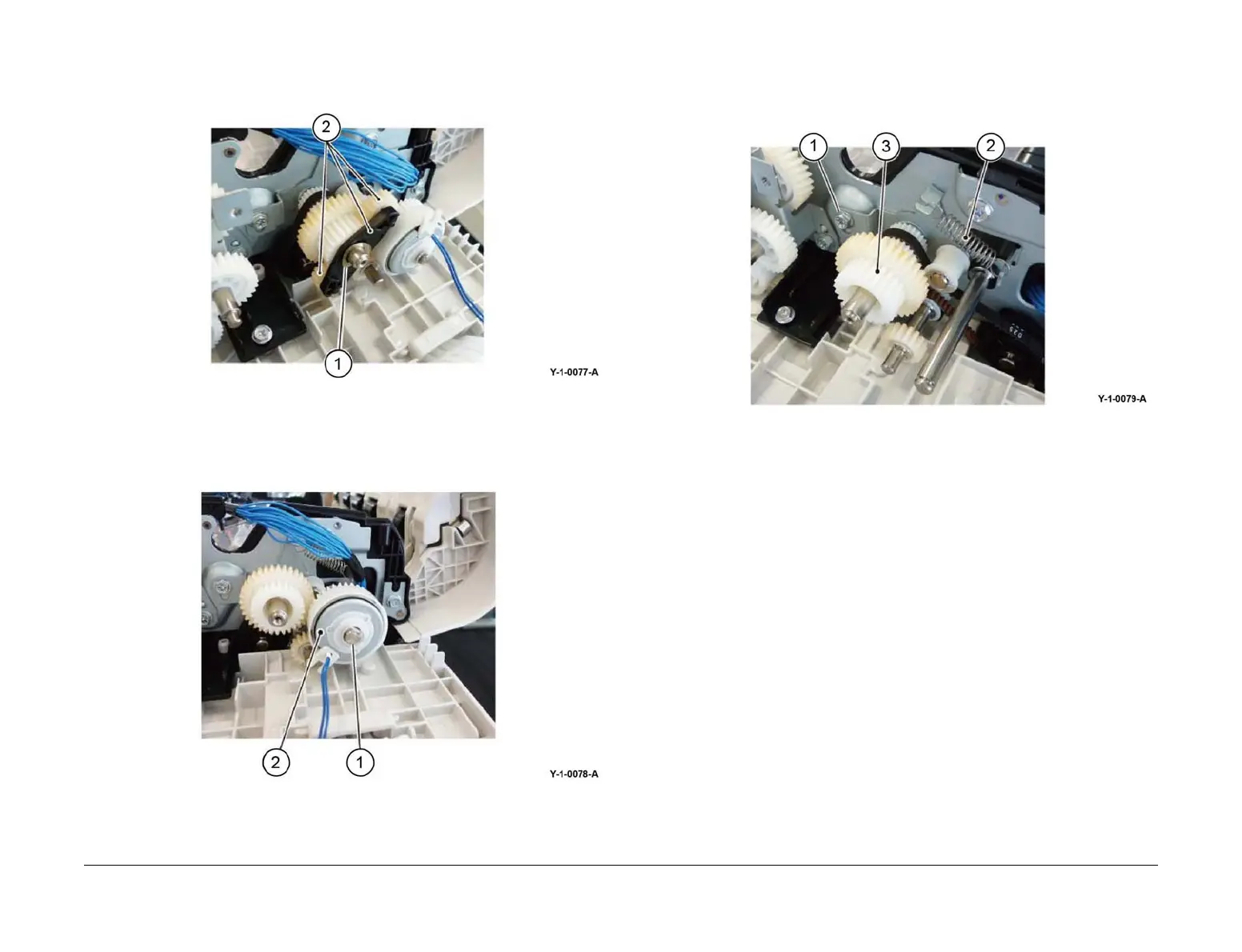

9. Remove the idler gear bracket, Figure 2:
a. Remove the washer (1).
b. Remove two gears, then the idler gear bracket (2).
Figure 2 Idler gear bracket removal
10. Remove the DADF T/A clutch, Figure 3:
a. Remove the E-clip (1).
b. Remove the DADF T/A clutch (2).
Figure 3 T/A clutch removal
11. Remove the gear pulley, Figure 4:
a. Loosen the screw (1).
b. Remove the tension spring (2).
c. Remove the gear pulley (3).
Figure 4 Gear pulley removal

Xerox VersaLink B7030 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	1200 x 1200 dpi
Copy Speed	Up to 30 cpm
Copy Resolution	600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Fax Speed	33.6 kbps
Duplex Printing	Automatic
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-in for Android, Mopria
Control Panel	7-inch color touchscreen
Memory	2 GB
Print Speed	30 ppm
Supported Media Sizes	A4, A5, A6, B5, B6, Letter, Legal, Executive
Connectivity	USB, Ethernet, Wi-Fi
Processor	1 GHz
Scan Speed	Up to 55 ipm
