REP 5.17
Repairs and Adjustments
Launch Issue
CAUTION
Do not lose the gear on the rear of the front bracket. Refer to Figure 6.

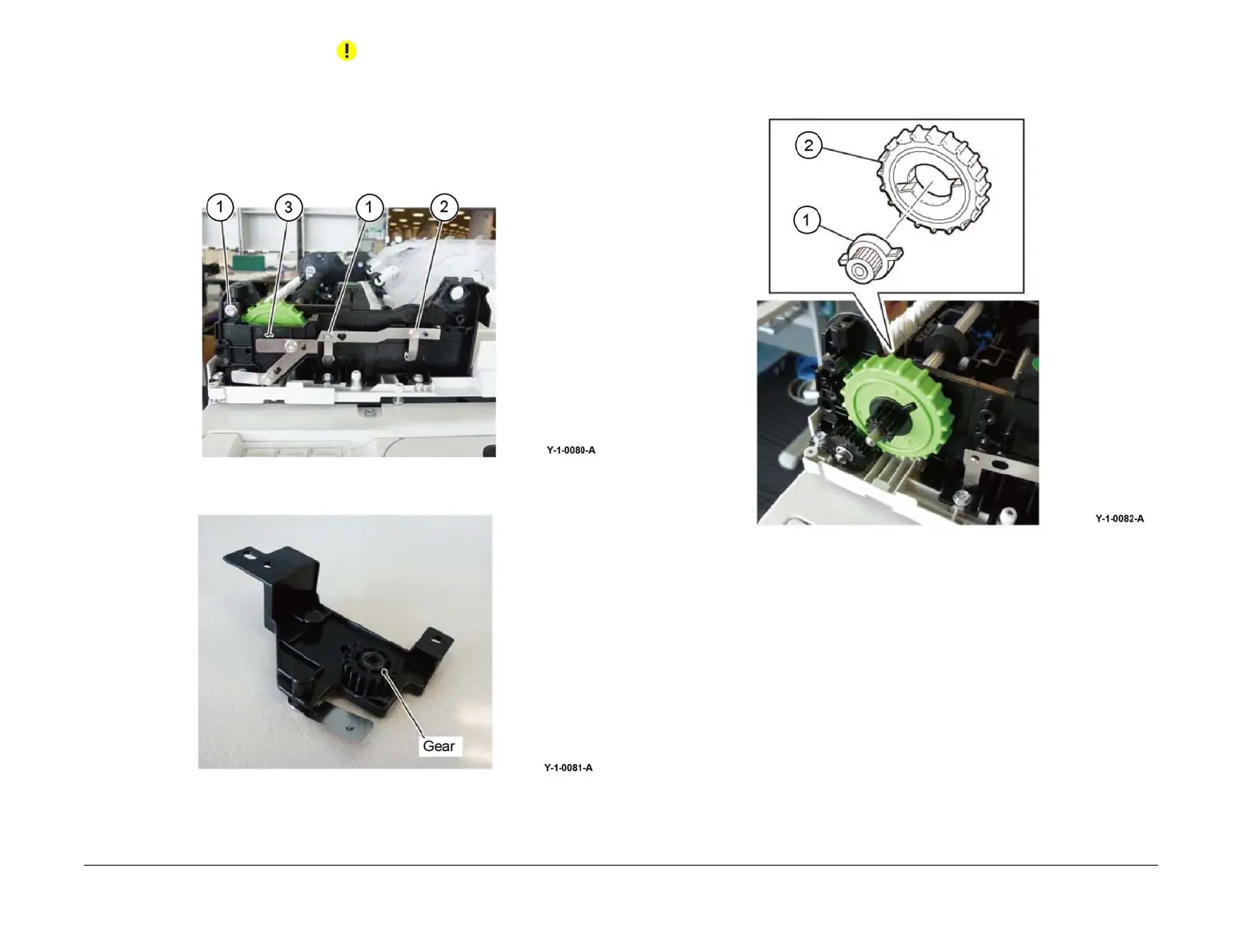

12. Remove the front bracket and ground roll plate, Figure 5:
a. Remove two screws (1).
b. Loosen the screw (2).
c. Remove the front bracket and ground roll plate (3).
Figure 5 Front bracket removal
Figure 6 Gear
13. Remove the knob, Figure 7:
a. Remove the gear (1).
b. Remove handle knob (2).
Figure 7 Knob
