Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 5.17
Launch Issue
Repairs and Adjustments
14. Remove the front bearing, Figure 8:
a. Remove the KL-clip (1).
b. Remove the bearing (2).

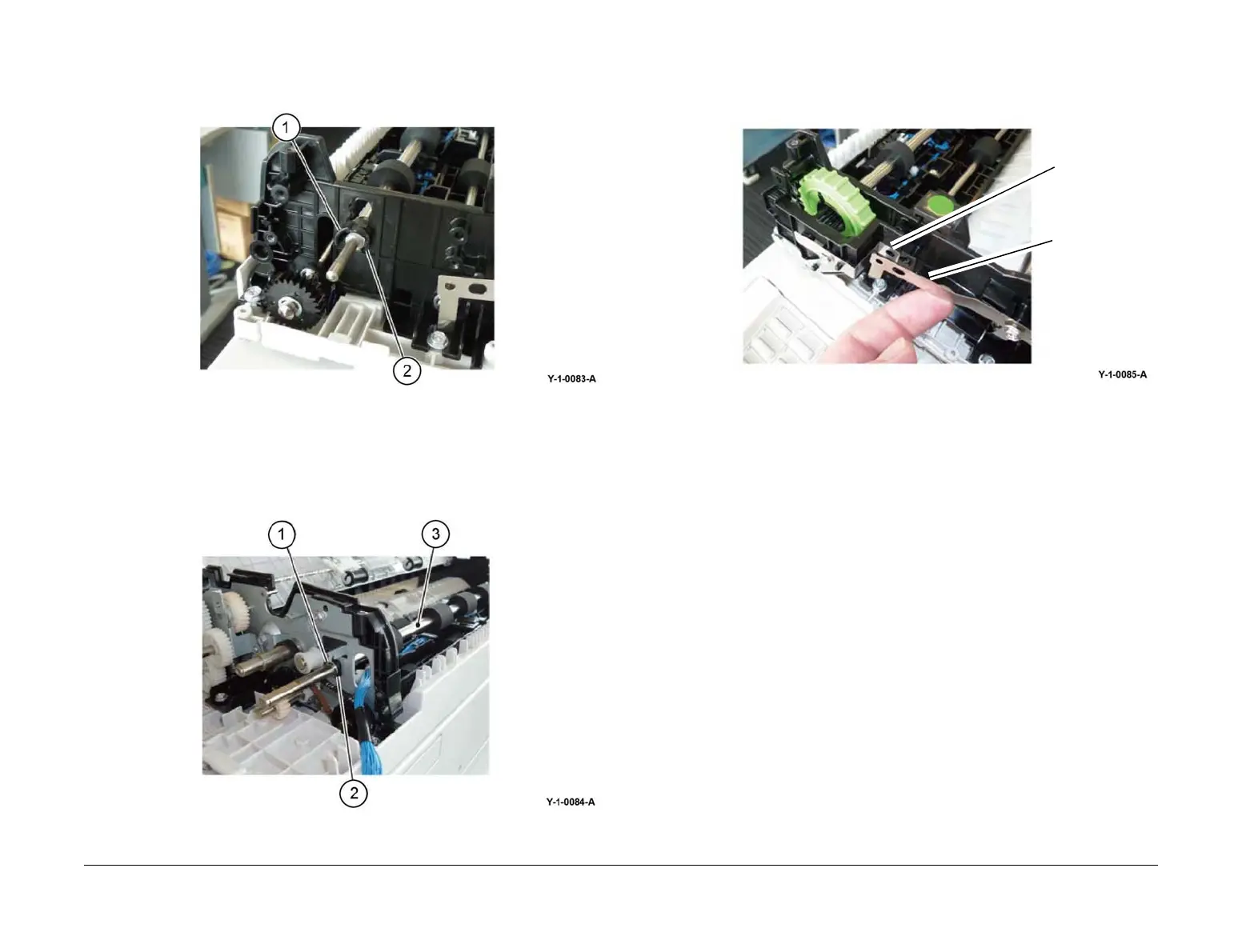

Figure 8 Bearing removal
15. Remove the rear bearing, then the DADF takeaway roll, Figure 9:
a. Remove the E-clip (1).
b. Remove the bearing (2).
c. Remove the DADF takeaway roll (3).
Figure 9 Takeaway roll removal
Replacement
1. The replacement is the reverse of the removal procedure.
2. Install the front bracket and ground roll plate as shown in Figure 10.
Figure 10 Ground plate installation
Outside
Inside
