Xerox VersaLink B7030 Service Manual

April 2017
4-76
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 12.16
Launch Issue
Repairs and Adjustments

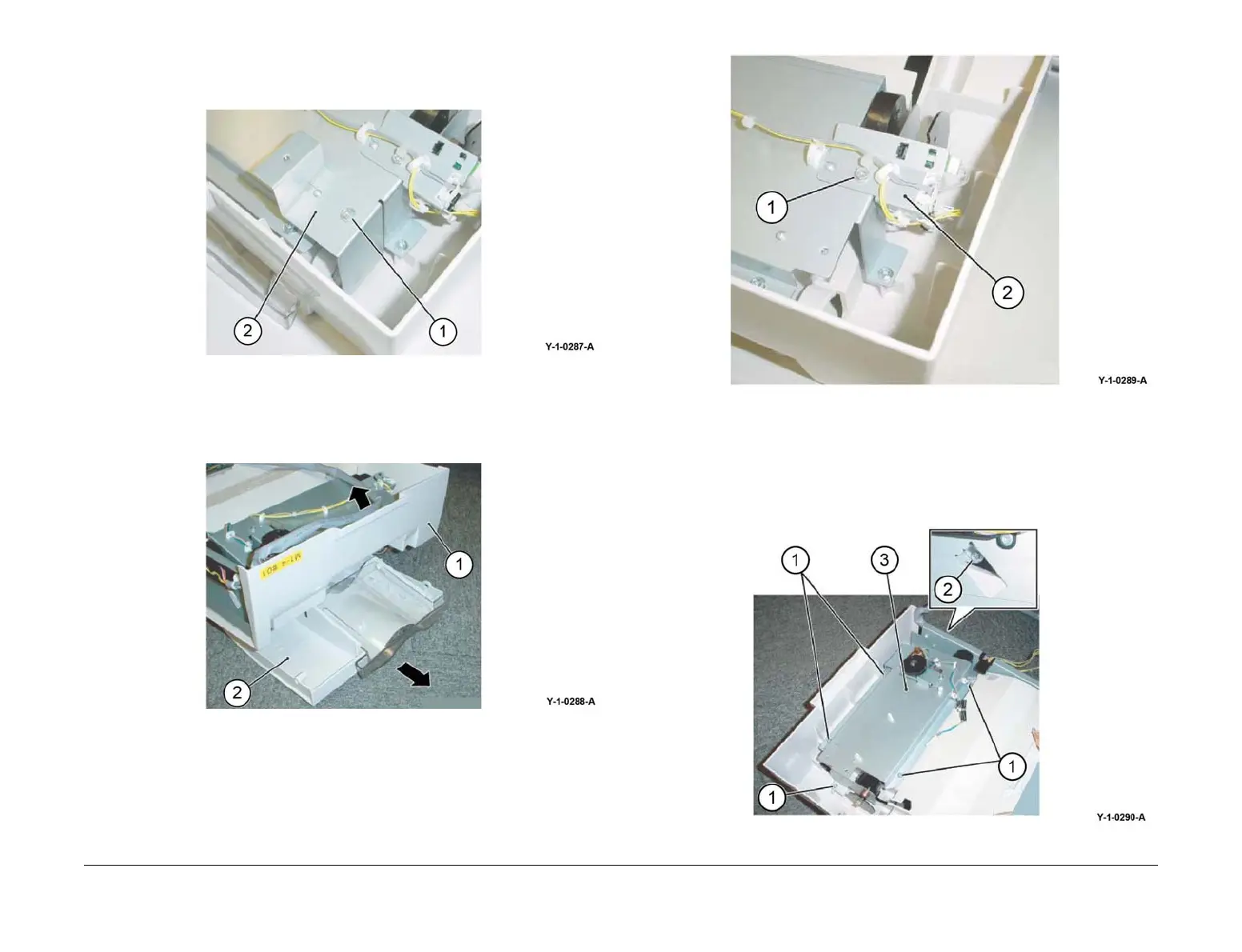

6. Remove the front bracket, Figure 2:
a. Remove the screw (1).
b. Remove the bracket (2).
Figure 2 Front bracket removal
7. Remove the top tray, Figure 3:
a. Raise the integrated office finisher slightly in the direction of the arrow (1).
b. Remove the top tray (2).
Figure 3 Top tray removal
8. Remove the stacker sensor assembly, Figure 4:
a. Remove the screw (1).
b. Remove the stacker sensor assembly (2).
c. Disconnect the connectors, then release the harness from the clamps.
Figure 4 Stacker sensor assembly removal
9. Remove the stacker assembly, Figure 5:
a. Remove five self-tapping screws (1).
b. Remove the screw (2).
c. Remove the stacker assembly (3).
Figure 5 Stacker assembly removal
