April 2017
4-77
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 12.16
Repairs and Adjustments
Launch Issue

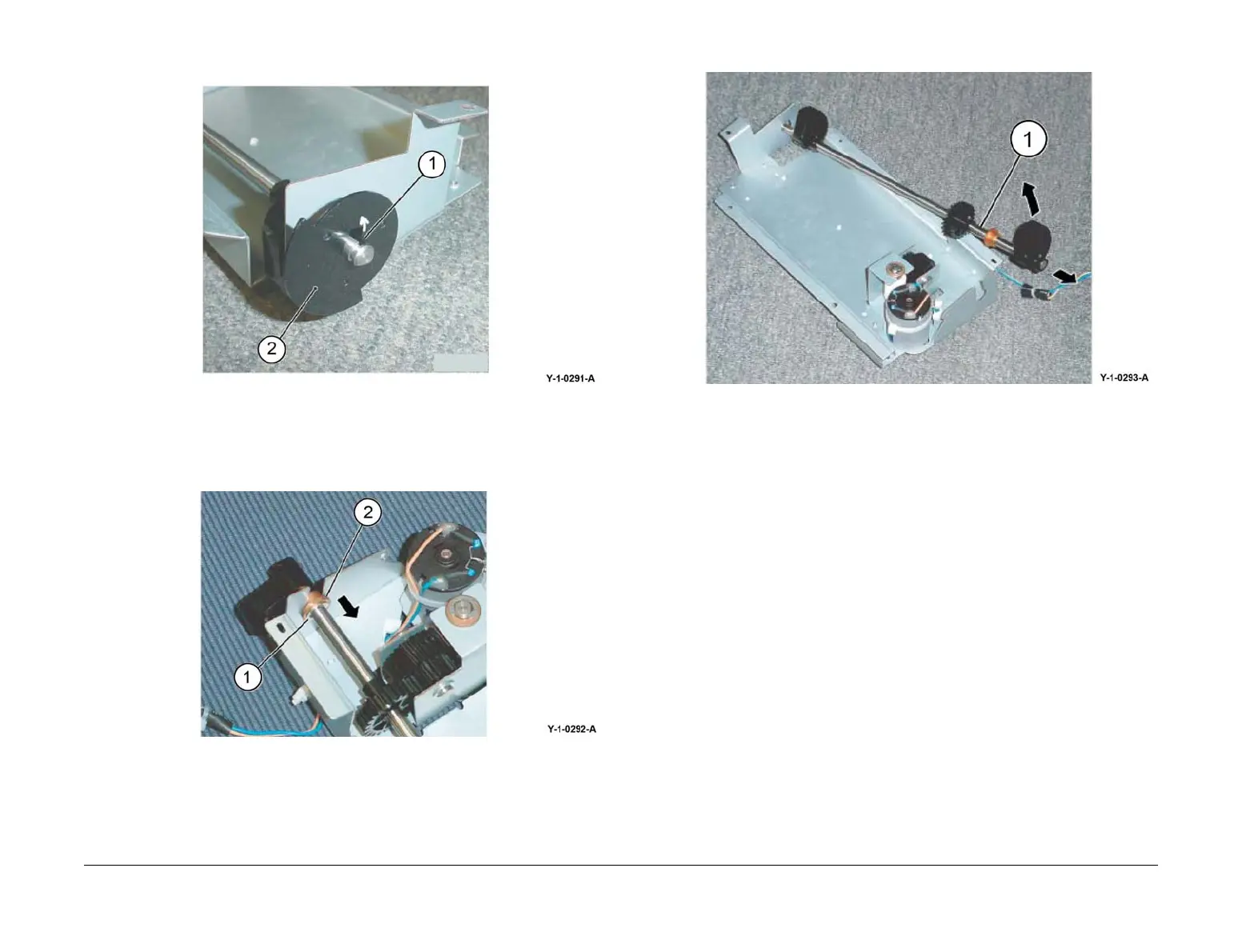

10. Unhook (1), then remove the actuator (2), Figure 6.
Figure 6 Actuator removal
11. Prepare to remove the stacker shaft assembly, Figure 7:
a. Remove the E-clip (1).
b. Move the bearing (2) in the direction of the arrow.
Figure 7 Preparation
12. Remove the stacker shaft assembly in the direction of the arrow, Figure 8.
Figure 8 Stacker shaft assembly removal
Replacement
The replacement is the reverse of the removal procedure.
