Repairs and Adjustments

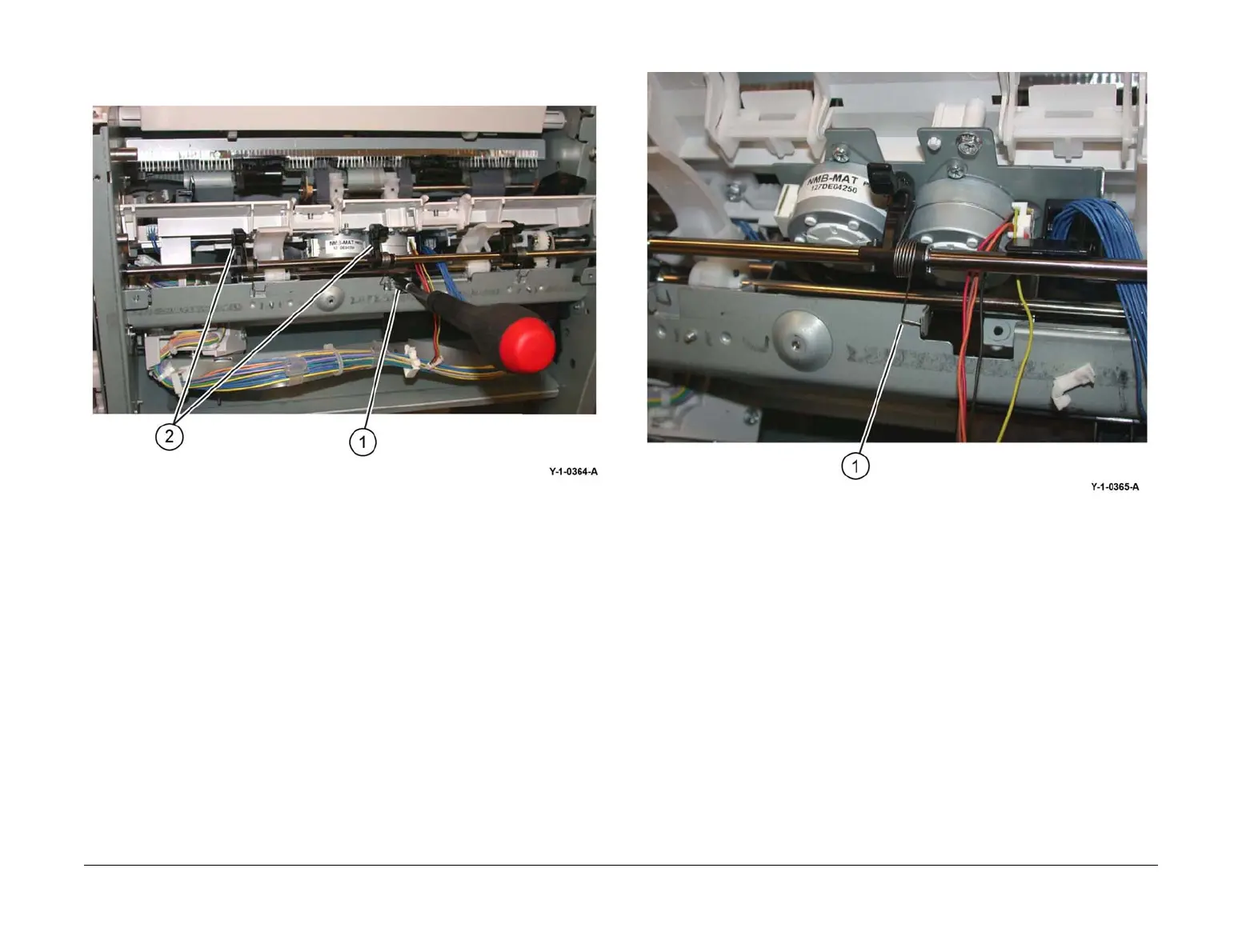

11. Remove the compiler tray screw (1), Figure 3.
NOTE: Note the position of the set clamp holders (2).
Figure 3 Compiler tray screw removal
12. Disengage the three springs (1) from the set clamp holders, Figure 4.
Figure 4 Set clamp holder springs
13. Remove the front E-ring and the bushing (1) from the set clamp shaft assembly, Figure 5.
