Xerox VersaLink B7030

April 2017
4-109
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 13.17
Repairs and Adjustments
Launch Issue

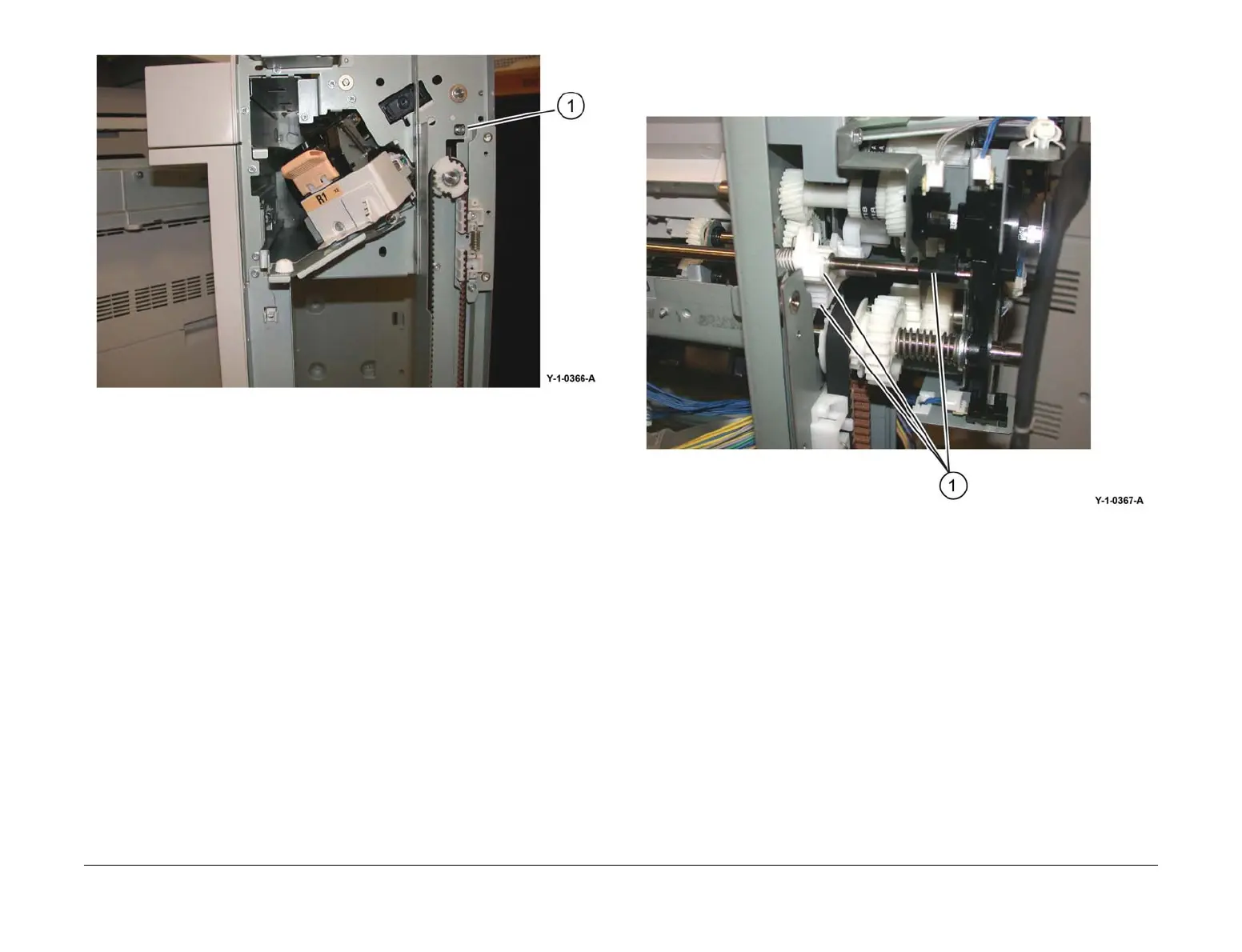

Figure 5 Front E-ring removal
NOTE: Note the position and orientation of the set clamp shaft gear and the cam gear
that it engages (1). When installing the set clamp shaft, these gears must engage in the
same manner, Figure 6.
Figure 6 Gear orientation
