April 2017
4-158
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 60.9
Launch Issue
Repairs and Adjustments

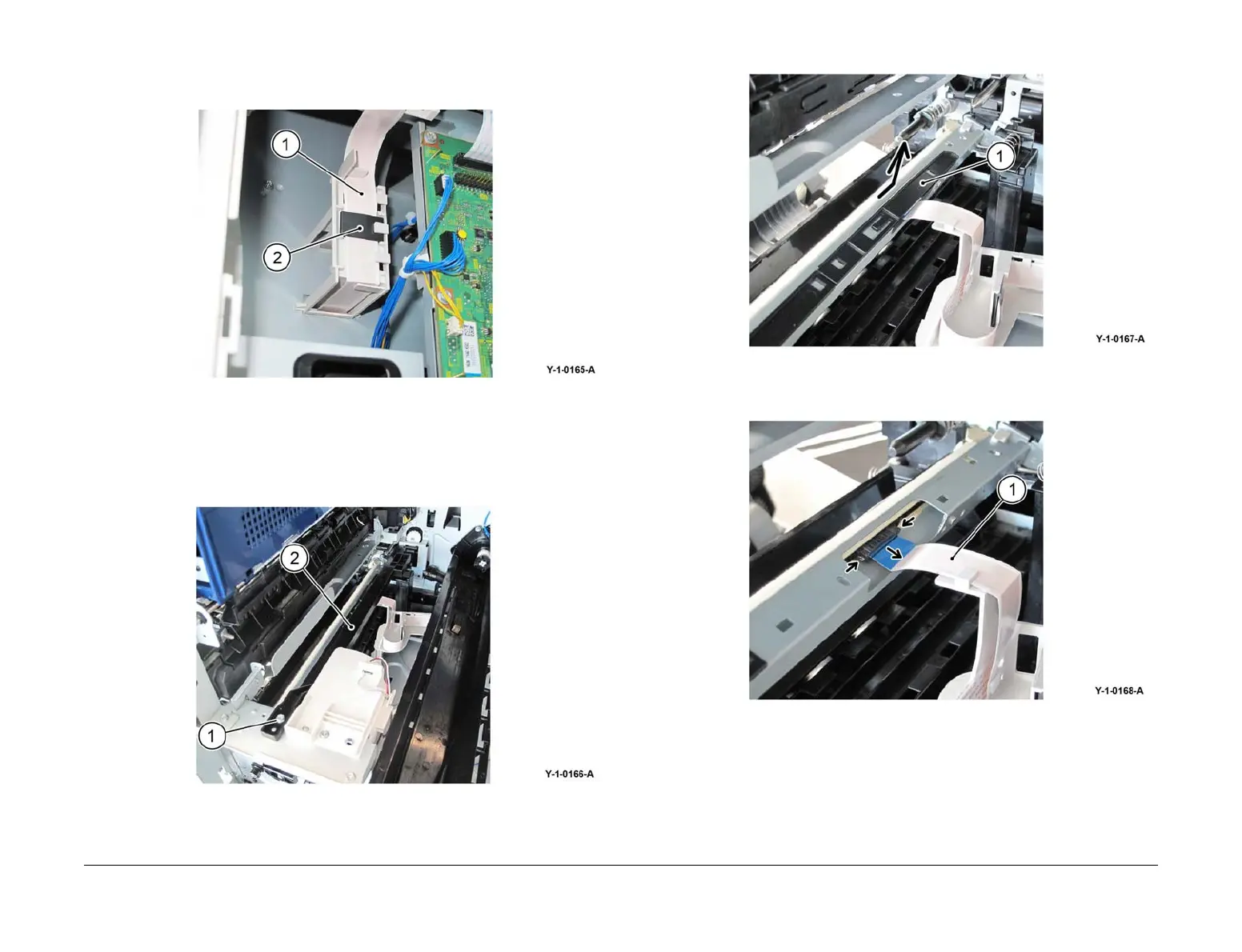

6. Release the FFC cable, Figure 5:
a. Release FFC cable from the FFC guide-R (1).
b. Remove the ferrite core (2).
Figure 5 Guide release
7. Remove the inner cover, REP 28.2.
8. Remove the CRU upper guide assembly, Figure 6:
a. Remove the screw (1).
b. Remove the CRU upper guide assembly (2).
Figure 6 CRU upper guide removal
9. Pull up the center tab (1), move the CRU guide toward the rear, then remove it, Figure 7.
Figure 7 CRU guide removal
10. Carefully disconnect the FFC cable (1) by releasing the side clips, Figure 8.
Figure 8 FFC Cable
To Next Page
