Xerox VersaLink B7030 Service Manual

April 2017
4-192
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 80.16
Launch Issue
Repairs and Adjustments

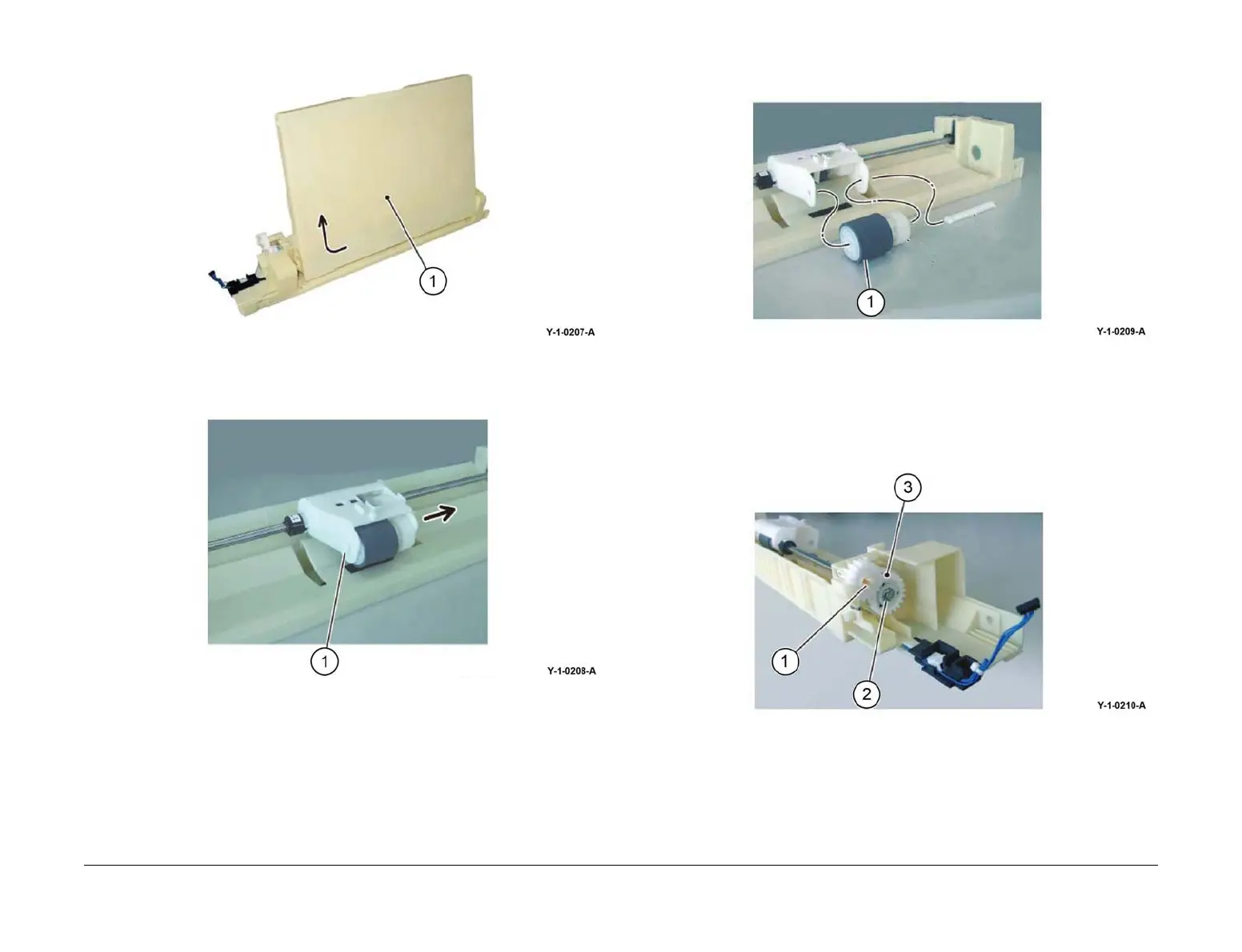

3. Remove the bypass tray assembly in the direction of the arrow, Figure 2.
Figure 2 Tray assembly removal
4. Release the shaft, then remove the shaft in the direction of the arrow, Figure 3.
Figure 3 Shaft removal
5. Remove the bypass tray nudger roll (1), Figure 4.
Figure 4 Nudger roll removal
6. Remove the bypass tray feed clutch, Figure 5:
a. Release the hook, then remove the gear (1).
b. Remove the E-clip (2).
c. Remove the bypass tray feed clutch from the shaft (3).
Figure 5 Feed clutch removal
