REP 80.41
Repairs and Adjustments
Launch Issue
Lower (Tray 3 and 4) Takeaway Roll
1. Remove the rear cover, PL PL 70.95 Item 8.
2. Open the left cover assembly, PL 70.70 Item 7.

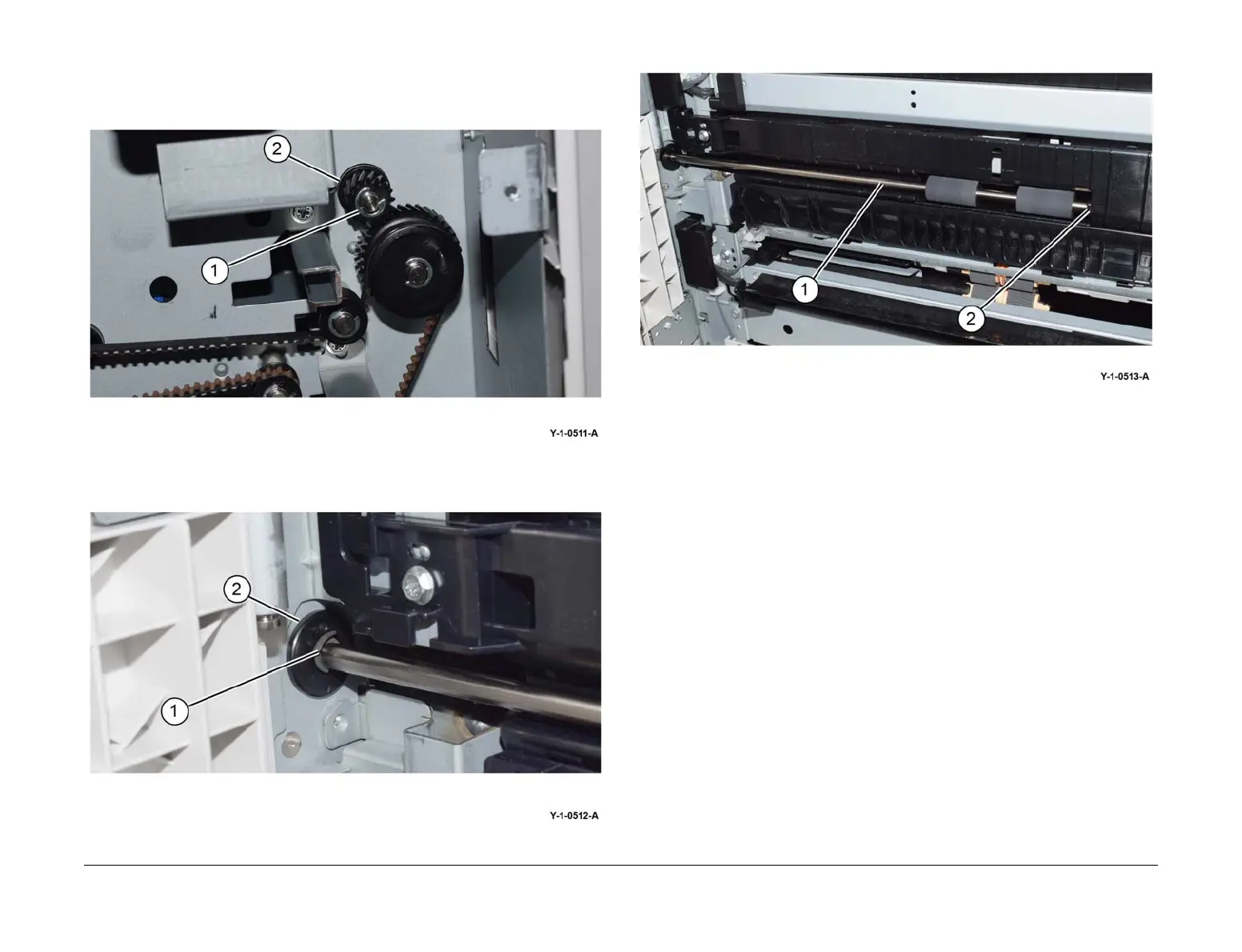

3. Remove the E-clip (1), then the gear (2), Figure 5.
Figure 5 Gear removal
4. Remove the KL-clip (1), then the release the bearing (2), Figure 6.
Figure 6 KL-clip removal
5. Remove the lower takeaway roll (1) and bearing (2), Figure 7.
Figure 7 Roll removal
Replacement
The replacement is the reverse of the removal procedure.
