Chapter 3 Wiring
Revision February, 2017
3-59
3.7
CN4 Serial Connector (USB)
CN4 is a serial connector which used to connect PC software and enhance the efficiency. The
transmission speed of USB can up to 1MB, that is to say PC Data Scope can obtain the correct
data in time.

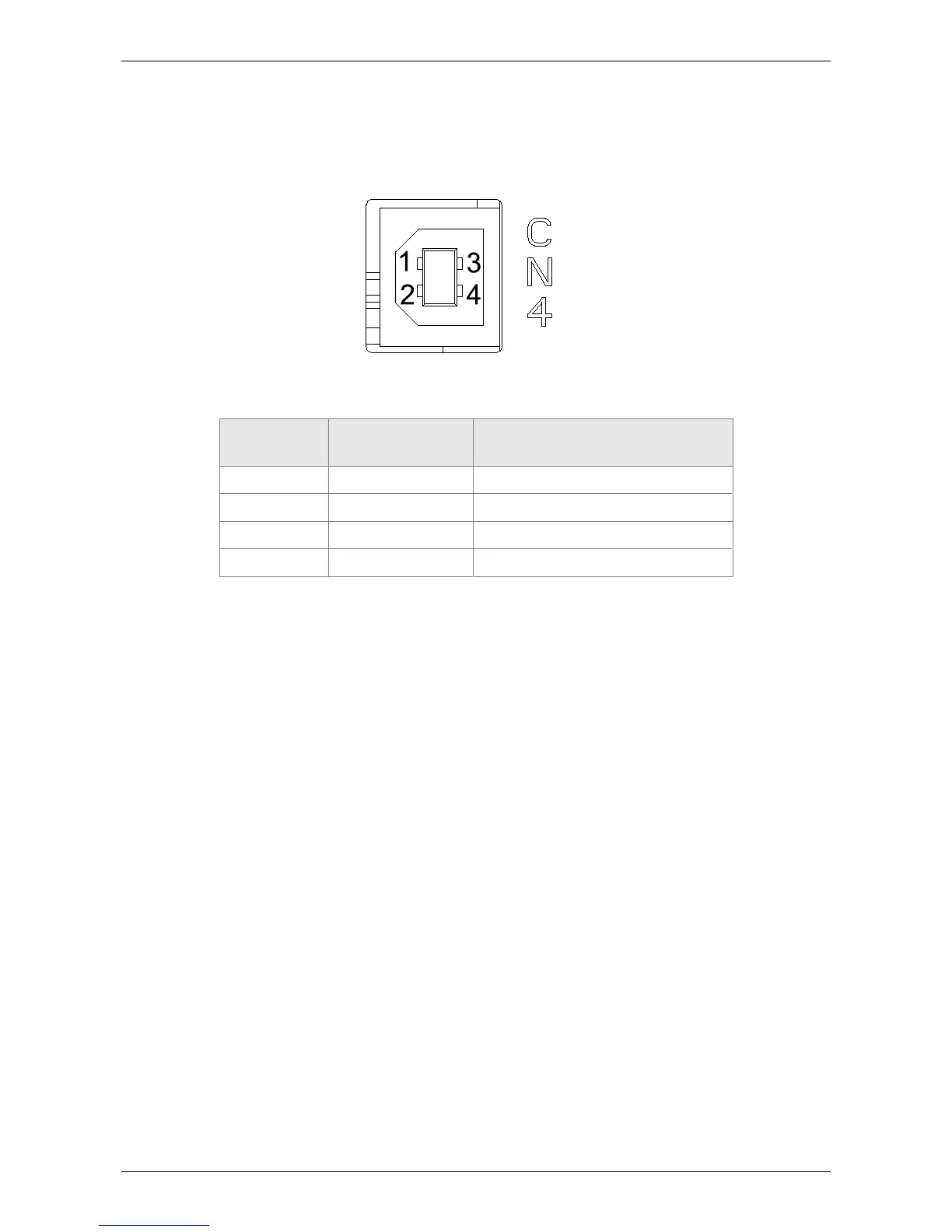

CN4 Connector (fem
ale)
PIN No.
Signal Name
Function and Description
1
V bus
DC +5V (ext
ernal power supply)
2 D-
Data-
3 D+
Data+
4 GND
Ground
