Delta ASDA-A2 User Manual

ASDA-A2 Chapter 8 Parameters
Revision February, 2017 8-57

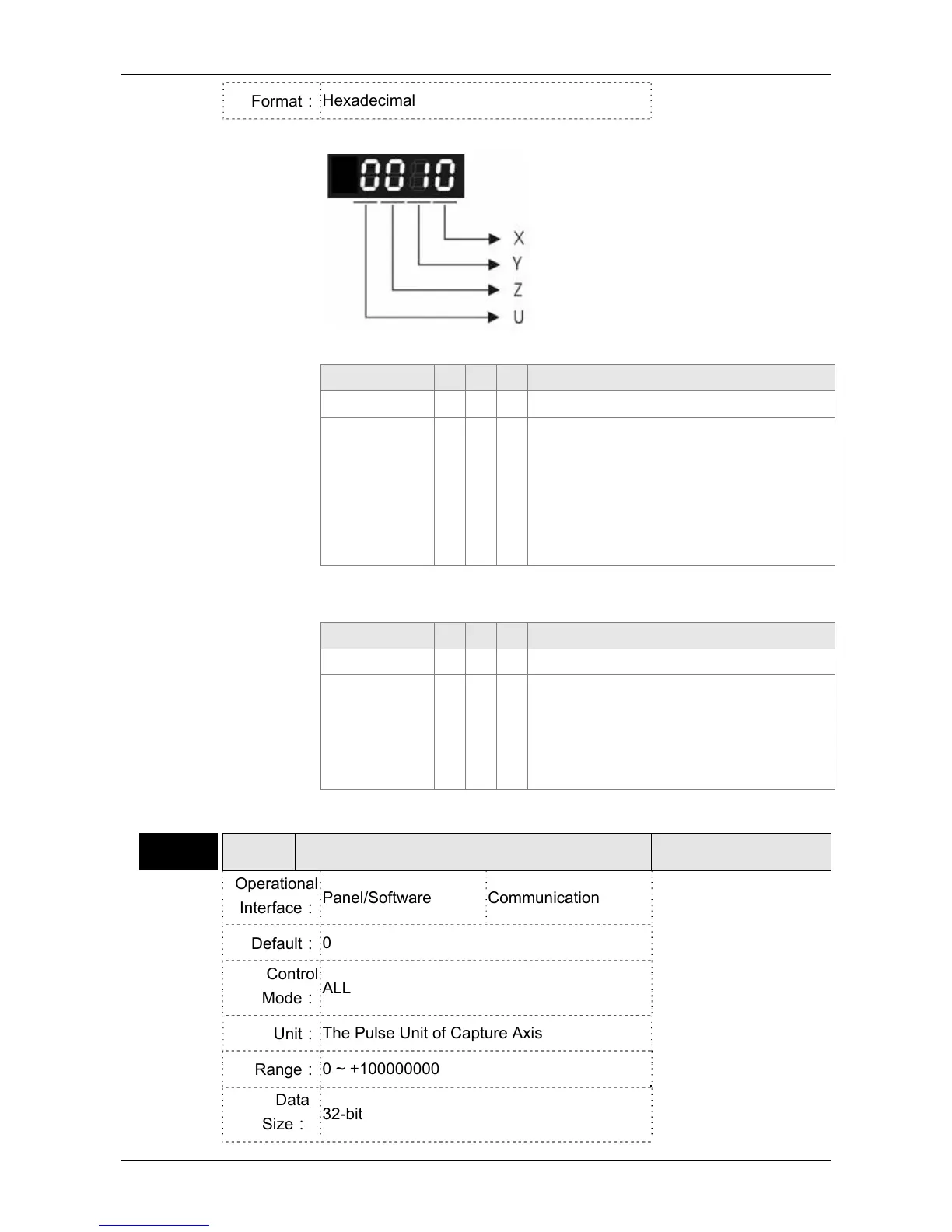

Format：
Hexadecimal
Settings：
X: Bit settings of Capture additional function settings:
Bit 3 2 1 0
Function - - - Repeating Mode
Explanation - - -
Enable the repeating mode. After the last
position is captured, the system will
automatically repeat this CAPTURE
function. The captured data is still stored in
the data array that the starting address is
specified by P5-36!
(This function is available in firmware
version V1.038 sub19 and later models only)
Y: Reserved
Z: Bit settings of Compare additional function settings:
Bit 3 2 1 0
Function - - - Automatically set P1-24 to 0.
Explanation - - -
When Bit0 is set to 1, P1-24 will only be
effective once and reset to 0 automatically!
Otherwise, the value of P1-24 will remain
unchanged.
(This function is available in firmware
version V1.038 sub19 and later models only)
U: Reserved
P1-20 CPMK CAPTURE – Masking Range Setting
Address: 0128H
0129H
Operational
Interface：
Panel/Software Communication
Related Section: N/A
Default：
0
Control
Mode：
ALL
Unit：
The Pulse Unit of Capture Axis
Range：
0 ~ +100000000
Data
Size：
32-bit
