Delta ASDA-A2 User Manual

ASDA-A2 Chapter 11 Specifications
11-40 Revision February, 2017

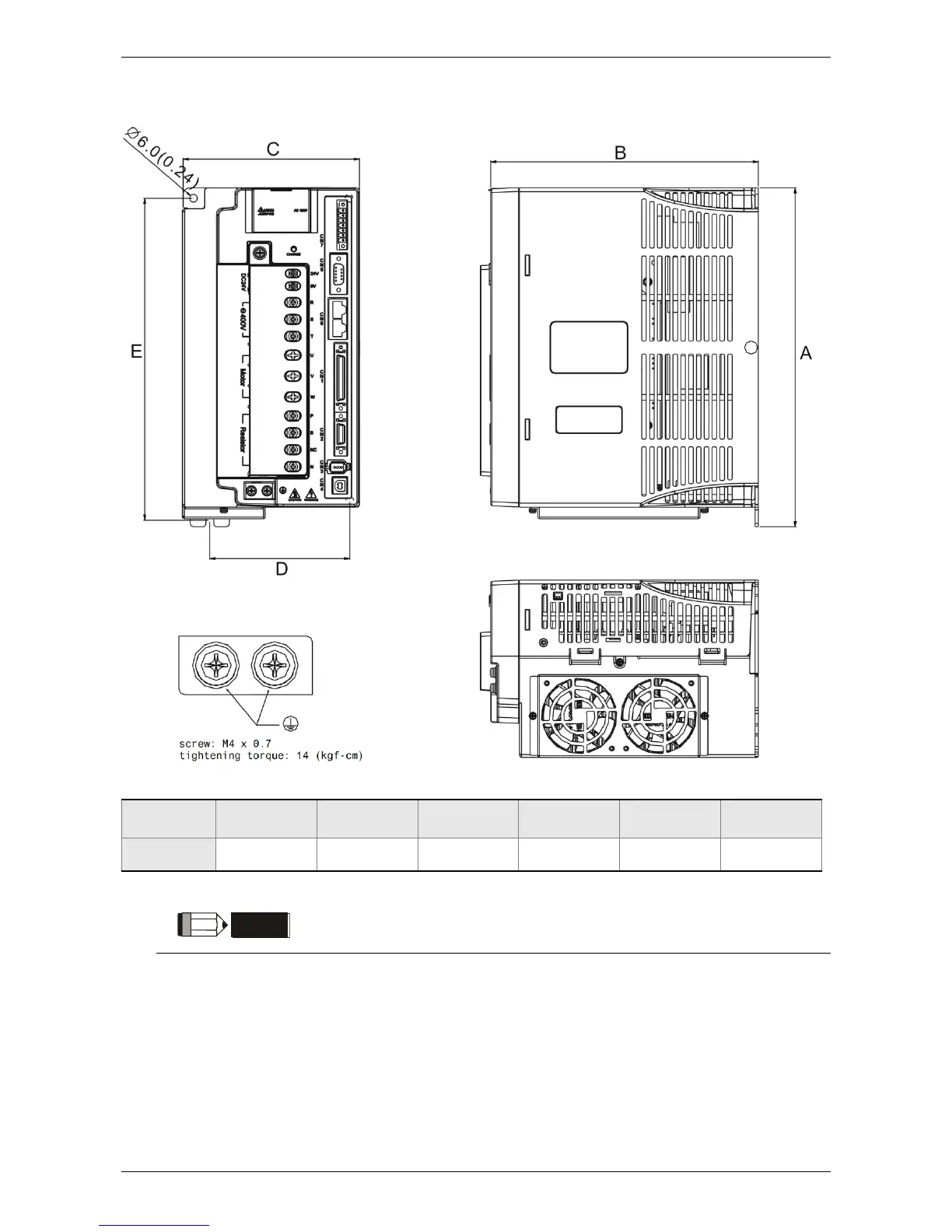

ASD-A2-7543 (7.5 kW)
Power
A
B
C
D
E
Weight
7.5 kW
254.2 (10.01)
205.5 (8.09)
136 (5.35)
107 (4.21)
247 (9.72)
5.5 (12.1)
NOTE
1) Dimensions are in millimeters (inches)
2) Weights are in kilograms (kg) and (pounds (lbs)).
3) The servo drive images shown here may differ from actual product appearance. Please refer to
actual product appearance.
4) Actual measured values are in metric units. Dimensions and weights in (imperial units) are for
reference only.

Delta ASDA-A2 Specifications

General

Control Mode	Position, Speed, Torque
Model	ASDA-A2 Series
Operating Voltage	200 ~ 230VAC / 380 ~ 480VAC
Power Supply	200-230VAC ±10%, single-phase
Communication Interface	RS-485, CANopen
Feedback	Incremental encoder, Absolute encoder
Protection	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit
Operating Temperature	0°C
Storage Temperature	-20°C
Humidity	20% to 90% RH (non-condensing)
Position Control Mode Features	Electronic Cam
Weight	Varies depending on the model. Please refer to the specific model's datasheet.
