Delta ASDA-A2 User Manual

Chapter 8 Parameters ASDA-A2
8-198 Revision February, 2017

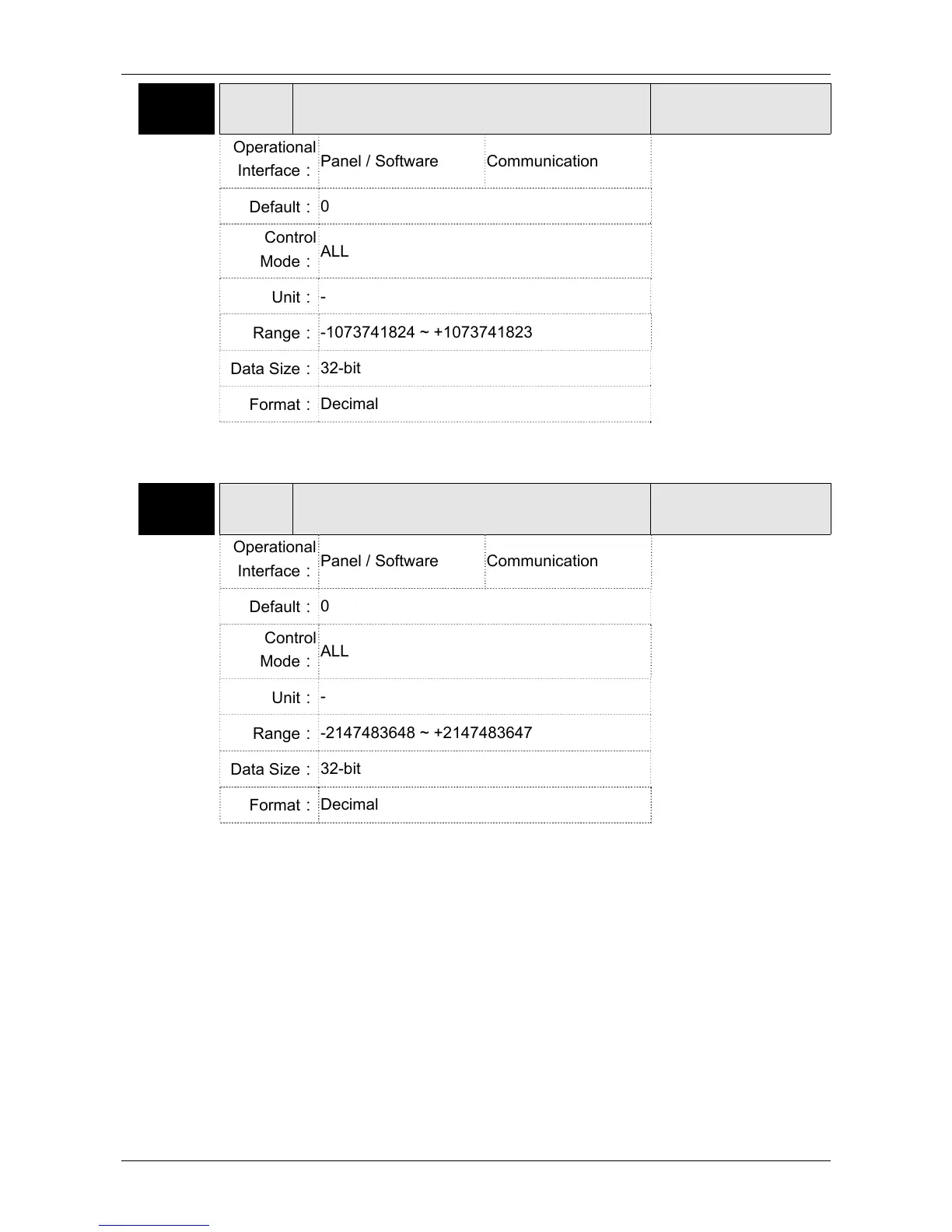

P5-76★
CPRS
CAPTURE－First Position Reset Data
Address: 0598H
0599H
Operational
Interface：
Panel / Software Communication
Related Section:
7.10
Default：
0
Control
Mode：
ALL
Unit：
-
Range：
-1073741824 ~ +1073741823
Data Size：
32-bit
Format：
Decimal
Settings：
Please refer to the description of P5-39 X 1
P5-77■
CSAX
The Position of Synchronous Capture Axis
(CAP SYNC AXES)
Address: 059AH
059BH
Operational
Interface：
Panel / Software Communication
Related Section: -
Default：
0
Control
Mode：
ALL
Unit：
-
Range：
-2147483648 ~ +2147483647
Data Size：
32-bit
Format：
Decimal
Settings：
The position of this axis will synchronize with CAP signal. That is to
say, when activating CAP every two times, the motor moving distance
of this axis is the value of P5-78. (There is no accumulative error and
only in single-way operation) The synchronous capture axis can be the
source of Master.
