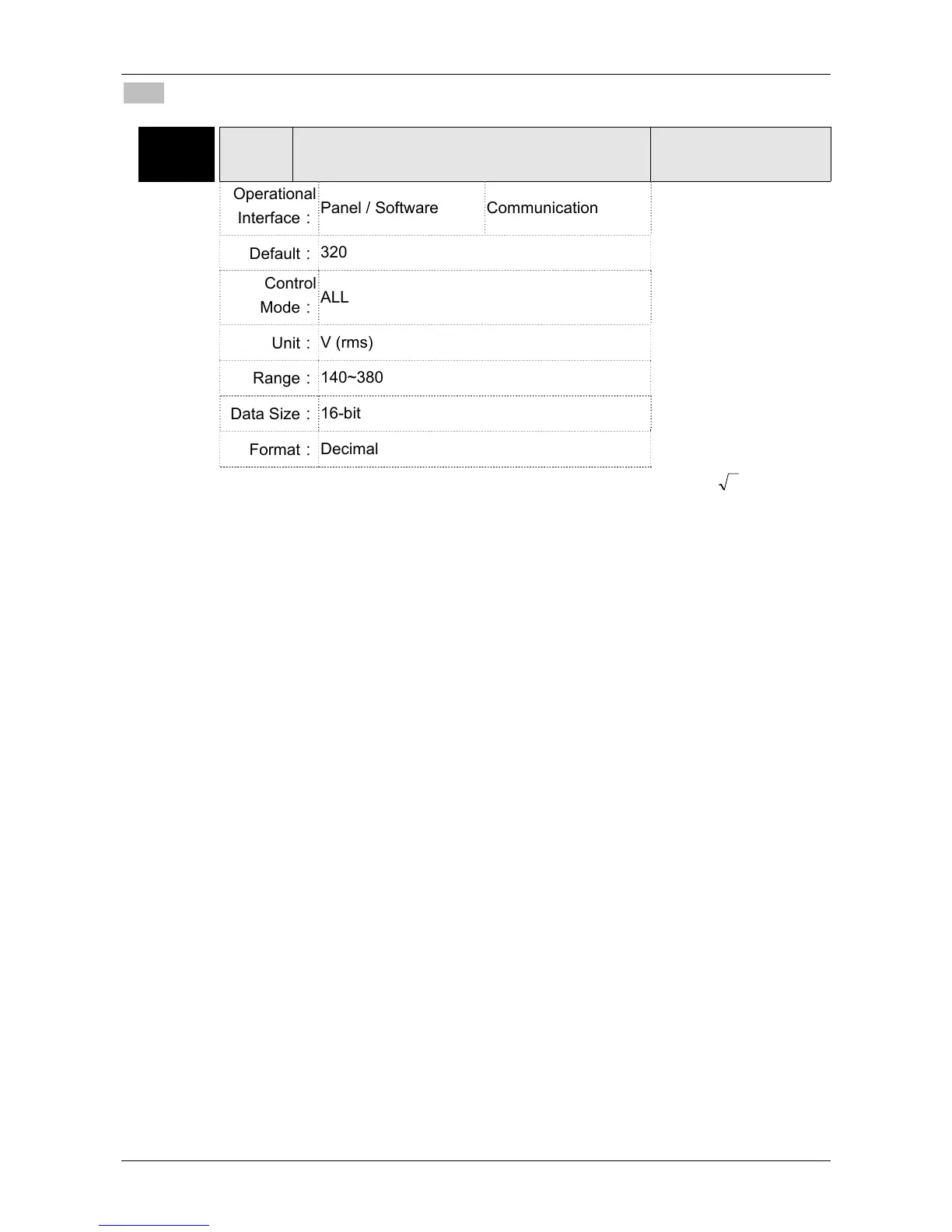

Chapter 8 Parameters
ASD
A-A2
8-160
Revision February, 2017
400V Series
P4-24
LVL
Level of Under voltage Error
Address: 0430H
0431H
Operational
Interface
：
Panel / Software
Communication
Related Section: -
Default
：
320
Control
Mode
：
ALL
Unit
：
V (rms)
Range
：
140~380
Data Size
：
16-bit
Format
：
Decimal
Settings
：
When the voltage of DC BUS is lower than P4-24*
2
, the under
voltage alarm occurs.
410
412
