Delta ASDA-A2 User Manual

ASDA-A2 Chapter 7 Motion Control
7-36 Revision February, 2017

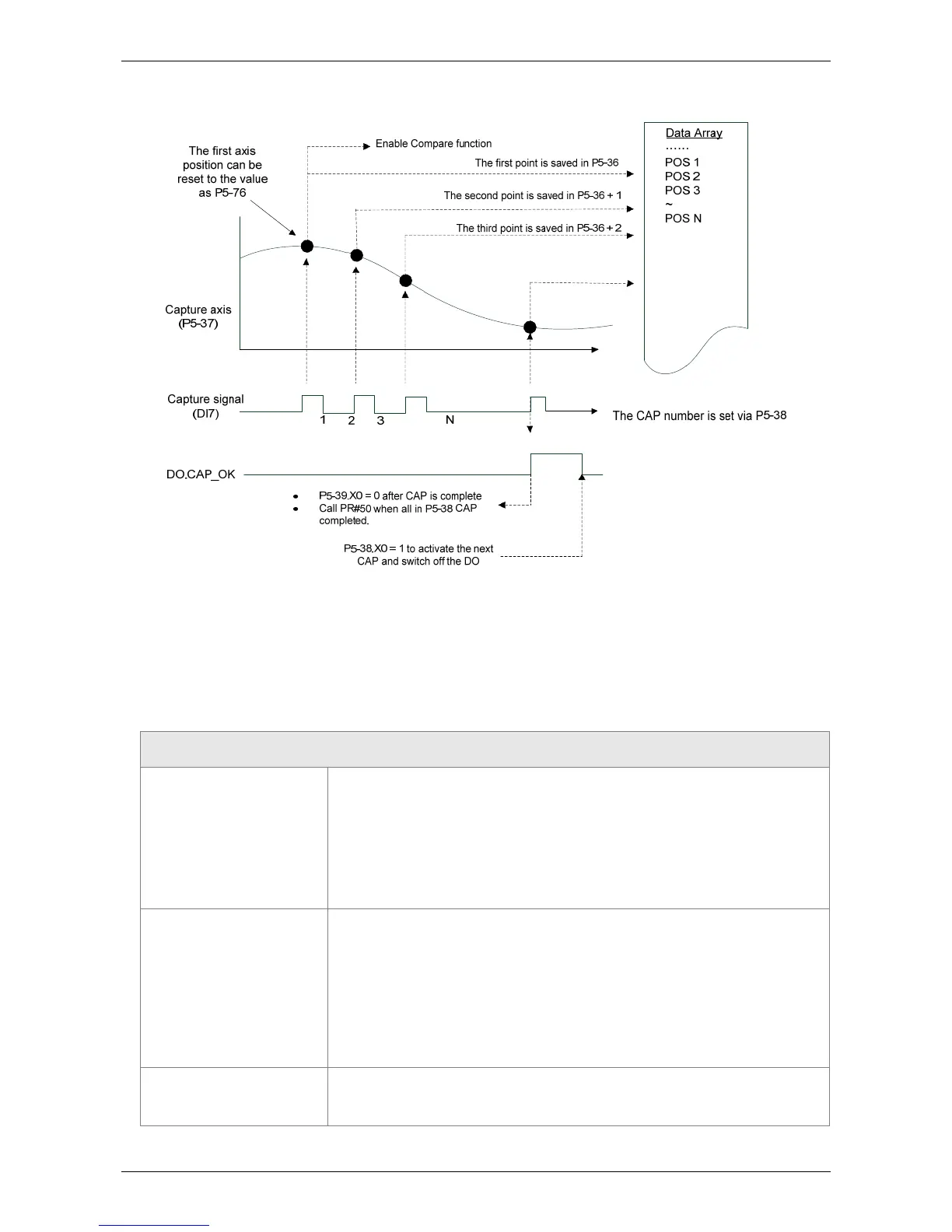

The diagram of CAP:
7.11.2 Function Description of COMPARE (Data Compare)
The concept of COMPARE is to compare the instant position of motion axis with the value which
is saved in data array. Then output DO3 after the COMPARE condition is established for motion
control. Since COMPARE is finished by hardware, there is no problem of software delay. It also
can accurately compare the high-speed motion axis. The COMPARE features provided by this
servo drive is as follows.
COMPARE Features
Pulse Source
 Main Encoder of the Motor
 Auxiliary Encoder (linear scale)
 Pulse Command
 CAP Axis (set by CAPTURE). When selecting this axis, CAP
source cannot be changed.
The selected axis is displayed in P5-57. Before compare, the
default value can be written in.
Output Signal
 Output by DO4 and the response time is 5 usec.
Note: DO3 directly connects to COMPARE hardware, thus,
regardless the setting value of P2-20 (DO Code), the function
can work. When using COMPARE, in order to avoid DO error,
the system will force to disable DO function, which means the
setting will be P2-21 = 0x0100 automatically. Since the value
is not written into EEPROM, P2-21 will return to the default
value after re-power on.
Output Method
 Pulse output can select contact A/B.
 It is capable to continuously output more than one point.
 It can set the pulse output time.

Delta ASDA-A2 Specifications

General

Control Mode	Position, Speed, Torque
Model	ASDA-A2 Series
Operating Voltage	200 ~ 230VAC / 380 ~ 480VAC
Power Supply	200-230VAC ±10%, single-phase
Communication Interface	RS-485, CANopen
Feedback	Incremental encoder, Absolute encoder
Protection	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit
Operating Temperature	0°C
Storage Temperature	-20°C
Humidity	20% to 90% RH (non-condensing)
Position Control Mode Features	Electronic Cam
Weight	Varies depending on the model. Please refer to the specific model's datasheet.
