Delta ASDA-A2 User Manual

ASDA-A2 Appendix A Accessories
Revision February, 2017 A-5

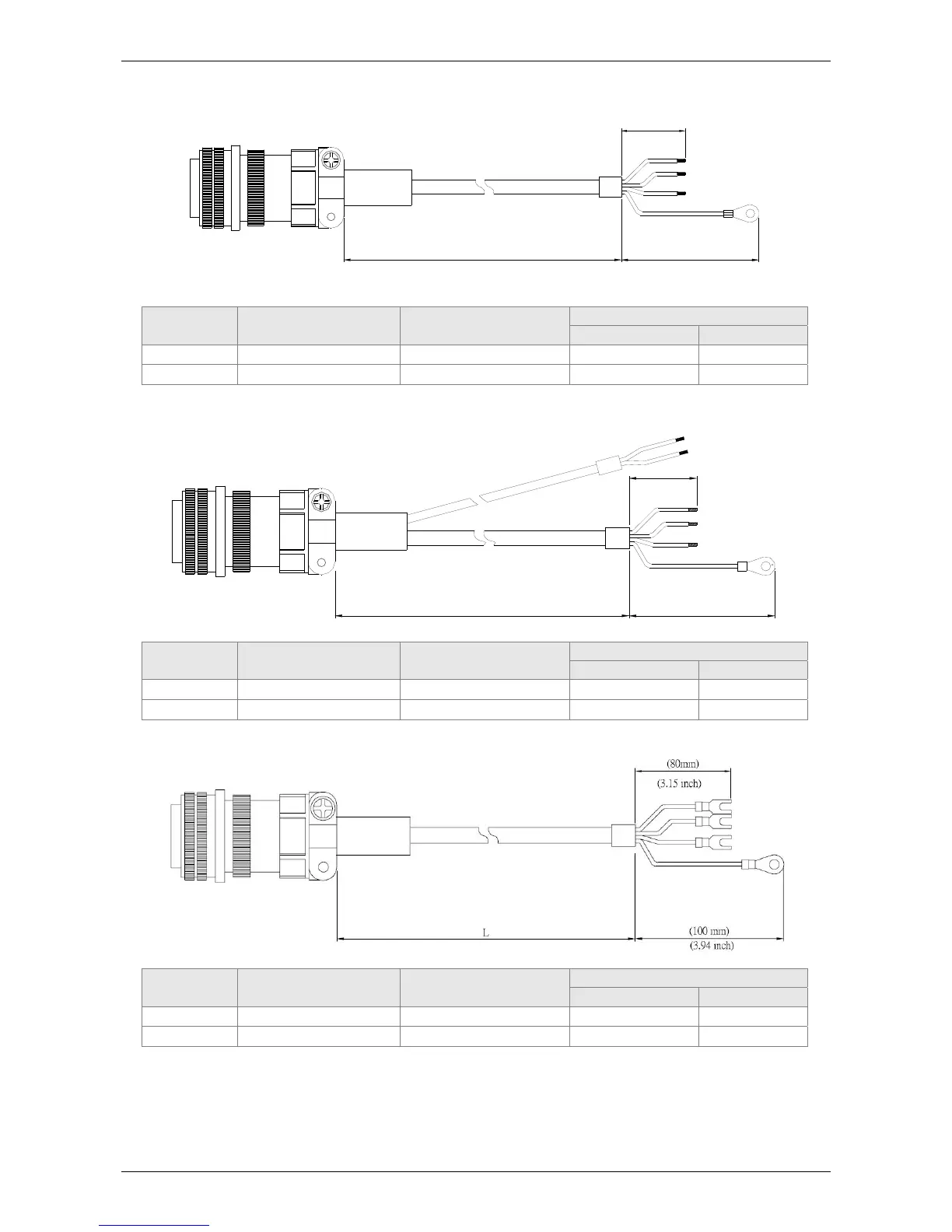

Delta Part Number: ASD-CAPW1003, ASD-CAPW1005
Title Part No. Straight
L
mm inch
1 ASD-CAPW1003 3106A-20-18S
3000  100 118  4
2 ASD-CAPW1005 3106A-20-18S
5000  100 197  4
Delta Part Number: ASD-CAPW1103, ASD-CAPW1105
Title Part No. Straight
L
mm inch
1 ASD-CAPW1103 3106A-20-18S
3000  100 118  4
2 ASD-CAPW1105 3106A-20-18S
5000  100 197  4
Delta Part Number: ASDB-CAPW1203, ASDB-CAPW1205
Title Part No. Straight
L
mm inch
1 ASD-CAPW1203 3106A-20-18S
3000  100 118  4
2 ASD-CAPW1205 3106A-20-18S
5000  100 197  4
L
(80 mm)
(3.15 inch)
(50mm)
(1.97 inch)
L
(80 mm)
(50mm)
(3.15 inch)
(1.97 inch)

Delta ASDA-A2 Specifications

General

Control Mode	Position, Speed, Torque
Model	ASDA-A2 Series
Operating Voltage	200 ~ 230VAC / 380 ~ 480VAC
Power Supply	200-230VAC ±10%, single-phase
Communication Interface	RS-485, CANopen
Feedback	Incremental encoder, Absolute encoder
Protection	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit
Operating Temperature	0°C
Storage Temperature	-20°C
Humidity	20% to 90% RH (non-condensing)
Position Control Mode Features	Electronic Cam
Weight	Varies depending on the model. Please refer to the specific model's datasheet.
