Delta ASDA-A2 User Manual

ASDA-A2 Chapter 4 Panel Display and Operation
4-12 Revision February, 2017

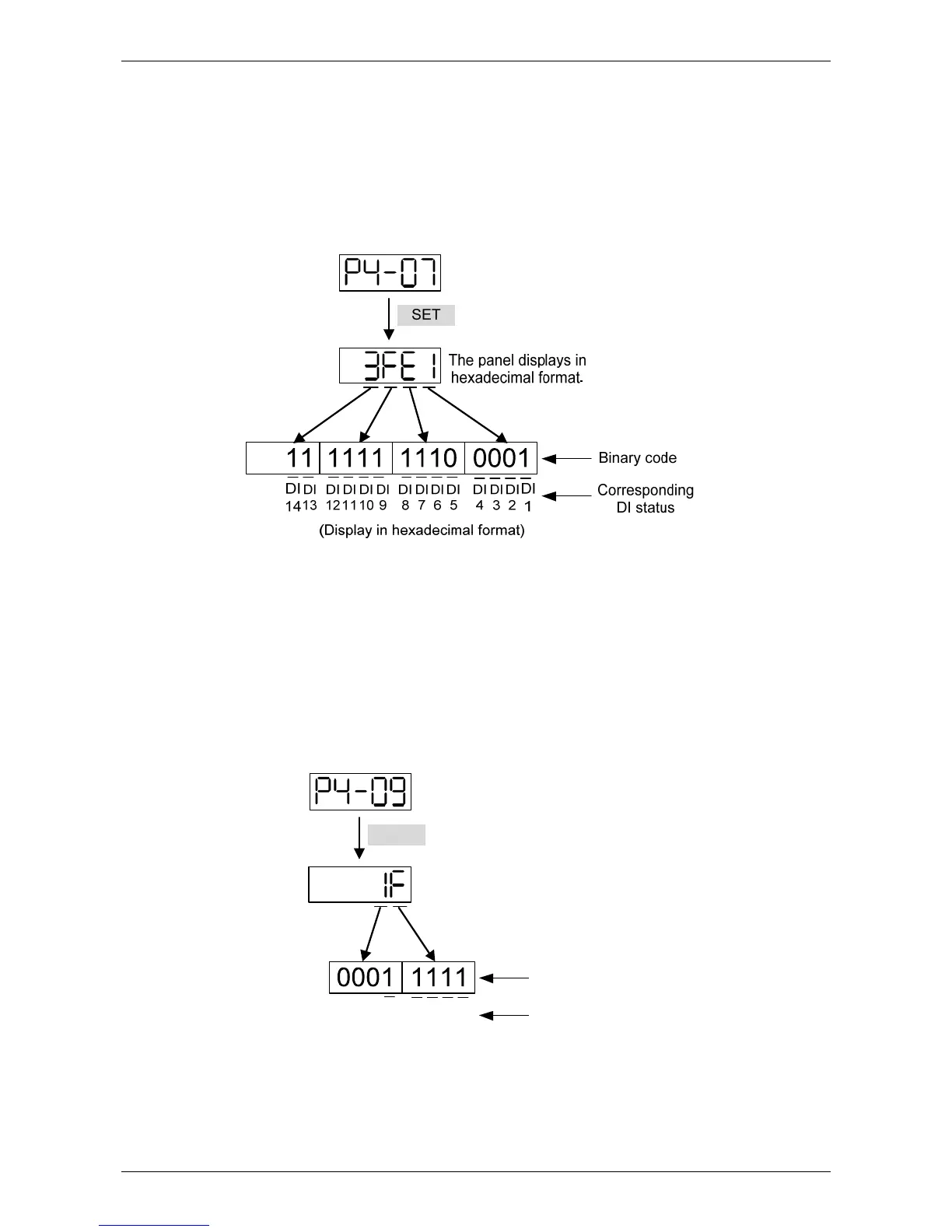

4.4.4 Digital Input Diagnosis Operation
Enter into the Digital Input Diagnosis Mode by the following setting methods. When the external
output signal DI1~DI8 is ON, the corresponding signal will be shown on the panel. It is displayed
by bit. When it shows bit, it means it is ON.
For example, if it shows 3FE1, E is in hexadecimal format, it will be 1100 when it transfers to binary
format. Then, DI6~DI8 is ON.
4.4.5 Digital Output Diagnosis Operation
Enter into the Digital Output Diagnosis Mode by the following setting methods. The output signal
DO1~DO5 is ON and the corresponding signal will be shown on the panel. It is displayed by bit.
When it shows bit, it means it is ON.
For example, if it shows 1F, F is in hexadecimal format, it will be 1111 when it transfers to binary
format. Then, DO1~DO4 is ON.
SET
DO
5
DO
4
DO
3
DO
2
DO
1
Corresponding
DO status
Binary code
The panel displays in
hexadecimal format
(Display in hexadecimal format)

Delta ASDA-A2 Specifications

General

Control Mode	Position, Speed, Torque
Model	ASDA-A2 Series
Operating Voltage	200 ~ 230VAC / 380 ~ 480VAC
Power Supply	200-230VAC ±10%, single-phase
Communication Interface	RS-485, CANopen
Feedback	Incremental encoder, Absolute encoder
Protection	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit
Operating Temperature	0°C
Storage Temperature	-20°C
Humidity	20% to 90% RH (non-condensing)
Position Control Mode Features	Electronic Cam
Weight	Varies depending on the model. Please refer to the specific model's datasheet.
