Delta ASDA-A2 User Manual

Chapter 1 Inspection and Model Explanation ASDA-A2
Revision February, 2017 1-3
1.2 Product Model

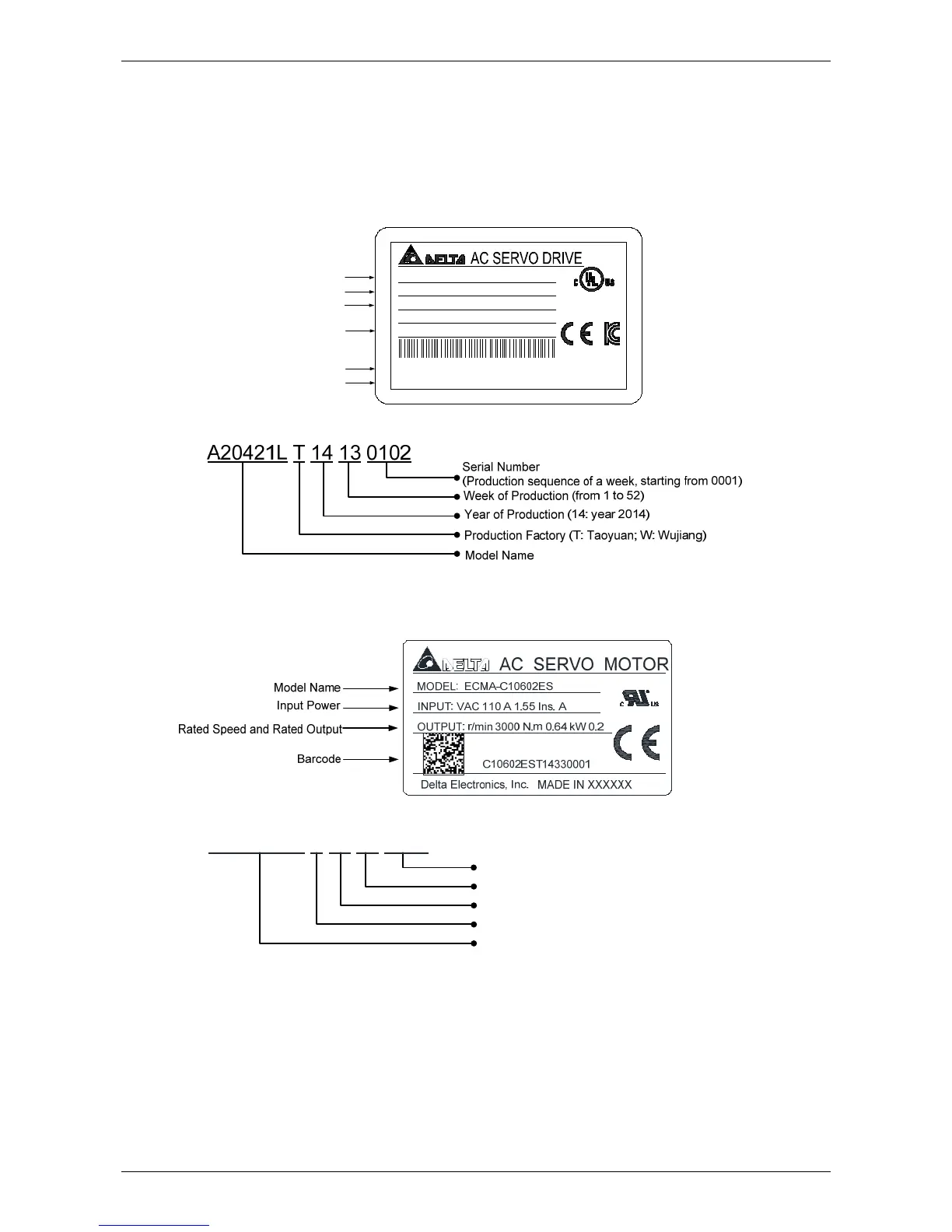

1.2.1 Nameplate Information
ASDA-A2 Series Servo Drive
 Nameplate Information
Model Name
Capacity Specification
Applicable power Supply
Barcode
Firmware Version
Rated Current Output
DELTA ELECTRONICS, INC.
LISTED
IND. CONT. EQ.
19XK
MODEL : ASD-A2-0421-L
POWER : 400W
INPUT : 200~230V 3PH 50/60Hz 1.86A
200~230V 1PH 50/60Hz 3.22A
OUTPUT : 110V 0-250Hz 2.6A
A20421LT14130102
01.34
MADE IN TAIWAN
 Serial Number
ECMA Series Servo Motor
 Nameplate Information
 Serial Number
Serial Number
(Production sequence of a week, starting from 0001)
Week of Production (from 1 to 52)
Year of Production (14: year 2014)
Production Factory (T: Taoyuan; W: Wujiang)
Model Name
C10602ES T 14 33 0001

Delta ASDA-A2 Specifications

General

Control Mode	Position, Speed, Torque
Model	ASDA-A2 Series
Operating Voltage	200 ~ 230VAC / 380 ~ 480VAC
Power Supply	200-230VAC ±10%, single-phase
Communication Interface	RS-485, CANopen
Feedback	Incremental encoder, Absolute encoder
Protection	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit
Operating Temperature	0°C
Storage Temperature	-20°C
Humidity	20% to 90% RH (non-condensing)
Position Control Mode Features	Electronic Cam
Weight	Varies depending on the model. Please refer to the specific model's datasheet.
