Delta ASDA-A2 User Manual

ASDA-A2 Chapter 8 Parameters
Revision February, 2017 8-27

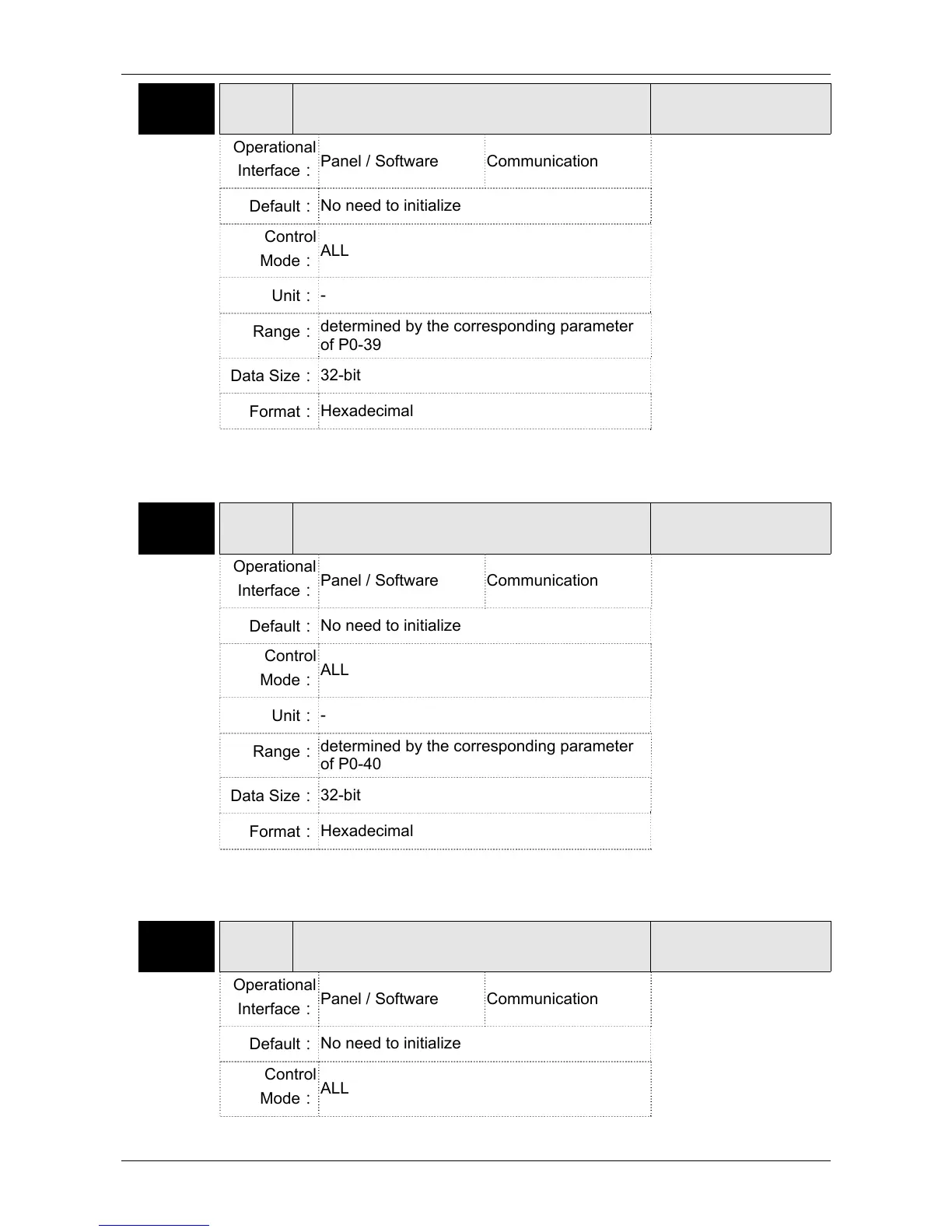

P0-29 MAP5 Mapping Parameter # 5
Address: 003AH
003BH
Operational
Interface：
Panel / Software Communication
Related Section:
4.3.5
Default：
No need to initialize
Control
Mode：
ALL
Unit：
-
Range：
determined by the corresponding parameter
of P0-39
Data Size：
32-bit
Format：
Hexadecimal
Settings：
The using method is the same as P0-25. The mapping target is set by
parameter P0-39.
P0-30 MAP6 Mapping Parameter # 6
Address: 003CH
003DH
Operational
Interface：
Panel / Software Communication
Related Section:
4.3.5
Default：
No need to initialize
Control
Mode：
ALL
Unit：
-
Range：
determined by the corresponding parameter
of P0-40
Data Size：
32-bit
Format：
Hexadecimal
Settings：
The using method is the same as P0-25. The mapping target is set by
parameter P0-40.
P0-31 MAP7 Mapping Parameter # 7
Address: 003EH
003FH
Operational
Interface：
Panel / Software Communication
Related Section:
4.3.5
Default：
No need to initialize
Control
Mode：
ALL

Delta ASDA-A2 Specifications

General

Control Mode	Position, Speed, Torque
Model	ASDA-A2 Series
Operating Voltage	200 ~ 230VAC / 380 ~ 480VAC
Power Supply	200-230VAC ±10%, single-phase
Communication Interface	RS-485, CANopen
Feedback	Incremental encoder, Absolute encoder
Protection	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit
Operating Temperature	0°C
Storage Temperature	-20°C
Humidity	20% to 90% RH (non-condensing)
Position Control Mode Features	Electronic Cam
Weight	Varies depending on the model. Please refer to the specific model's datasheet.
