12.2.2 How to Install a Battery

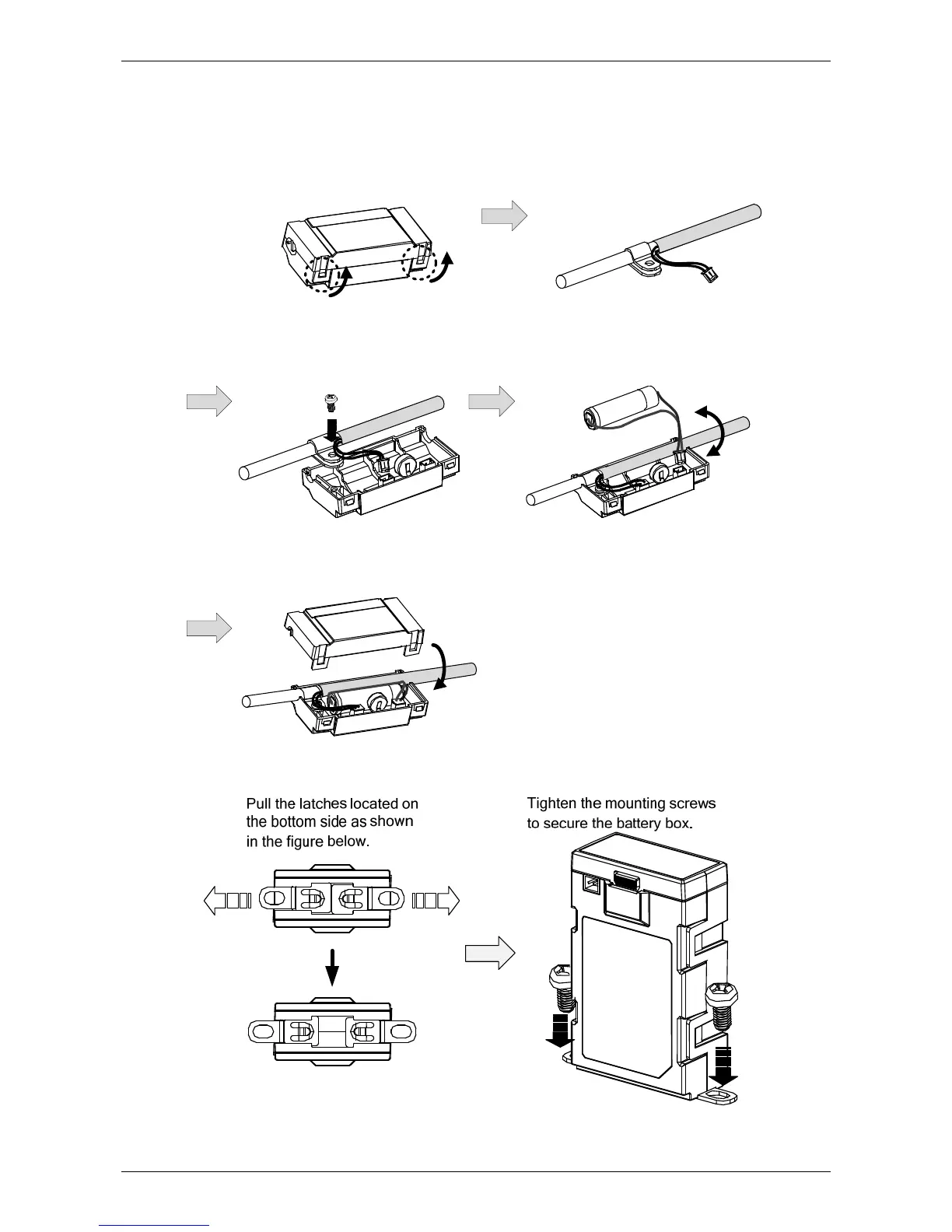

Single Battery Box
②
①
Put on the clip on the cable.
Please note that the position of
the clip should be very close to
the heat shrink tube.
Install a new battery.
① Plug in the connection cable
② Turn the screw to tighten it.
Loosen the latches of both
sides to open the top cover.
Place the cables into the box
and put the cover on the box.
Heat Shrink
Tube
Clip
Dual Battery Box

Delta ASDA-A2 Specifications

General

Control Mode	Position, Speed, Torque
Model	ASDA-A2 Series
Operating Voltage	200 ~ 230VAC / 380 ~ 480VAC
Power Supply	200-230VAC ±10%, single-phase
Communication Interface	RS-485, CANopen
Feedback	Incremental encoder, Absolute encoder
Protection	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit
Operating Temperature	0°C
Storage Temperature	-20°C
Humidity	20% to 90% RH (non-condensing)
Position Control Mode Features	Electronic Cam
Weight	Varies depending on the model. Please refer to the specific model's datasheet.
