Delta ASDA-A2 User Manual

ASDA-A2 Chapter 8 Parameters
Revision February, 2017 8-77
Settings：
220V:
Model Default
1.5 kW (included) or below 40Ω
2 kW ~ 4.5 kW (included) 20Ω
5.5 kW 15Ω
7.5 kW 15Ω
400V:
Model Default
750W ~ 7.5kW 80Ω
Please refer to the description of P1-53 for the setting value when
connecting regenerative resistor with different method.

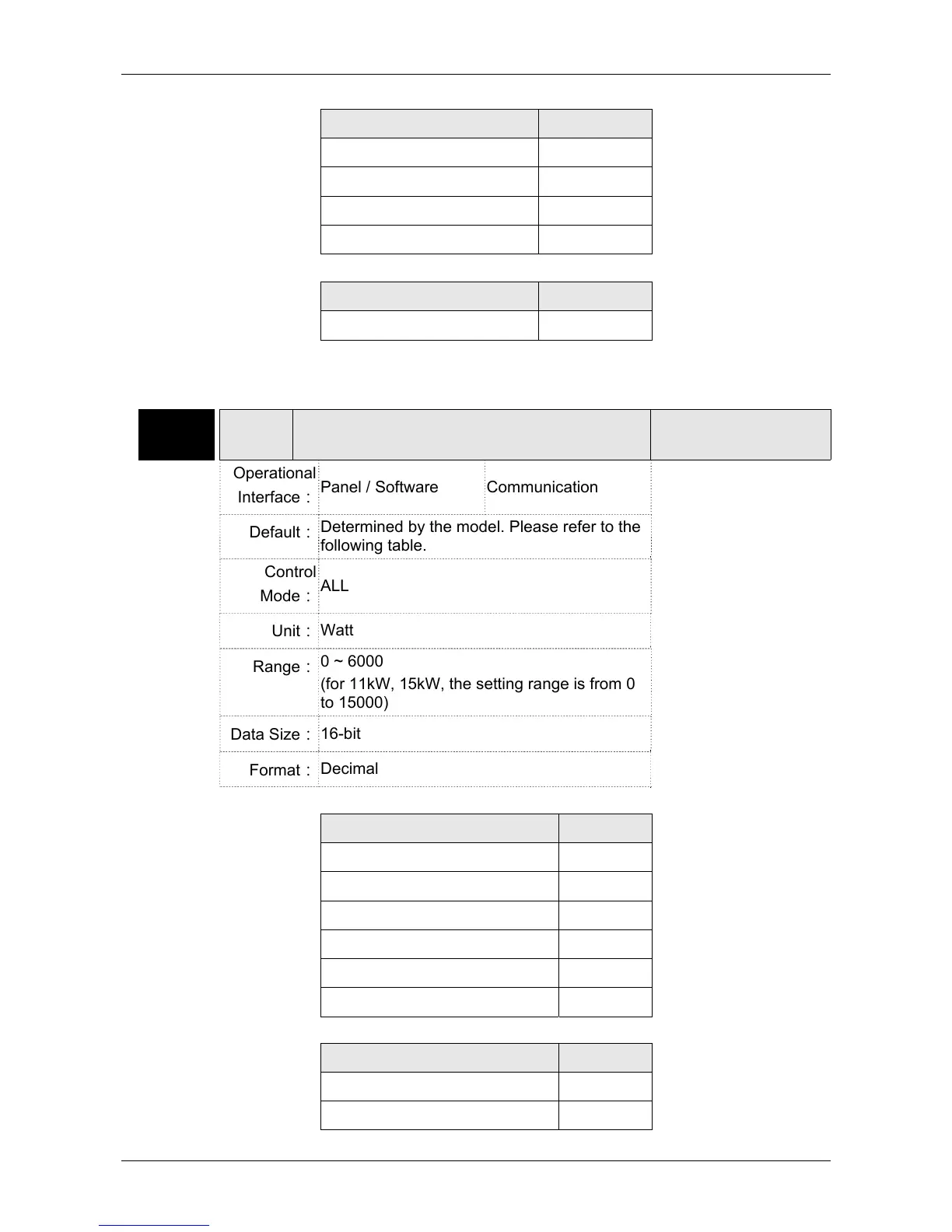

P1-53 RES2 Regenerative Resistor Capacity
Address: 016AH
016BH
Operational
Interface：
Panel / Software Communication
Related Section:
2.7
Default：
Determined by the model. Please refer to the
following table.
Control
Mode：
ALL
Unit：
Watt
Range：
0 ~ 6000
(for 11kW, 15kW, the setting range is from 0
to 15000)
Data Size：
16-bit
Format：
Decimal
Settings：
220V
Model Default
200W (included) or below 0W
400W 40W
750W ~ 1.5kW 60W
2 kW ~ 4.5 kW (included) 100W
5.5 kW 0W
7.5 kW 0W
400V
Model Default
750W ~ 1.5kW 100W
2 kW ~ 4.5 kW 0W

Delta ASDA-A2 Specifications

General

Control Mode	Position, Speed, Torque
Model	ASDA-A2 Series
Operating Voltage	200 ~ 230VAC / 380 ~ 480VAC
Power Supply	200-230VAC ±10%, single-phase
Communication Interface	RS-485, CANopen
Feedback	Incremental encoder, Absolute encoder
Protection	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit
Operating Temperature	0°C
Storage Temperature	-20°C
Humidity	20% to 90% RH (non-condensing)
Position Control Mode Features	Electronic Cam
Weight	Varies depending on the model. Please refer to the specific model's datasheet.
