Delta ASDA-A2 User Manual

Chapter 8 Parameters ASDA-A2
8-130 Revision February, 2017
and the system will average the errors before correction to avoid
noise. If the error is bigger than filter threshold, the system will use
the new position to do the correction.
YX 00 01 ~ 05F
Function Disabled | Error | <= (1~YX) % : Enabled
*Using filter will allow the alignment action to be more stable and
reduce position error caused by digital input noise.
UZ: Max. Max. allowable correction rate (%)
When alignment correction is enabled, the limitation of max.
correction rate (C) for each correction is defined as follows:
| C | <= (P5-84/P5-83) x P2-73 UZ %
*When the alignment error is too big, to correct this error with one time
may cause the motor vibration or overloading. Using this parameter
will break the alignment correction into several smaller actions to
smooth the correction action. But it may need more time to finish the
alignment correction.
BA: PR number
After each alignment action is done, the shortage of pulse
numbers of slave axis will be stored in this specified PR. Using
this PR can compensate the slave position at appropriate timing.
*If BA is set to 0, it will not store the shortage of pulse numbers to
PR.
DC: Masking range setting (%)
When digital input, ALGN is triggered, no another alignment action
is allowed before the increasing pulse numbers of master axis
exceeds the masking distance (M). After the increasing pulse
numbers of master axis is greater than the distance (M) masking,
the next alignment action is allowed.
The masking distance (M) is defined as follows:
M >= (P5-84/P5-83) x P2-73 DC %
*This masking function only allows increasing pulse input. This function
will not work for decreasing pulse input.

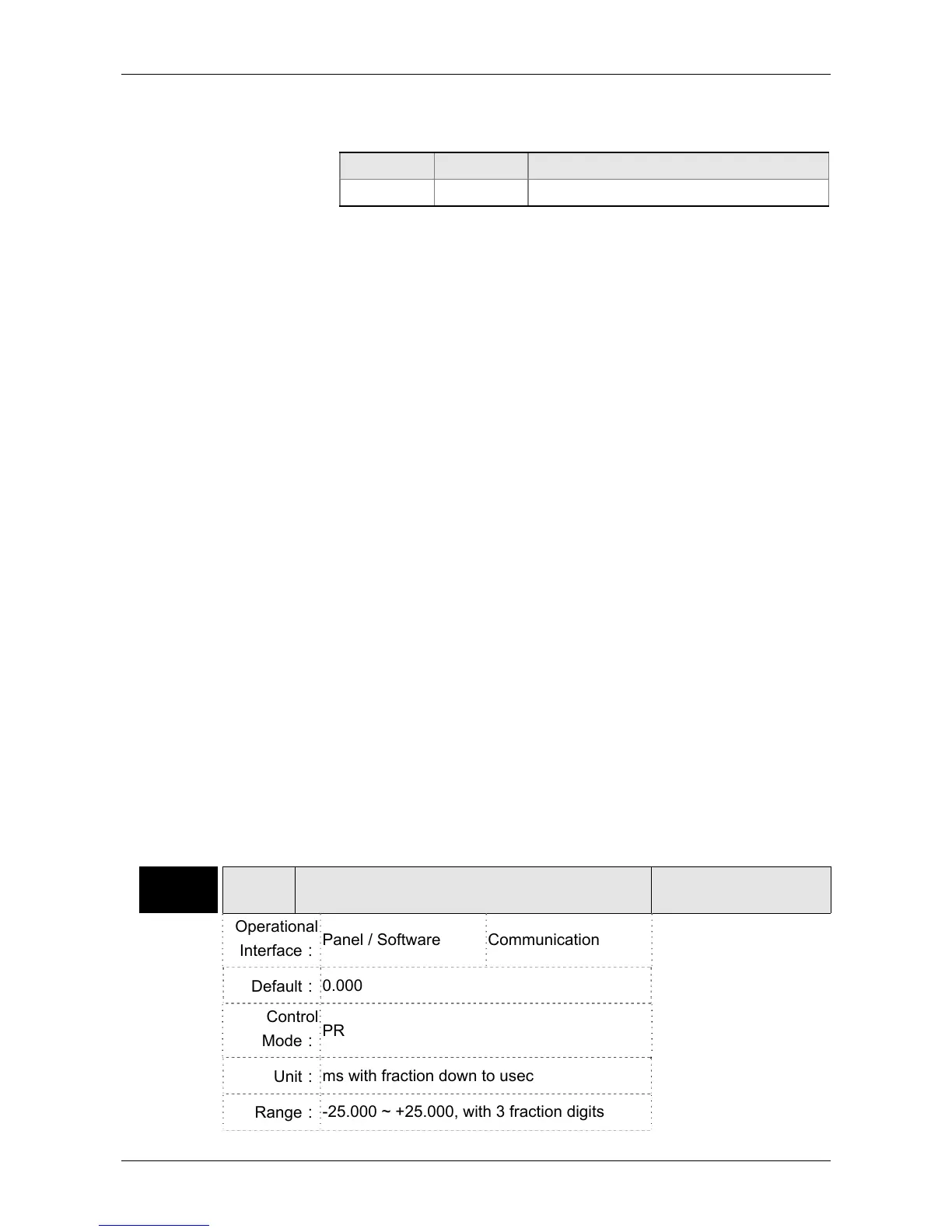

P2-74 ALDY
E-Cam Alignment - DI Delay Time
Compensation
Address: 0294H
0295H
Operational
Interface：
Panel / Software Communication
Related Section: N/A
Default：
0.000
Control
Mode：
PR
Unit：
ms with fraction down to usec
Range：
-25.000 ~ +25.000, with 3 fraction digits

Delta ASDA-A2 Specifications

General

Control Mode	Position, Speed, Torque
Model	ASDA-A2 Series
Operating Voltage	200 ~ 230VAC / 380 ~ 480VAC
Power Supply	200-230VAC ±10%, single-phase
Communication Interface	RS-485, CANopen
Feedback	Incremental encoder, Absolute encoder
Protection	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit
Operating Temperature	0°C
Storage Temperature	-20°C
Humidity	20% to 90% RH (non-condensing)
Position Control Mode Features	Electronic Cam
Weight	Varies depending on the model. Please refer to the specific model's datasheet.
