Delta ASDA-A2 User Manual

Revision February, 2017 9-1
Chapter 9 Communications
9.1 RS-485 & RS-232 Communication Hardware Interface
This servo drive supports the serial communication of RS-485 and RS-232. Communication
function enables the servo drive to access and change parameters inside the system. However,
RS-485 and RS-232 cannot be used at the same time. Parameter P3-05 can use RS-485 and RS-
232 as the communication protocol. Followings are the wiring description.

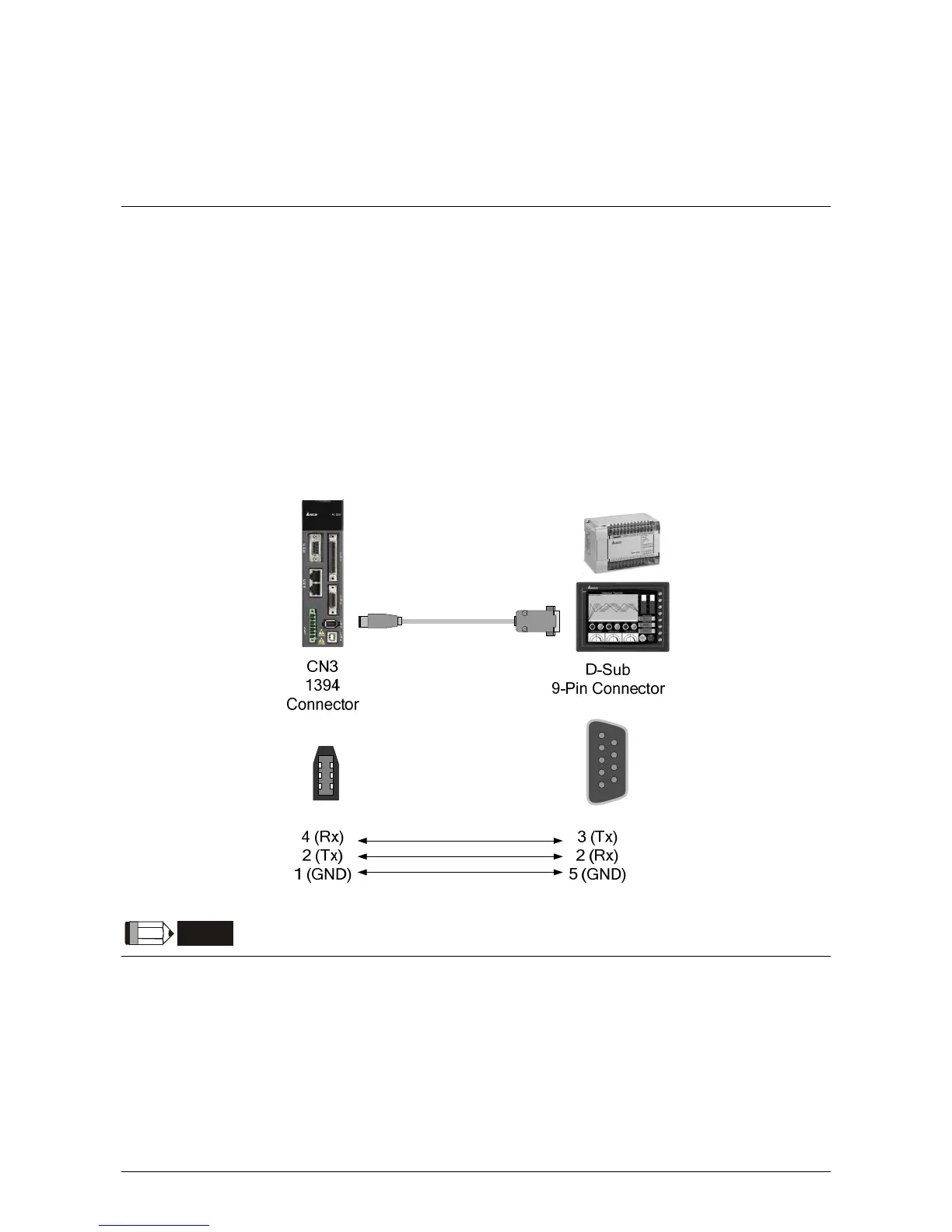

RS-232
 Configuration
NOTE
1) 15-meter communication cable is suitable for less interference environment. If the transmission
speed is over 38400bps, the length of communication cable should be shorter than 3 meters so
as to ensure the accuracy of transmission.
2) Numbers shown in the above diagram represent the pin number of each connector.

Delta ASDA-A2 Specifications

General

Control Mode	Position, Speed, Torque
Model	ASDA-A2 Series
Operating Voltage	200 ~ 230VAC / 380 ~ 480VAC
Power Supply	200-230VAC ±10%, single-phase
Communication Interface	RS-485, CANopen
Feedback	Incremental encoder, Absolute encoder
Protection	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit
Operating Temperature	0°C
Storage Temperature	-20°C
Humidity	20% to 90% RH (non-condensing)
Position Control Mode Features	Electronic Cam
Weight	Varies depending on the model. Please refer to the specific model's datasheet.
