Appendix A
Accessories
ASD
A-A2
A-4
Revision February, 2017

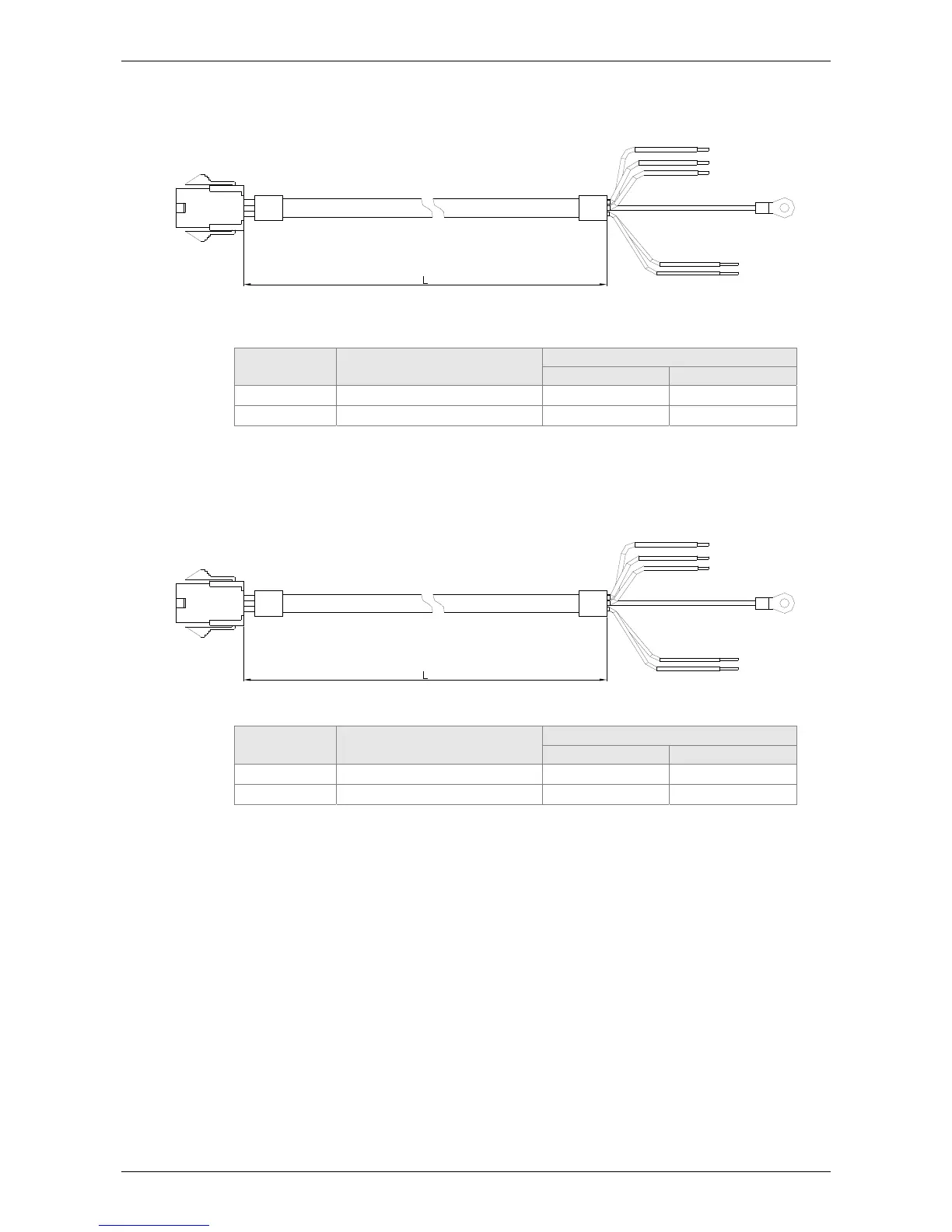

Delta Part Number: ASD-ABPW0103, ASD-ABPW0105
(for 200V series servo drive, with brake cable)
Title
Part No.
L
mm
inch
1 ASD-
ABPW0103
3000
100
118
4
2 ASD-
ABPW0105
5000
100
197
4
Delta Part Number: ASD-CAPW5103, ASD-CAPW5105
(for 400V series servo drive, with brake cable)
Title
Part No.
L
mm
inch
1 ASD-
CAPW5103
3000
100
118
4
2 ASD-
CAPW5105
5000
100
197
4
