Delta ASDA-A2 User Manual

Chapter 3 Wiring ASDA-A2
3-4 Revision February, 2017
3.1.3 Wiring Method
The wiring method of 220V servo drive is divided into single-phase and three-phase. In the
diagram below, Power On is contact a, Power Off and ALRM_RY are contact b. MC is the coil of
magnetic contactor and self-remaining power and is the contact of main power circuit.

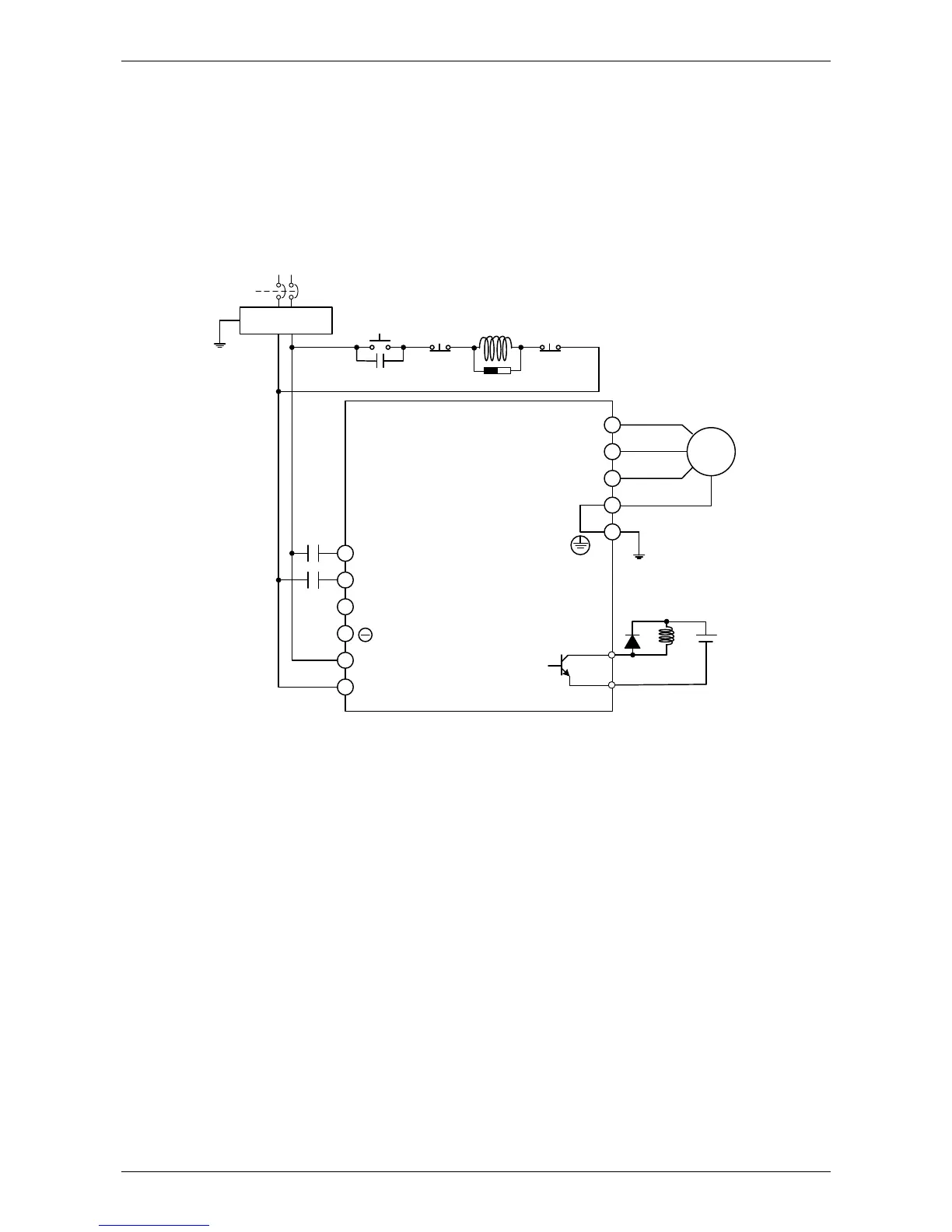

 Wiring Method of Single-phase Power Supply (suitable for 1.5 kW and models below 1.5
kW)
Servo Drive
L1C
L2C
R
S
T
Noise Filter
Motor
MC
SUP
ALRM_RY
Power
On
Power
Off
MC
TR
ALRM_RY
DC24V
DO5+(28)
DO5-(27)
CN1
U
V
W
MCCB
MC

Delta ASDA-A2 Specifications

General

Control Mode	Position, Speed, Torque
Model	ASDA-A2 Series
Operating Voltage	200 ~ 230VAC / 380 ~ 480VAC
Power Supply	200-230VAC ±10%, single-phase
Communication Interface	RS-485, CANopen
Feedback	Incremental encoder, Absolute encoder
Protection	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit
Operating Temperature	0°C
Storage Temperature	-20°C
Humidity	20% to 90% RH (non-condensing)
Position Control Mode Features	Electronic Cam
Weight	Varies depending on the model. Please refer to the specific model's datasheet.
