Chapter 12 Absolute S
ystem
ASD
A-A2
Revision February, 2017
12-5

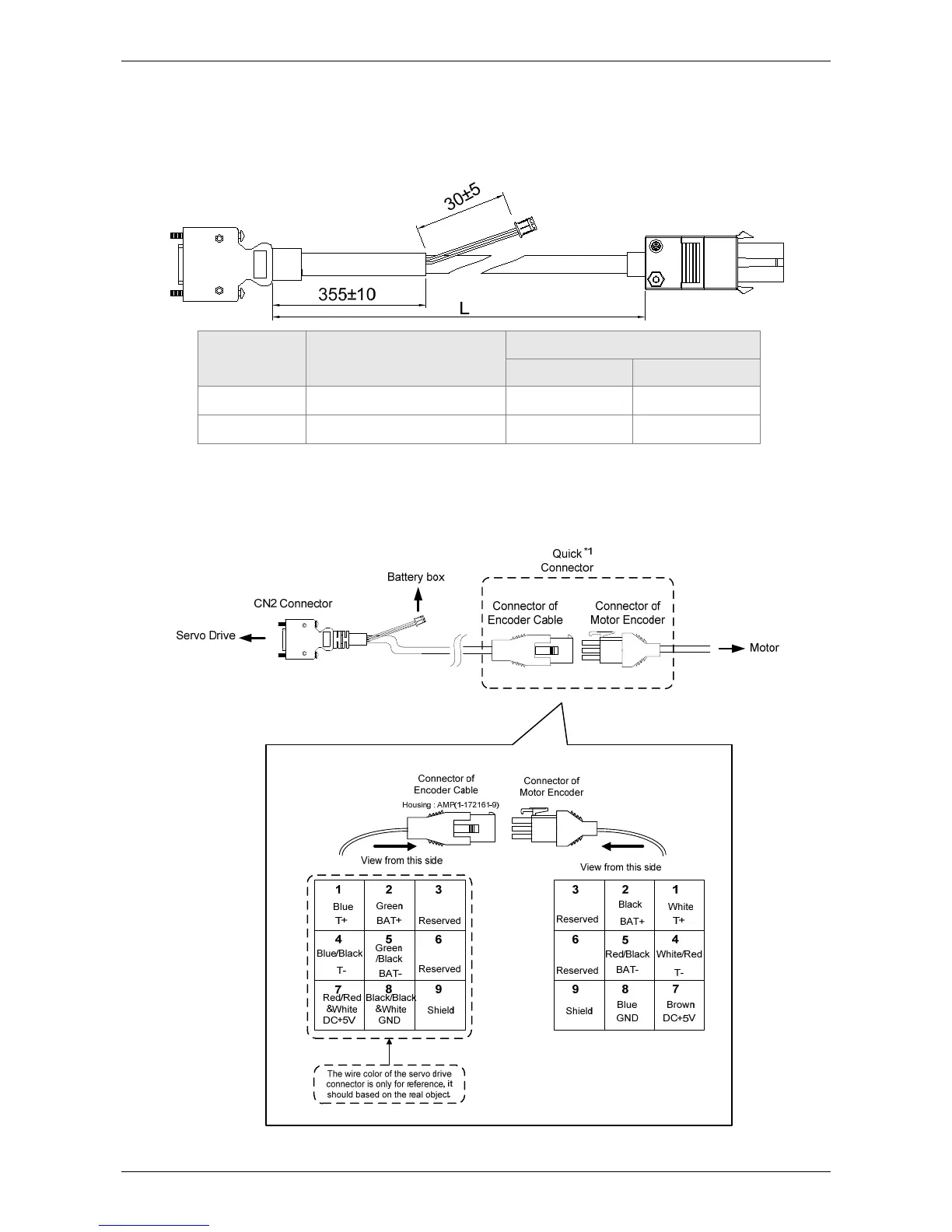

12.1.3 Connection Cables for Absolute Encoder
A. Quick Connector
Delta part number:
ASD-A2EB0003, ASD-A2EB0005
Title
Model Name
L
mm
inch
1 ASD-A2EB0003
3000
100
118
4
2 ASD-A2EB0005
5000
100
197
4
Connection method:
Please conduct the wiring according to the following instructions. Wrong wiring might
cause battery explosion.
