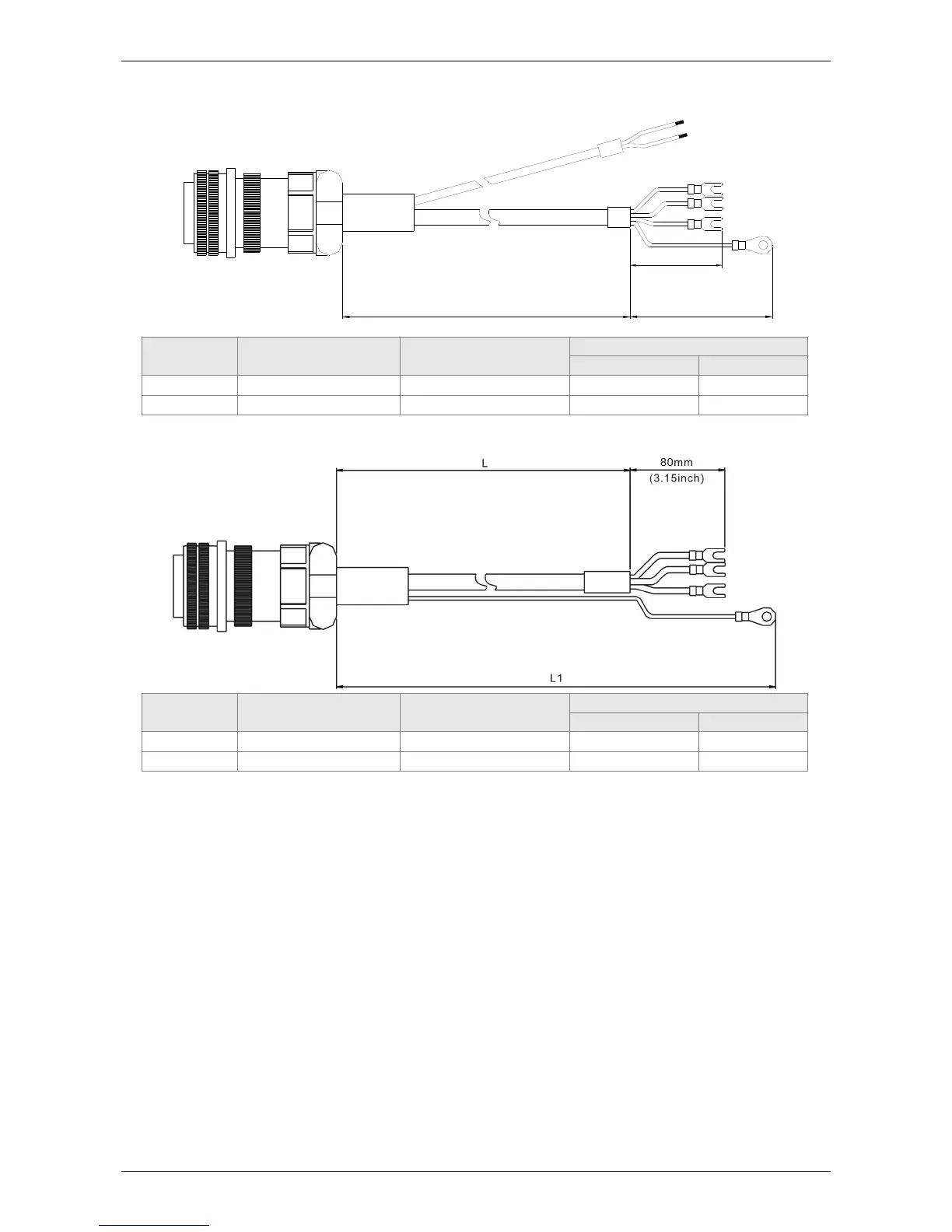

Delta Part Number: ASD-CAPW2303, ASD-CAPW2305 (for motors with brake)
Title Part No. Straight
L
mm inch
1 ASD-CAPW2303 3106A-20-18S
3000  100 118  4
2 ASD-CAPW2305 3106A-20-18S
5000  100 197  4
Delta Part Number: ASD-CAPW3203, ASD-CAPW3205 (for 4.5 kW models)
Title Part No. Straight
L
mm inch
1 ASD-CAPW3203 MS 3106-24-11S
3000  100 118  4
2 ASD-CAPW3205 MS 3106-24-11S
5000  100 197  4
L
(100 mm)
(3.15 inch)
(3.94 inch)
(80mm)

Delta ASDA-A2 Specifications

General

Control Mode	Position, Speed, Torque
Model	ASDA-A2 Series
Operating Voltage	200 ~ 230VAC / 380 ~ 480VAC
Power Supply	200-230VAC ±10%, single-phase
Communication Interface	RS-485, CANopen
Feedback	Incremental encoder, Absolute encoder
Protection	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit
Operating Temperature	0°C
Storage Temperature	-20°C
Humidity	20% to 90% RH (non-condensing)
Position Control Mode Features	Electronic Cam
Weight	Varies depending on the model. Please refer to the specific model's datasheet.
