Chapter 5 Trial operation
and Tuning
ASD
A-A2
5-18
Revision February, 2017
5.6.6 Mechanical Resonance Suppression Method
Three groups of Notch filter are provided to suppress mechanical resonance. Two of them can be
set to the auto resonance suppression and manual adjustment.

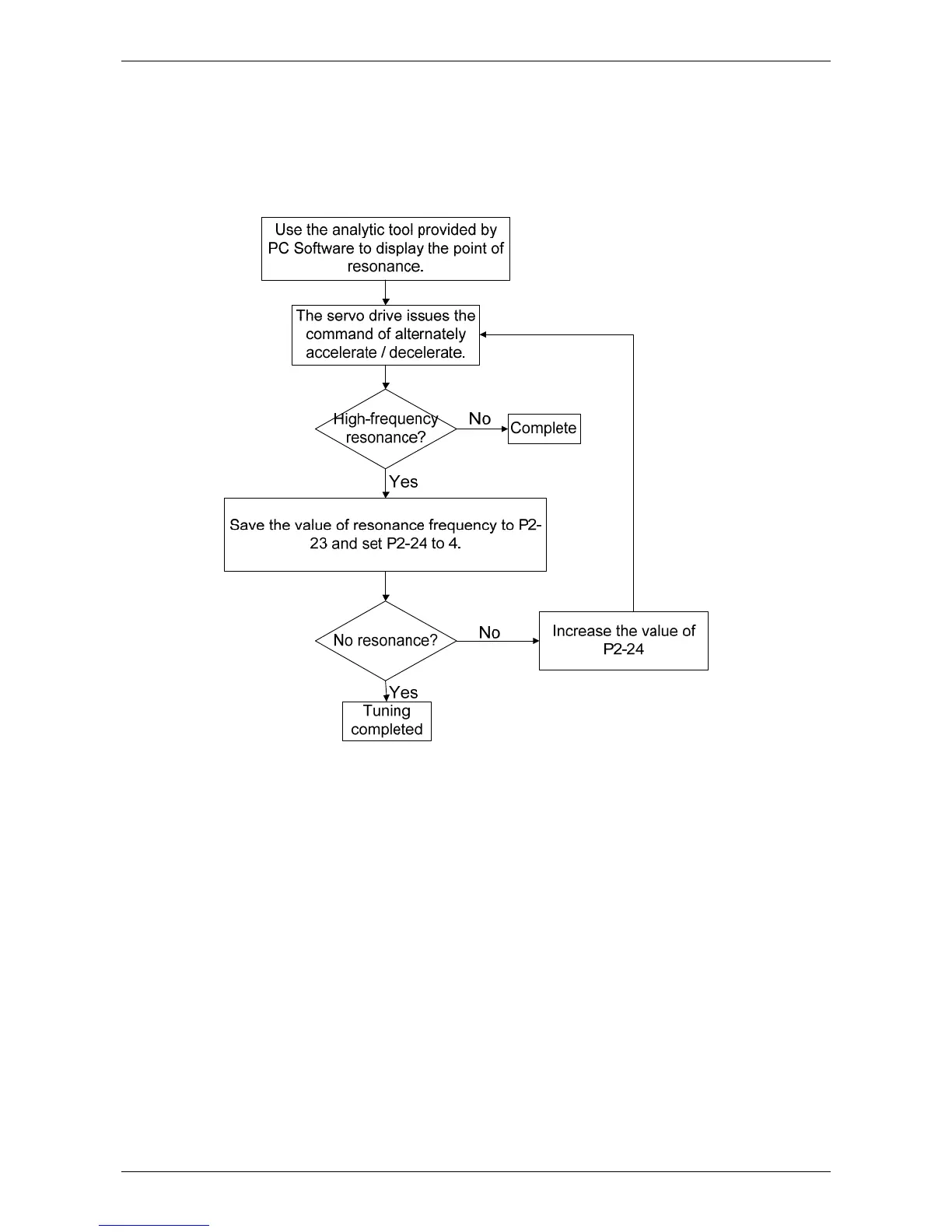

The procedure of manually suppress the resonance is as the followings:
