Delta ASDA-A2 User Manual

ASDA-A2 Appendix A Accessories
Revision February, 2017 A-11
 Absolute Type Encoder Cables

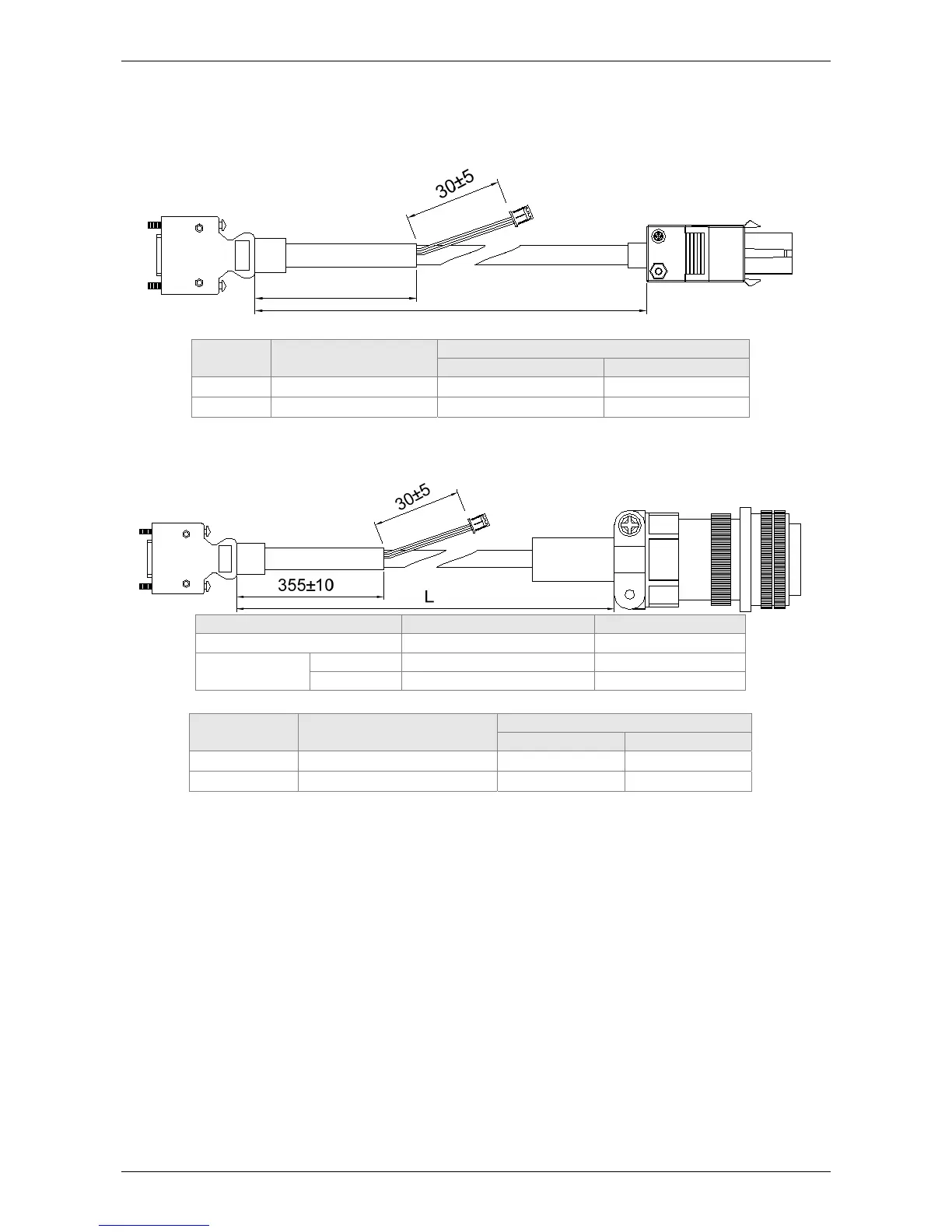

Delta Part Number: ASD-A2EB0003, ASD-A2EB0005
355±10
L
Title Part No.
L
mm inch
1 ASD-A2EB0003
3000  100 118  4
2 ASD-A2EB0005
5000  100 197  4
Delta Part Number: ASD-A2EB1003, ASD-A2EB1005
Title Part No. Manufacturer
MOTOR SIDE 3106A-20-29S -
DRIVE SIDE
PLUG 3M 10120-3000PE 3M
SHELL 3M 10320-52A0-008 3M
Title Model Name
L
mm inch
1 ASD-A2EB1003
3000  100 118  4
2 ASD-A2EB1005
5000  100 197  4

Delta ASDA-A2 Specifications

General

Control Mode	Position, Speed, Torque
Model	ASDA-A2 Series
Operating Voltage	200 ~ 230VAC / 380 ~ 480VAC
Power Supply	200-230VAC ±10%, single-phase
Communication Interface	RS-485, CANopen
Feedback	Incremental encoder, Absolute encoder
Protection	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit
Operating Temperature	0°C
Storage Temperature	-20°C
Humidity	20% to 90% RH (non-condensing)
Position Control Mode Features	Electronic Cam
Weight	Varies depending on the model. Please refer to the specific model's datasheet.
