Delta ASDA-A2 User Manual

Chapter 3 Wiring ASDA-A2
3-64 Revision February, 2017
3.11 CN8 Connector of Battery Box
CN8 connector on servo drive is the power supply for absolute battery box. Please refer to Chapter
12 for further information.

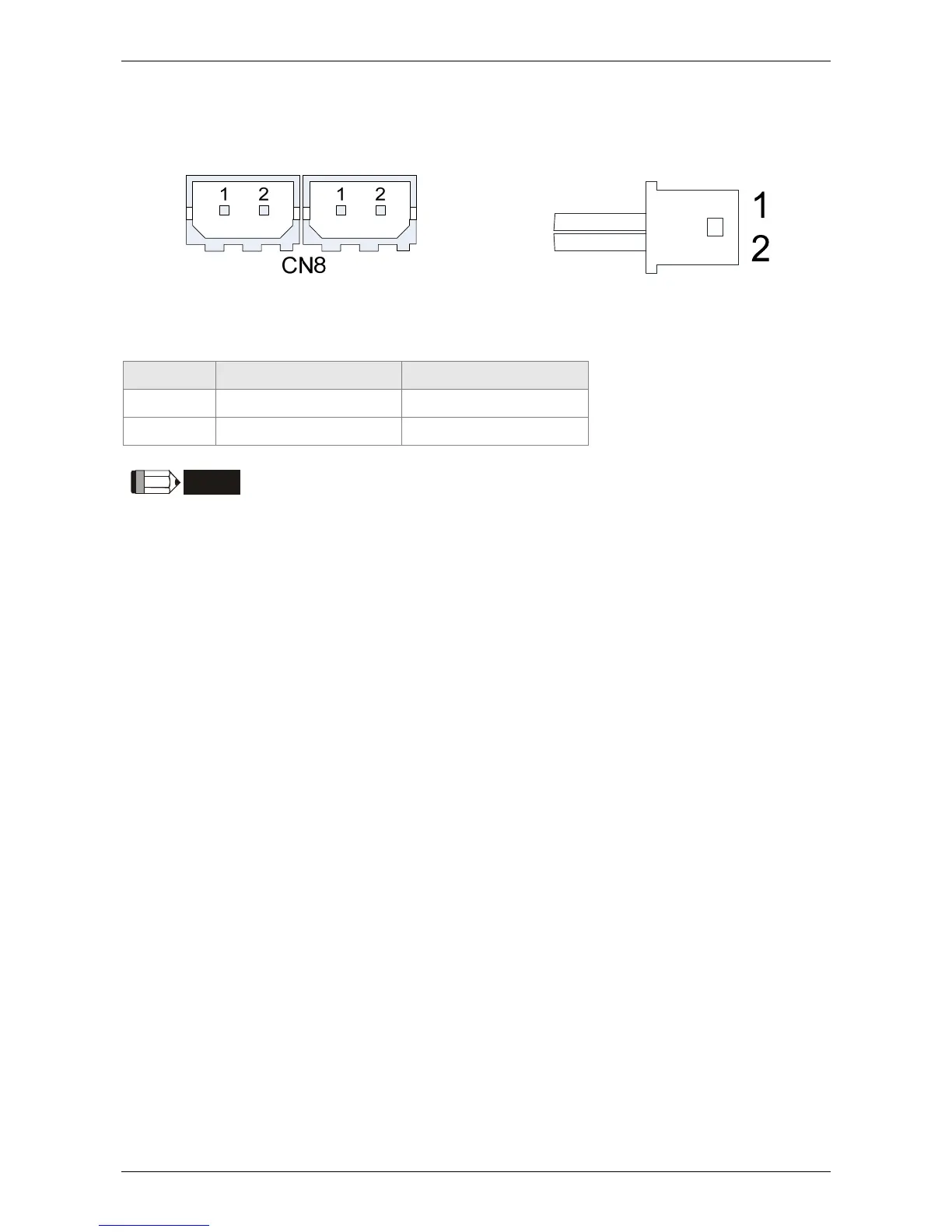

CN8 Connector of Battery Box
Connector
Pin Definition:
Pin No Connector1 Connector2
1 BAT+ BAT+
2 BAT- BAT-
NOTE
Due to the different design of servo drive model, CN8 might have one or two
connectors, which however has the same pin definition.

Delta ASDA-A2 Specifications

General

Control Mode	Position, Speed, Torque
Model	ASDA-A2 Series
Operating Voltage	200 ~ 230VAC / 380 ~ 480VAC
Power Supply	200-230VAC ±10%, single-phase
Communication Interface	RS-485, CANopen
Feedback	Incremental encoder, Absolute encoder
Protection	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit
Operating Temperature	0°C
Storage Temperature	-20°C
Humidity	20% to 90% RH (non-condensing)
Position Control Mode Features	Electronic Cam
Weight	Varies depending on the model. Please refer to the specific model's datasheet.
