Appendix A
Accessories
ASD
A-A2
A-10
Revision February, 2017

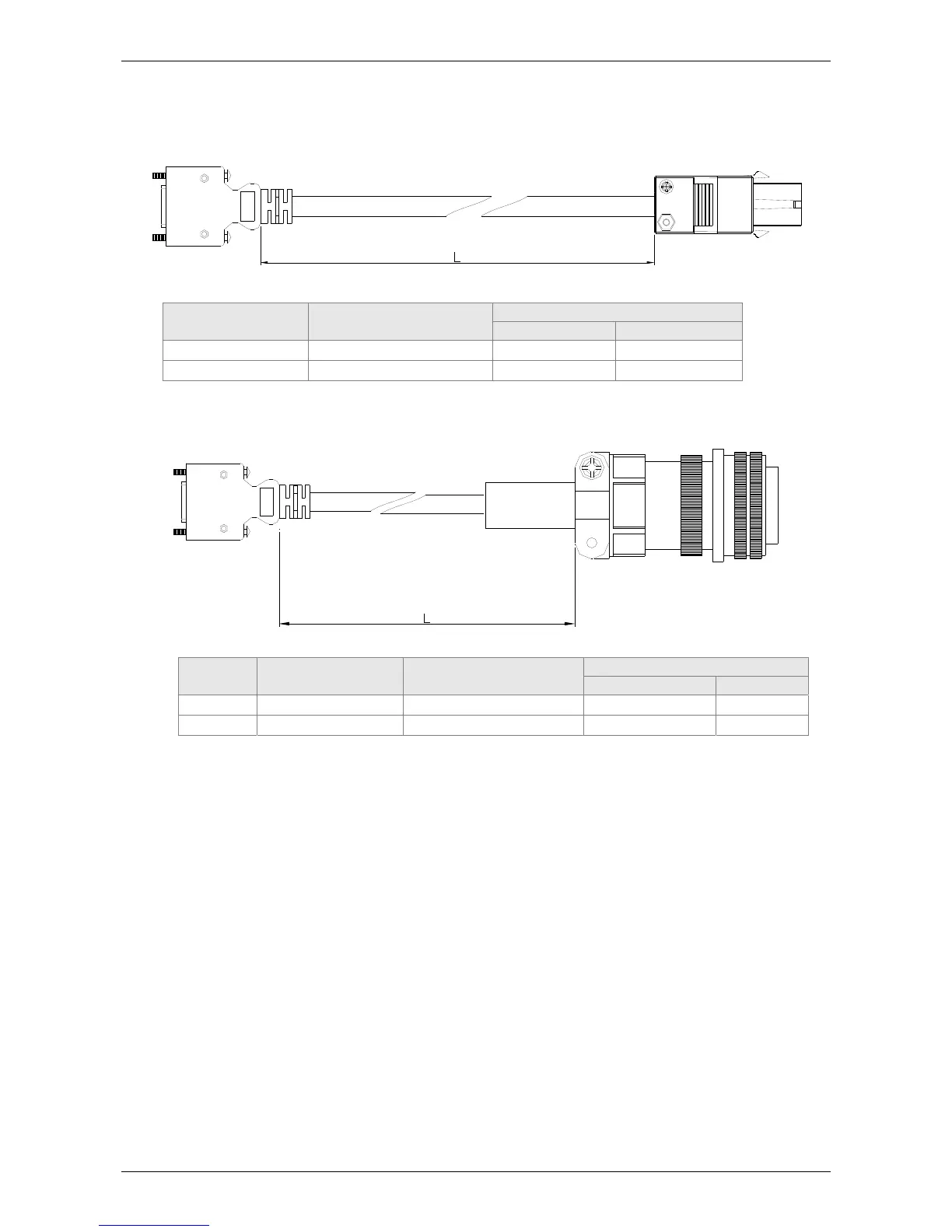

Incremental Type Encoder Cables
Delta Part Number: ASD-ABEN0003, ASD-ABEN0005
Title
Part No.
L
mm
inch
1 ASD-ABEN0003
3000
100
118
4
2 ASD-ABEN0005
5000
100
197
4
Delta Part Number: ASD-ABEN1003, ASD-ABEN1005
Title
Part No.
Straight
L
mm
inch
1 ASD-CAEN1003
3106A-20-29S
3000
100
118
4
2 ASD-CAEN1005
3106A-20-29S
5000
100
197
4
